Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer hose to the vehicle.
  2. Route the hose along the body wiring harness.
  3. Tape the washer hose to the body wiring harness with 3 wraps of electrical tape, every 100 mm (4 in).
  4. Roll carpet back into place along floor panel.
  5. Reinstall rear compartment anchors.
  6. Reinstall rear seat backs.
  7. Reinstall right front sill plate. Refer to INTERIOR TRIM  or INTERIOR TRIM
  8. Connect the washer hose connection at the liftgate.
  9. Connect the pass-though grommet the liftgate.

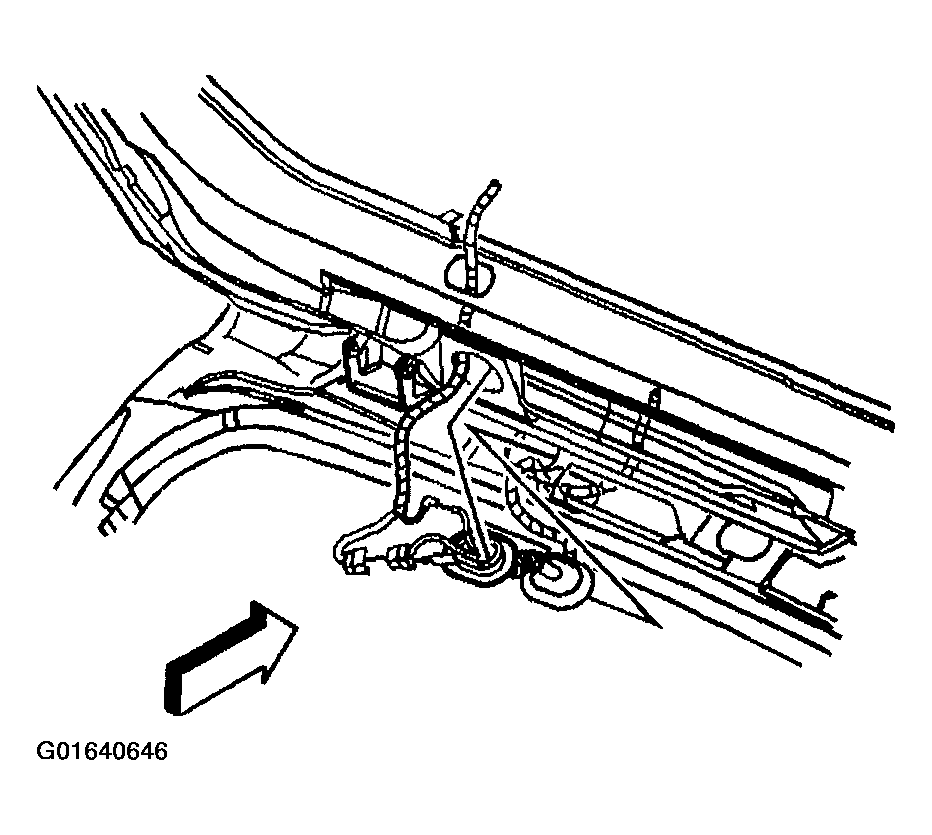

    Fig 1: Installing Washer Hose To Vehicle
    G01640646Courtesy of GENERAL MOTORS CORP.
  10. Install the left rear quarter upper trim panel. Refer to INTERIOR TRIM  in Interior Trim.
  11. Install the rear washer hose out though the bulkhead, and seat the grommet (1).
  12. Connect the rear washer hose connection (2) near the coolant tank.

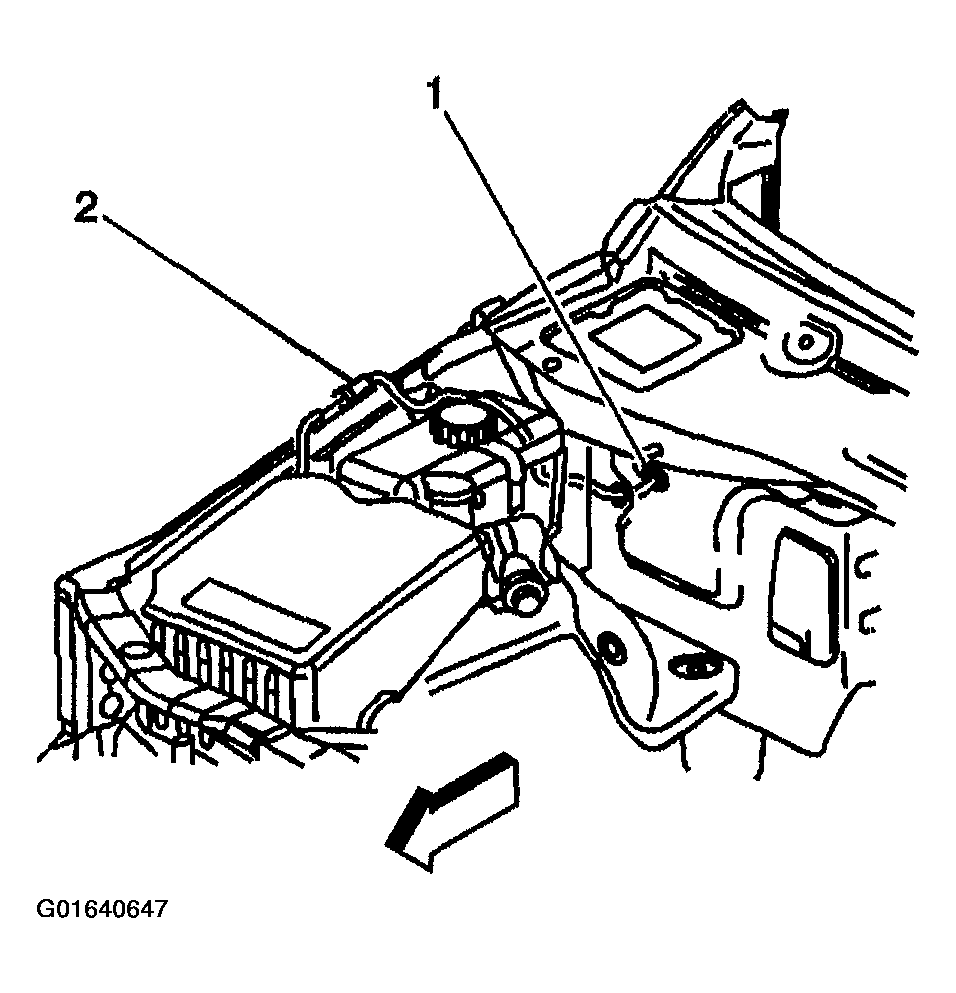

    Fig 2: Installing Rear Washer Hose Out Though Bulkhead
    G01640647Courtesy of GENERAL MOTORS CORP.
