Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the rear wiper hose connection (4) at the liftgate outer panel.
  2. Remove the liftgate interior trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Interior Trim.

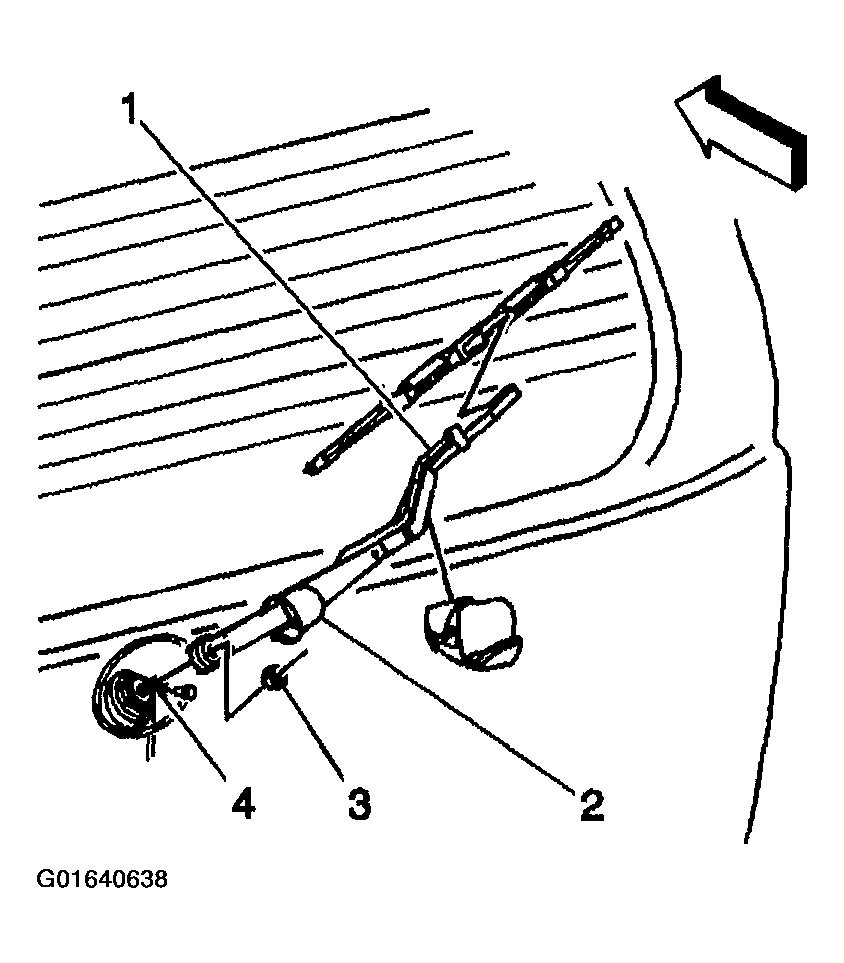

    Fig 1: Disconnecting Rear Wiper Hose Connection At Liftgate Outer Panel
    G01640638Courtesy of GENERAL MOTORS CORP.
  3. Remove the washer hose and grommet from the liftgate outer panel.
  4. Remove the liftgate wiring harness from the liftgate. Refer to WIRING HARNESS REPLACEMENT - LIFT GATE  in Body Rear End.
  5. Cut the rear washer hose ends where the hose ends break out of the harness.

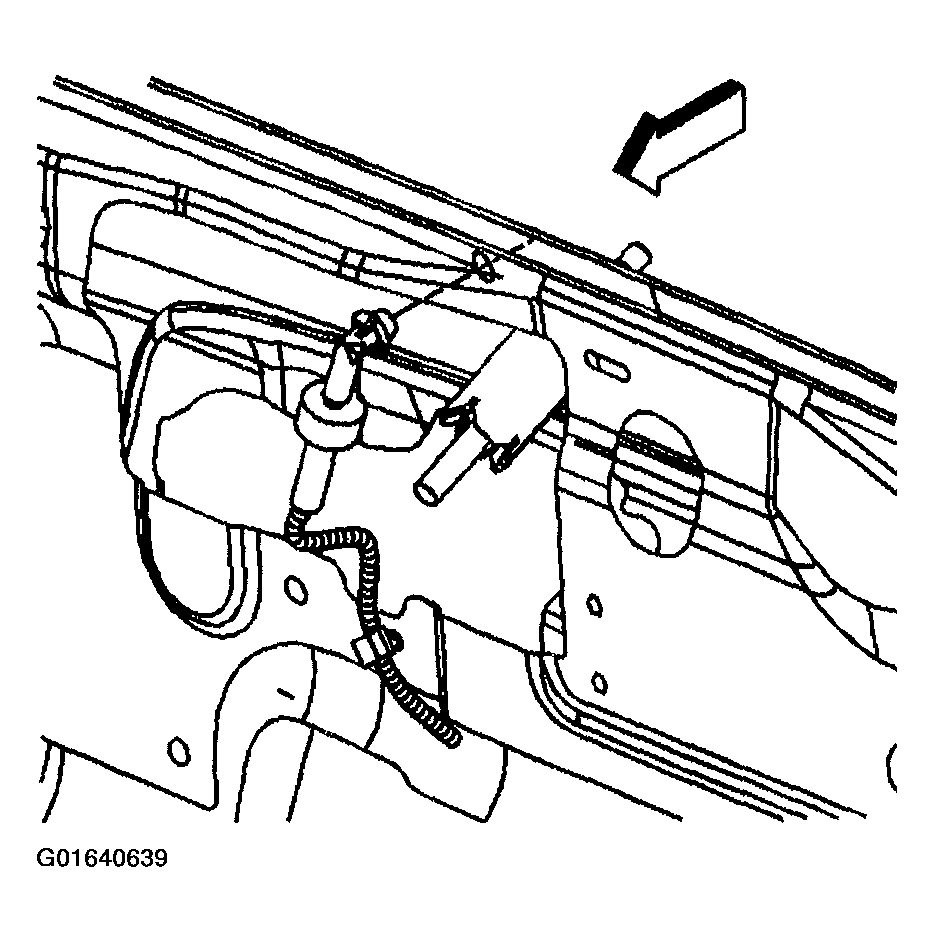

    Fig 2: Removing Washer Hose And Grommet From Liftgate Outer Panel
    G01640639Courtesy of GENERAL MOTORS CORP.
