Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the rear washer hose along the wiring harness.
  2. Tape the rear washer hose to the wiring harness with 3 wraps of electrical tape at points no more than 100 mm (4 in) apart from each other.
  3. Install the liftgate wiring harness to the liftgate. Refer to WIRING HARNESS REPLACEMENT - LIFT GATE  in Body Rear End.
  4. Install the rear washer hose and grommet to the liftgate outer panel.

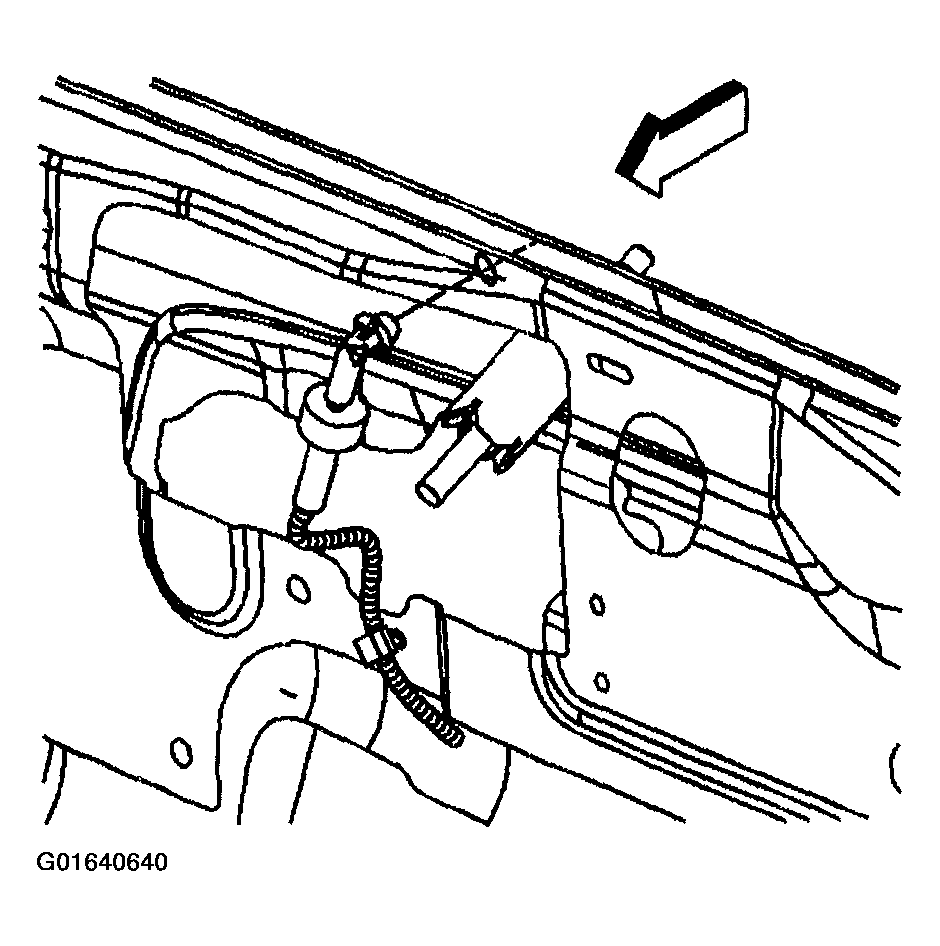

    Fig 1: Installing Rear Washer Hose And Grommet To Liftgate Outer Panel
    G01640640Courtesy of GENERAL MOTORS CORP.
  5. Install the liftgate interior trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  in Interior Trim.
  6. Connect the rear wiper hose connection (4) at the liftgate outer panel.

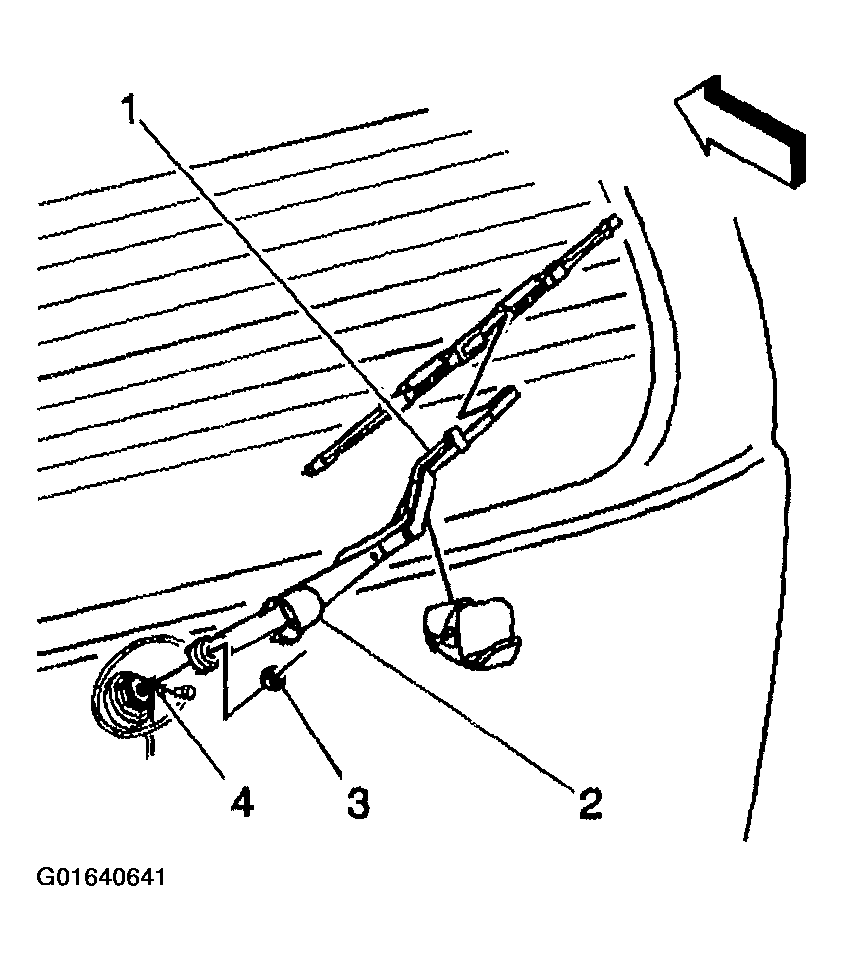

    Fig 2: Connecting Rear Wiper Hose Connection At Liftgate Outer Panel
    G01640641Courtesy of GENERAL MOTORS CORP.
