Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the grille. Refer to GRILLE REPLACEMENT (GMC)  or GRILLE REPLACEMENT (OLDSMOBILE)  or GRILLE REPLACEMENT (CHEVROLET)  in Exterior Trim.
  2. Remove the headlamp washer hose quick connect from the nozzle located on the bottom of the fluid reservoir.
  3. Remove the hose assembly from the vehicle.

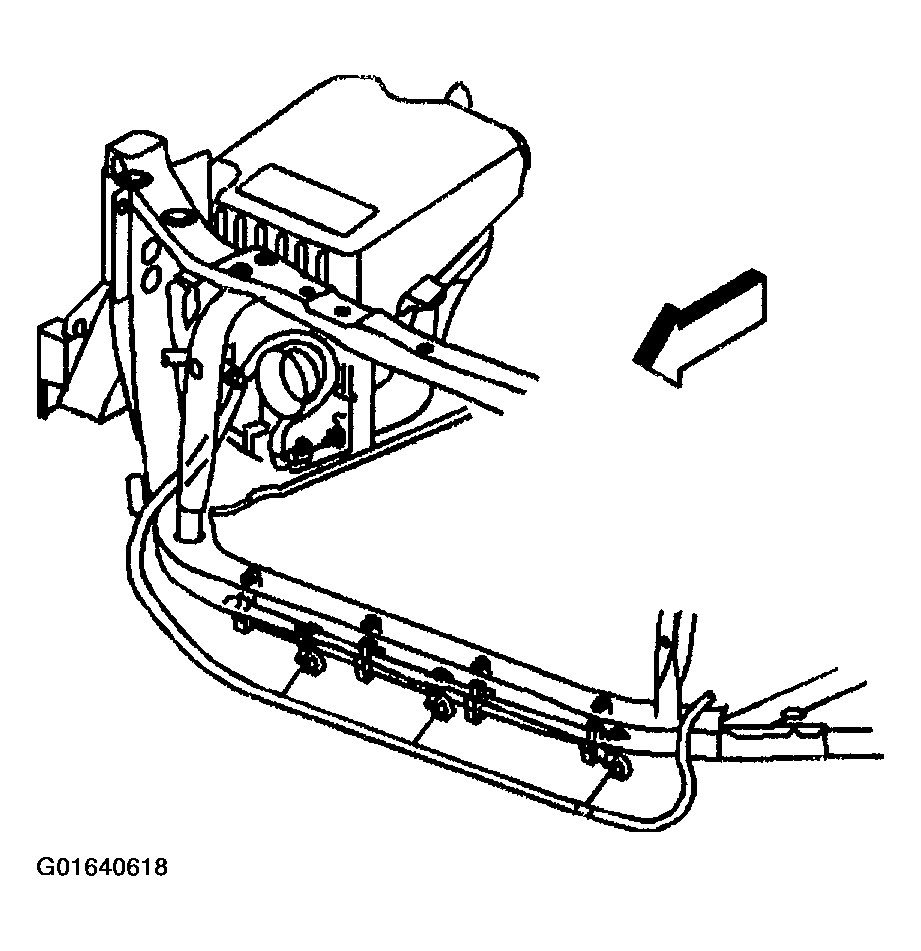

    Fig 1: Removing Headlamp Washer Hose Quick Connect From Nozzle
    G01640618Courtesy of GENERAL MOTORS CORP.
