Diagnostic System Check - Wiper/Washer

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

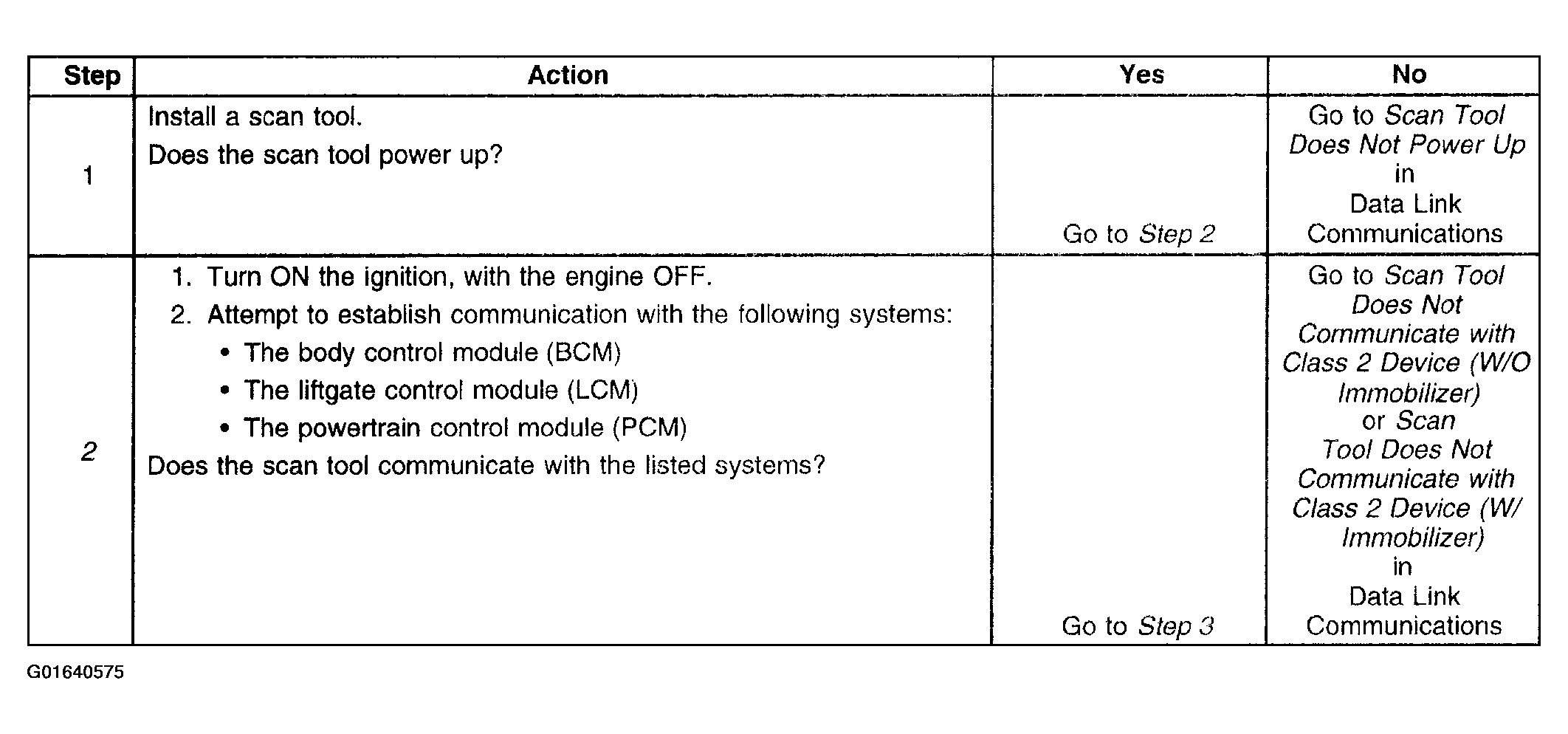

Fig 1: Wiper/Washer - Diagnostic Chart (1 Of 2)
G01640575Courtesy of GENERAL MOTORS CORP.

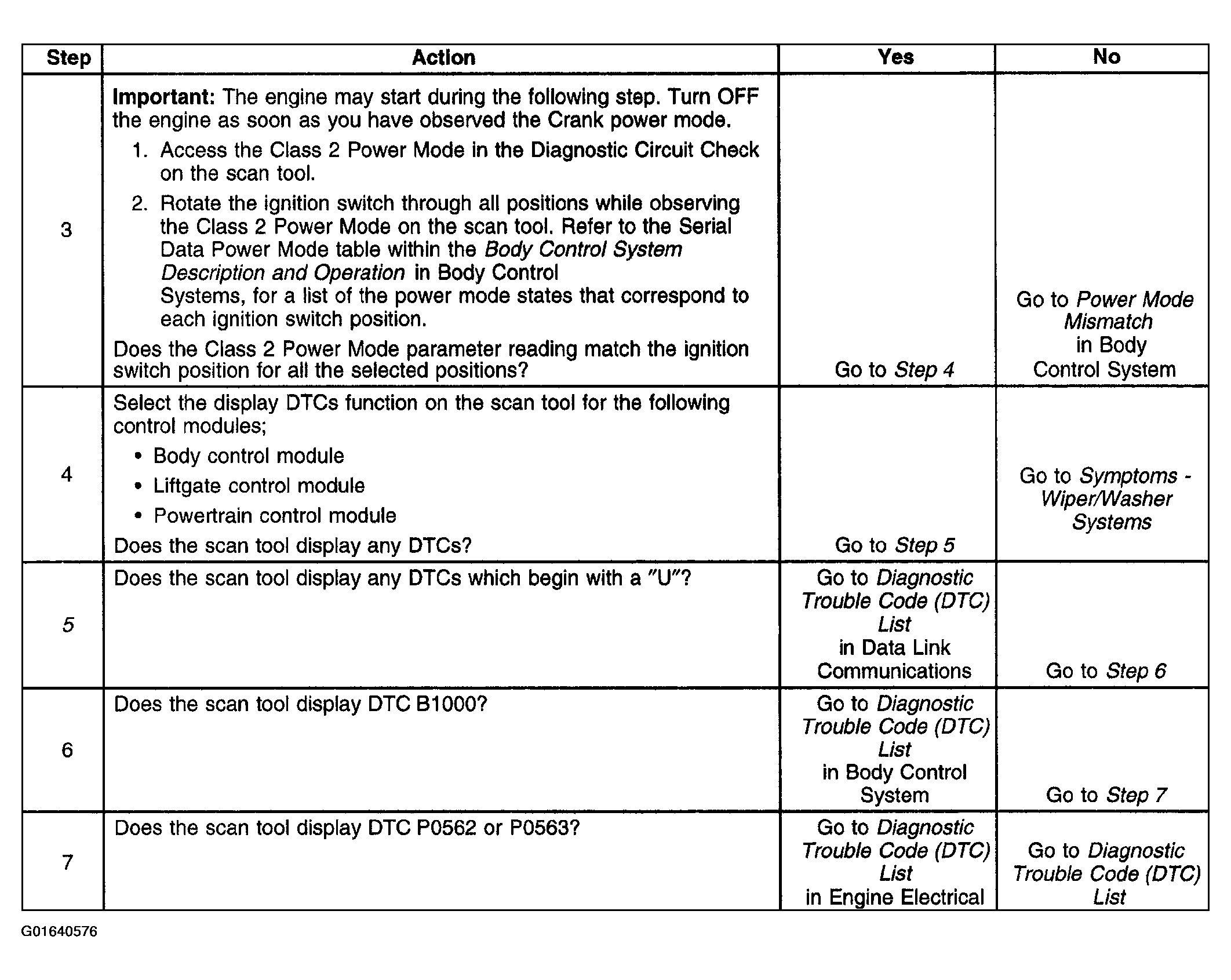

Fig 2: Wiper/Washer - Diagnostic Chart (2 Of 2)
G01640576Courtesy of GENERAL MOTORS CORP.
