B3810 or B3811

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: DTC B3810 - Diagnostic Chart
G01640585Courtesy of GENERAL MOTORS CORP.

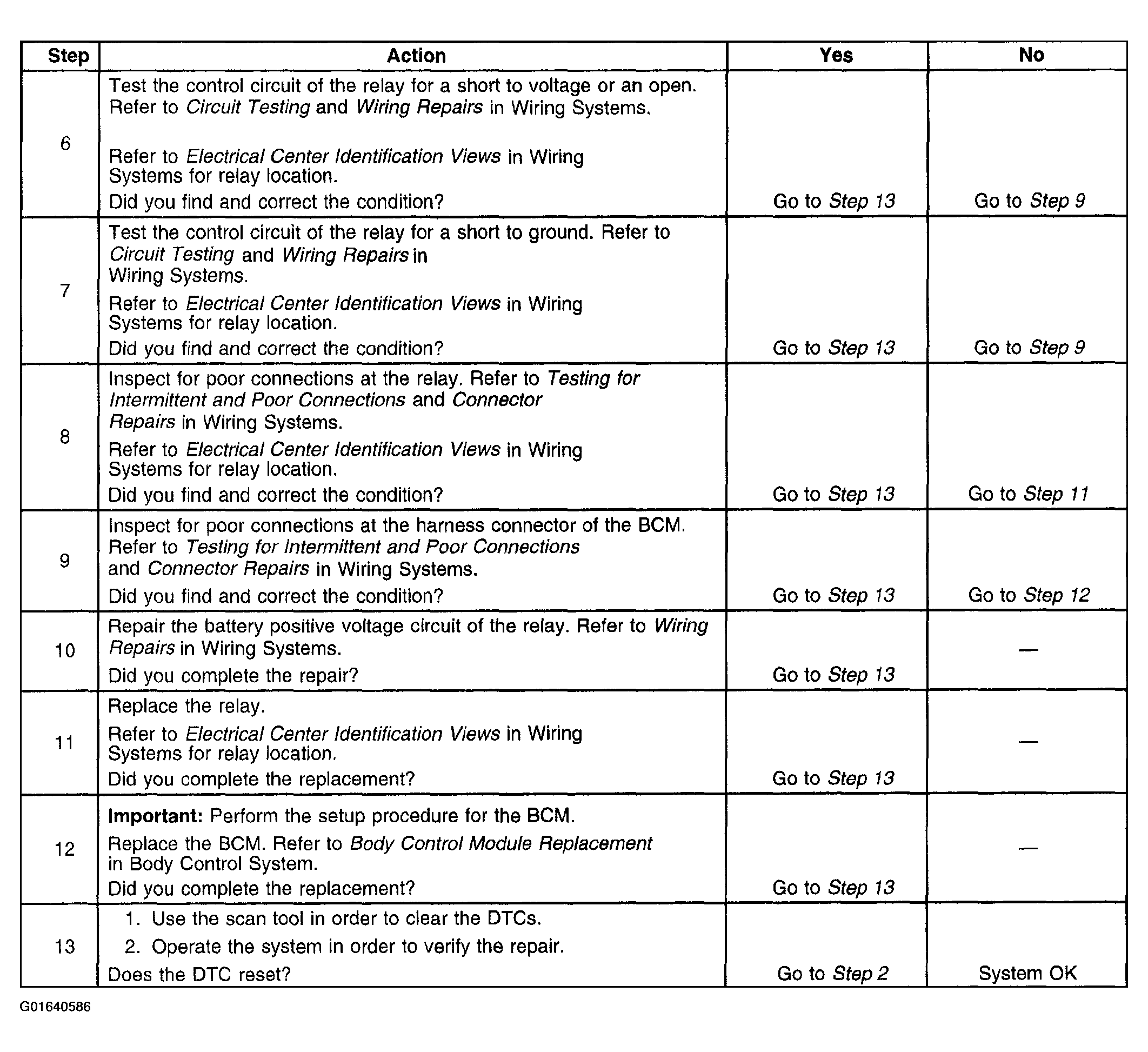

Fig 2: DTC B3811 - Diagnostic Chart
G01640586Courtesy of GENERAL MOTORS CORP.
