Rear Window Wiper/Washer Switch

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

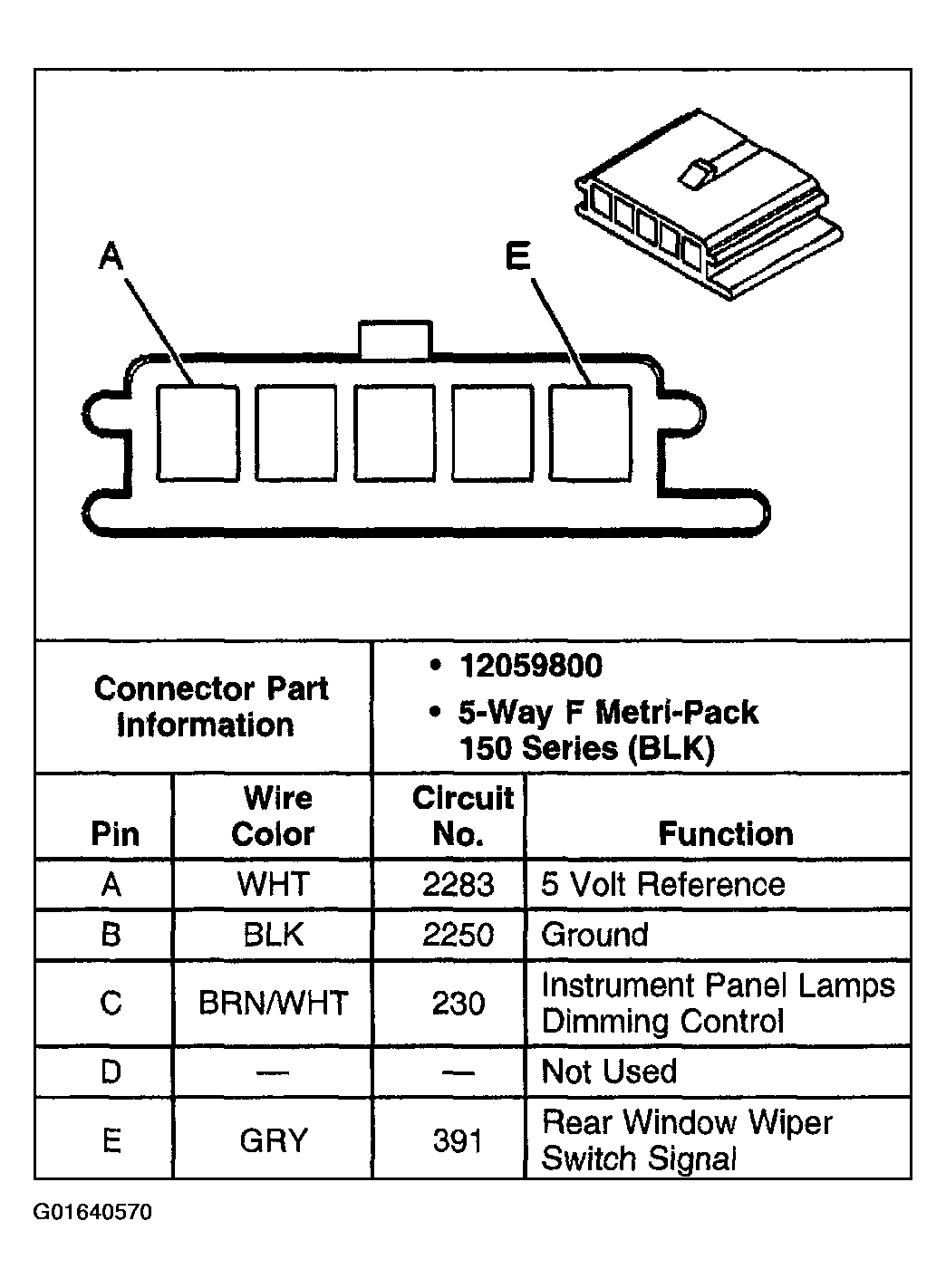

Fig 1: Identifying Rear Window Wiper/Washer Switch Connector
G01640570Courtesy of GENERAL MOTORS CORP.
