Interior Lights Schematics

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

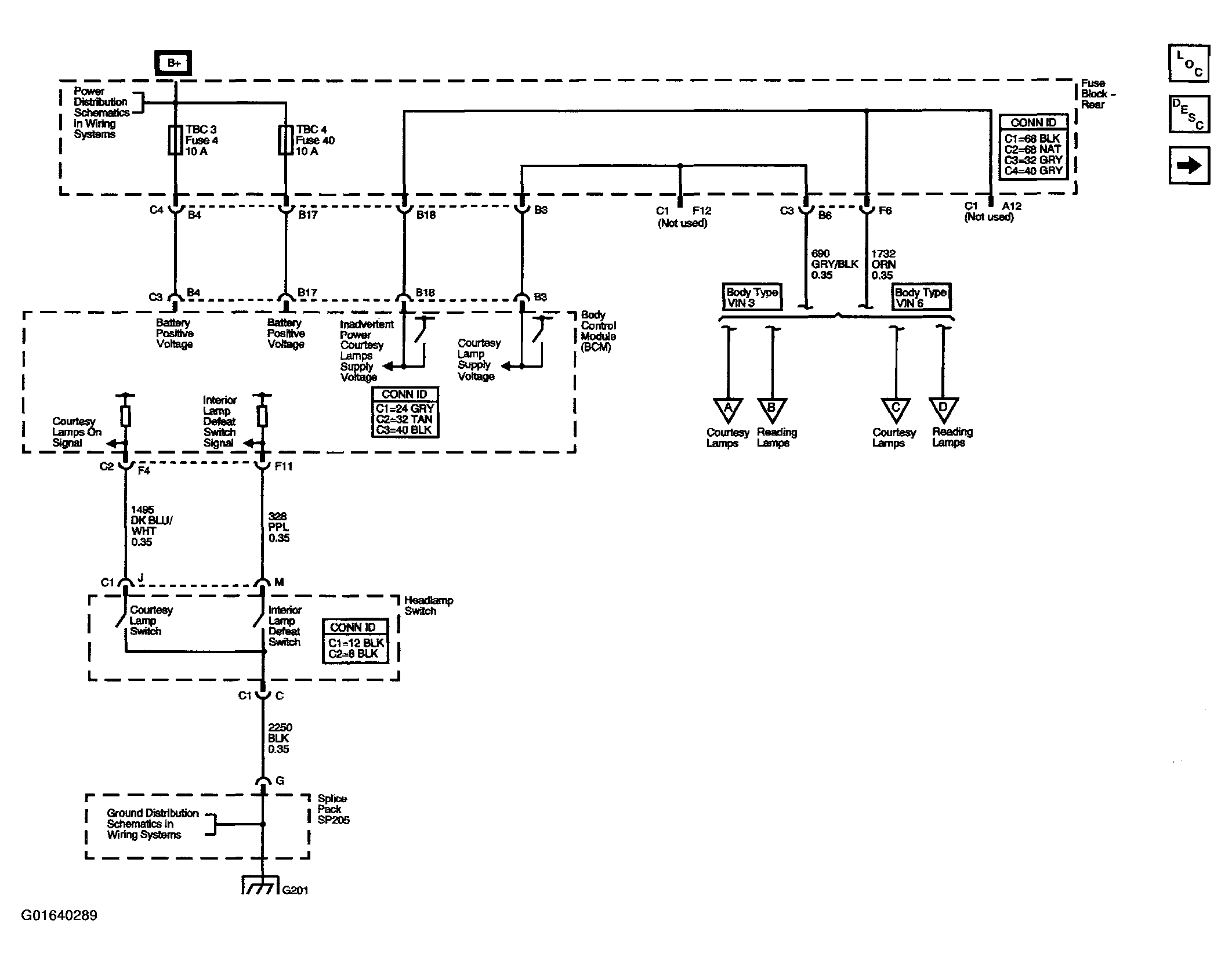

Fig 1: Interior Lights Schematic Diagram (Interior Lamps Controls)

Courtesy of GENERAL MOTORS CORP.

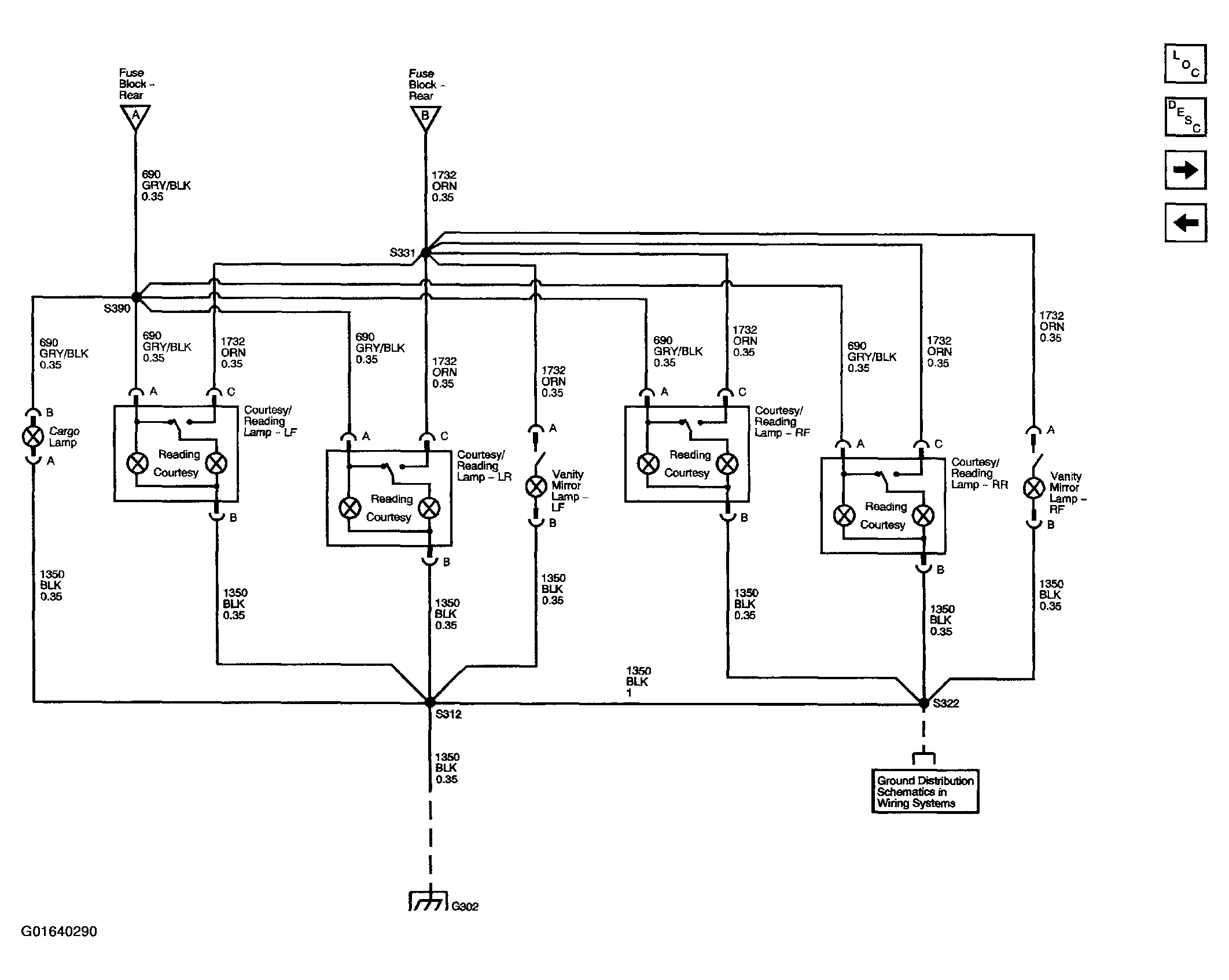

Fig 2: Interior Lights Schematic Diagram (Courtesy/Reading Lamps, Cargo Lamp, Vanity Mirror Lamps (Short Wheelbase, Body Type VIN 3))

Courtesy of GENERAL MOTORS CORP.

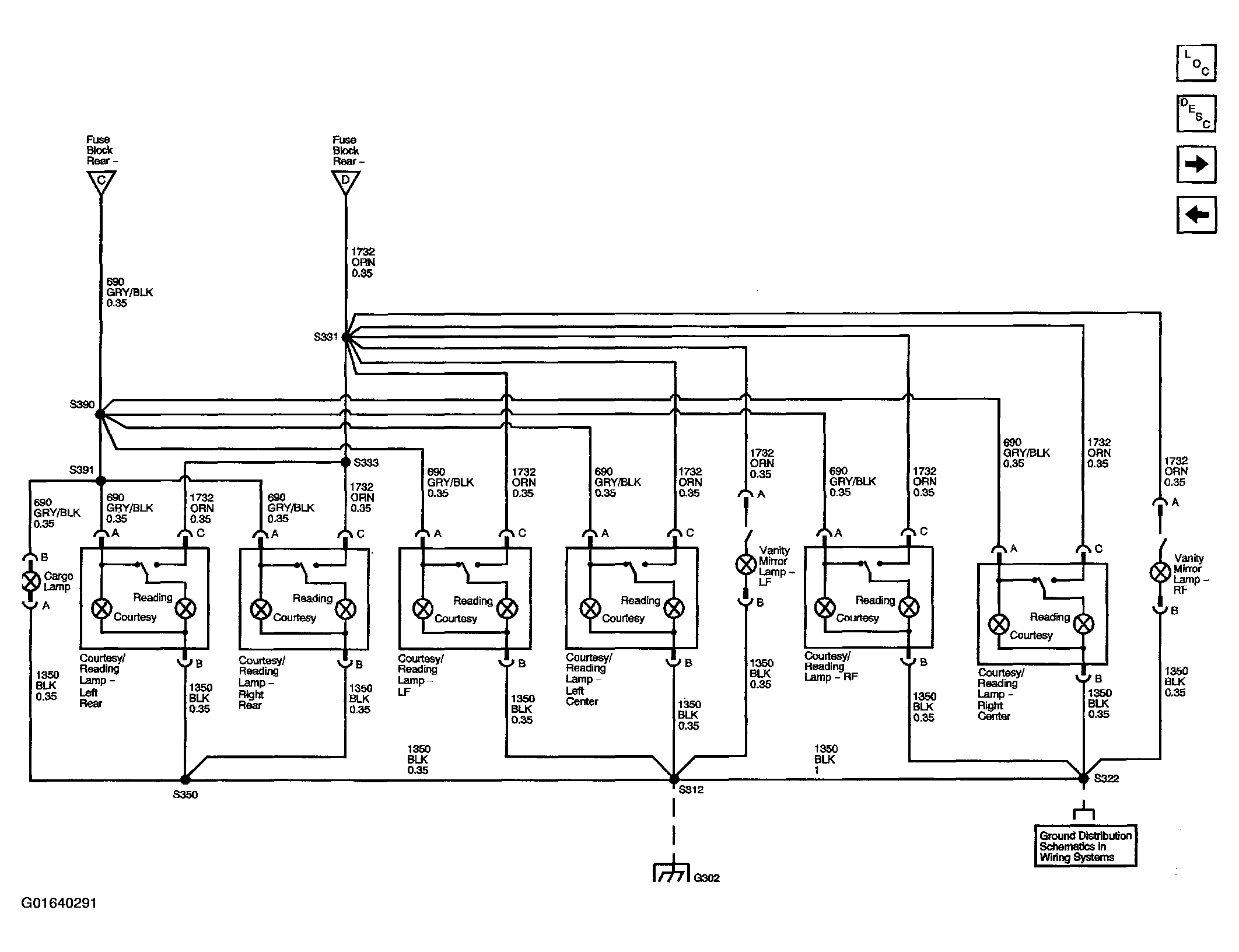

Fig 3: Interior Lights Schematic Diagram (Interior Lamps (Long Wheelbase, Body Type VIN 6))

Courtesy of GENERAL MOTORS CORP.

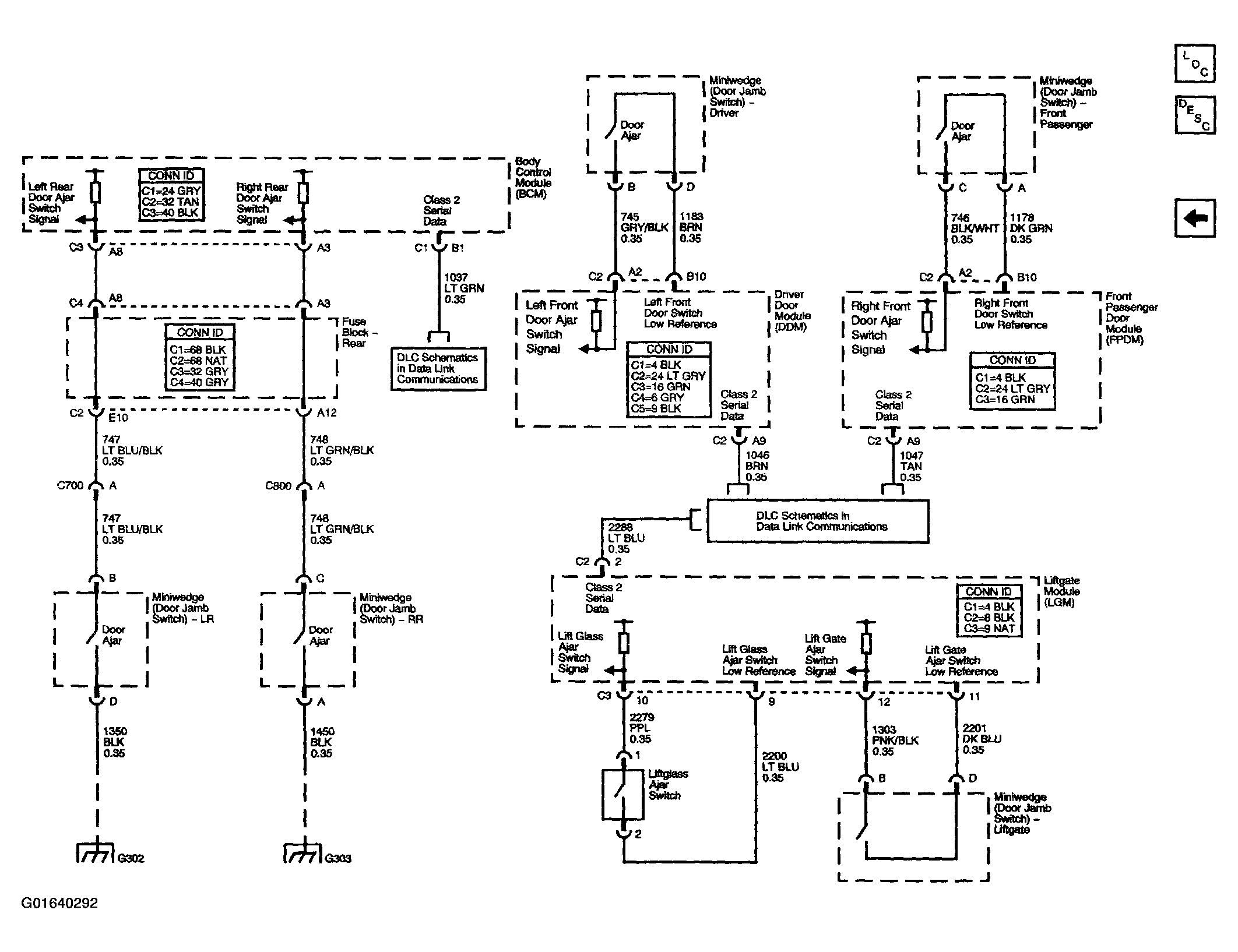

Fig 4: Interior Lights Schematic Diagram (Liftgate and Door Switches)

Courtesy of GENERAL MOTORS CORP.
