Headlights/Daytime Running Lights (DRL) Schematics

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

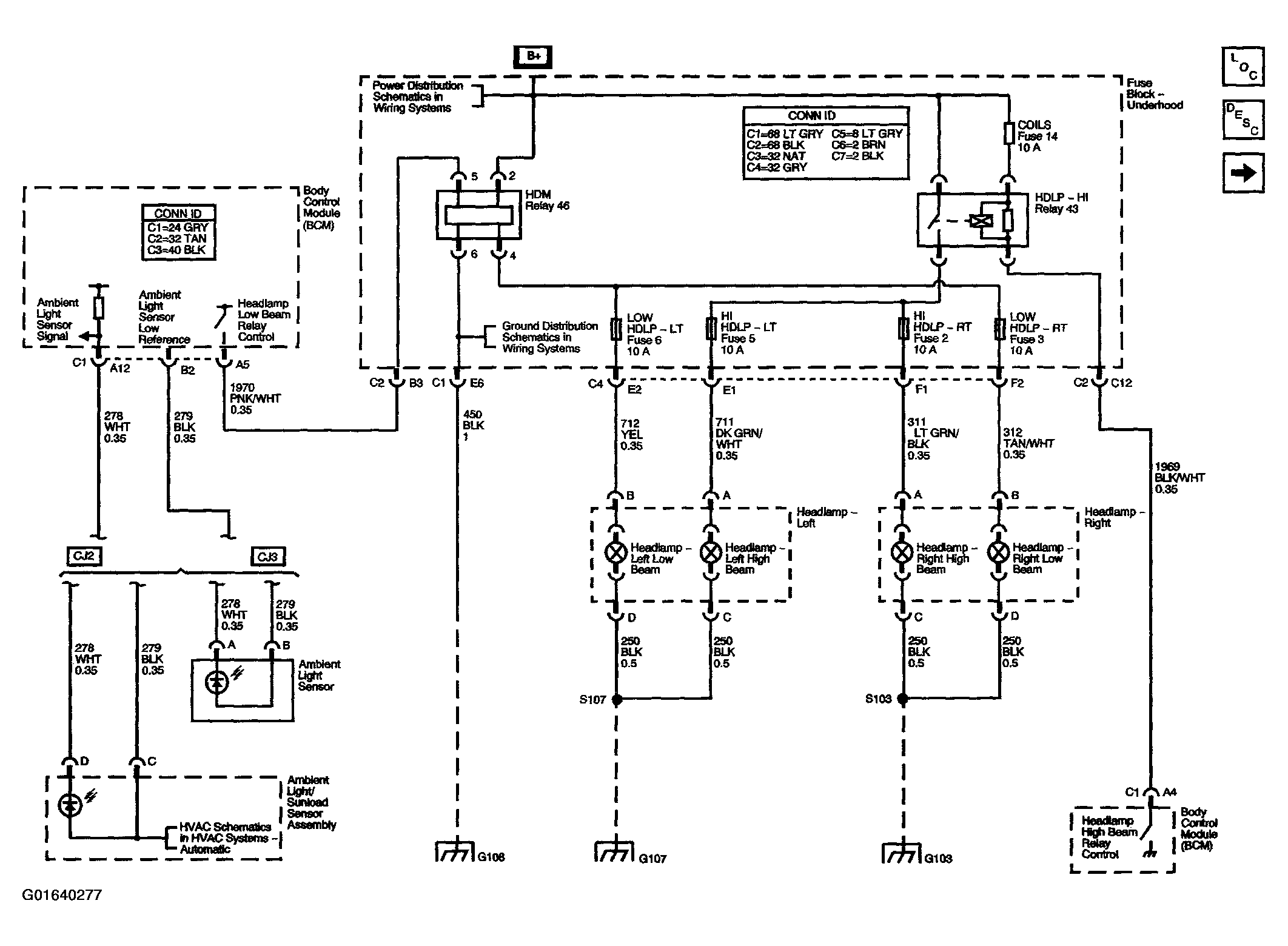

Fig 1: Headlights/Daytime Running Lights (DRL) Schematic Diagram (Headlamps)
G01640277Courtesy of GENERAL MOTORS CORP.

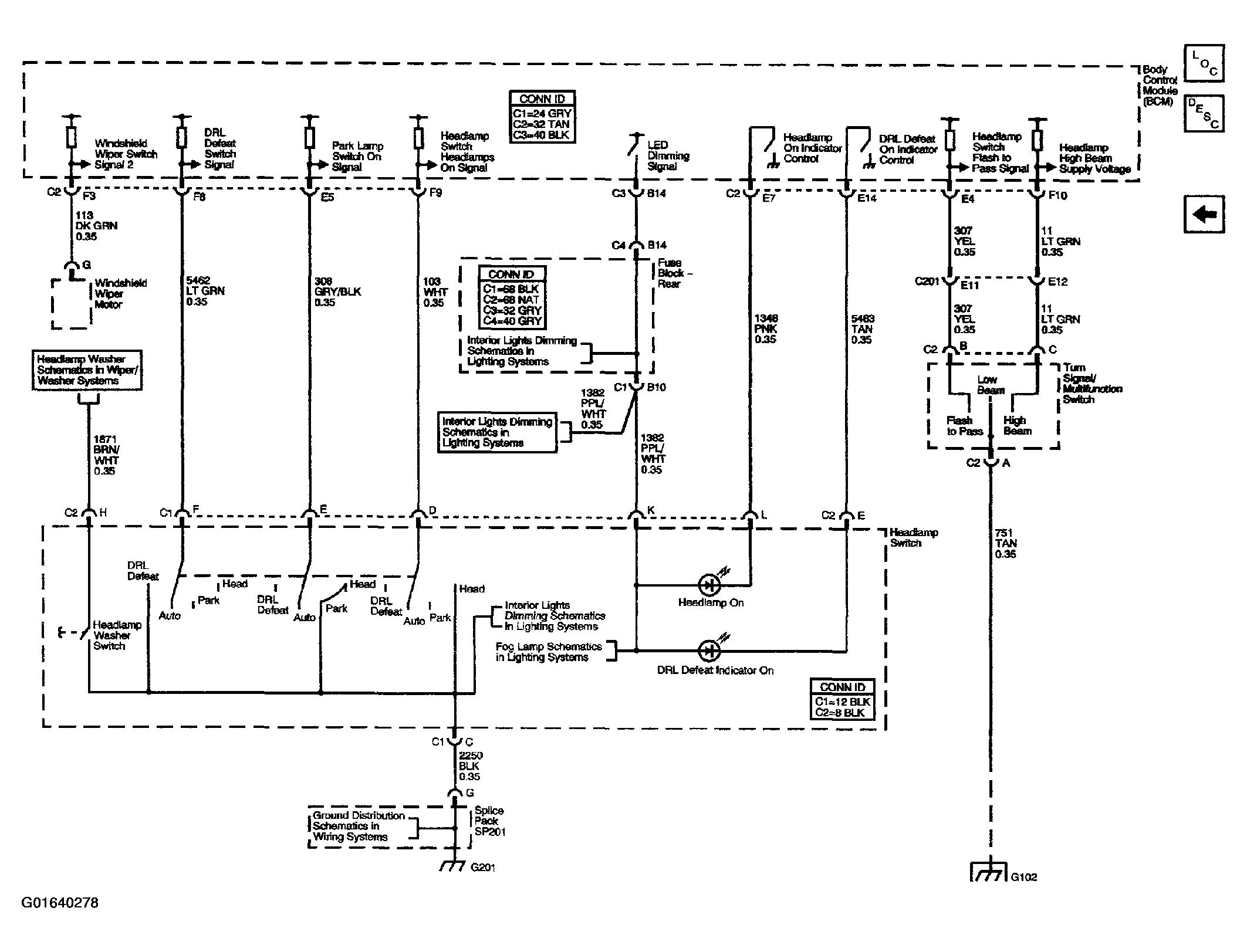

Fig 2: Headlights/Daytime Running Lights (DRL) Schematic Diagram (Headlamps Switch)
G01640278Courtesy of GENERAL MOTORS CORP.
