Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 screws that retain the tail lamp assembly to the body.
  2. Pull the assembly directly rearward in order to release the 2 locking pins.
  3. Disconnect the tail lamp electrical connector.
  4. Remove the lamp assembly from the vehicle.

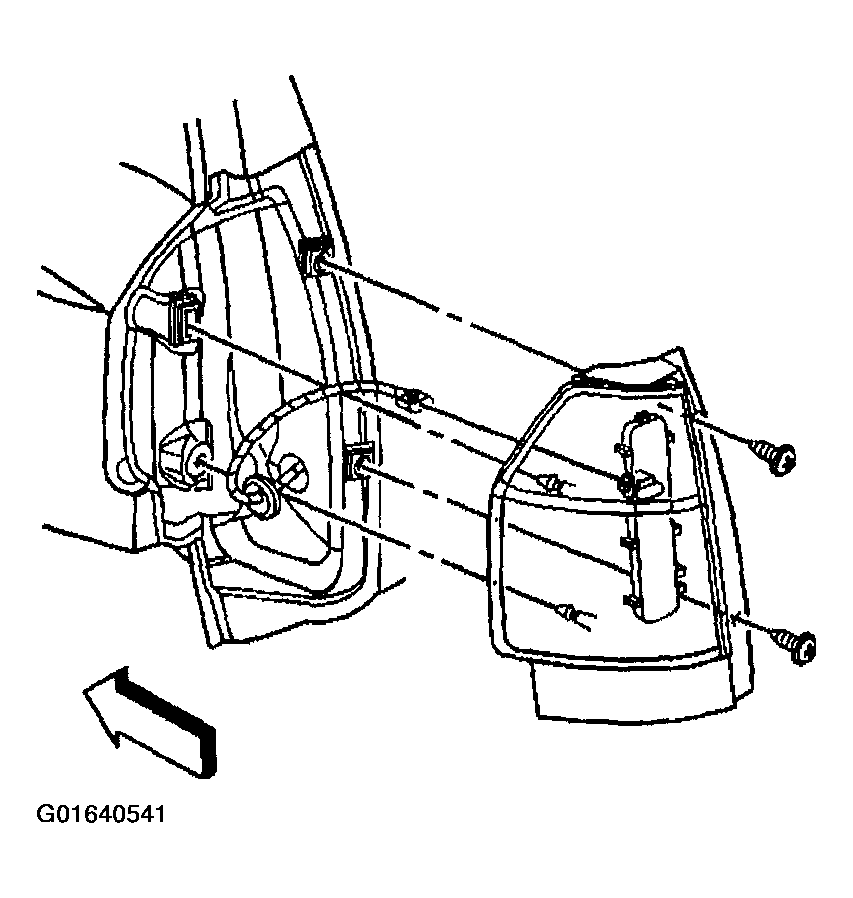

    Fig 1: Disconnecting Tail Lamp Electrical Connector
    G01640541Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 socket assembly retaining screws.
  6. Simultaneously release the bottom 4 locking tabs and partially remove the socket assembly.
  7. Release the top 2 locking tabs and remove the socket assembly from the tail lamp assembly.

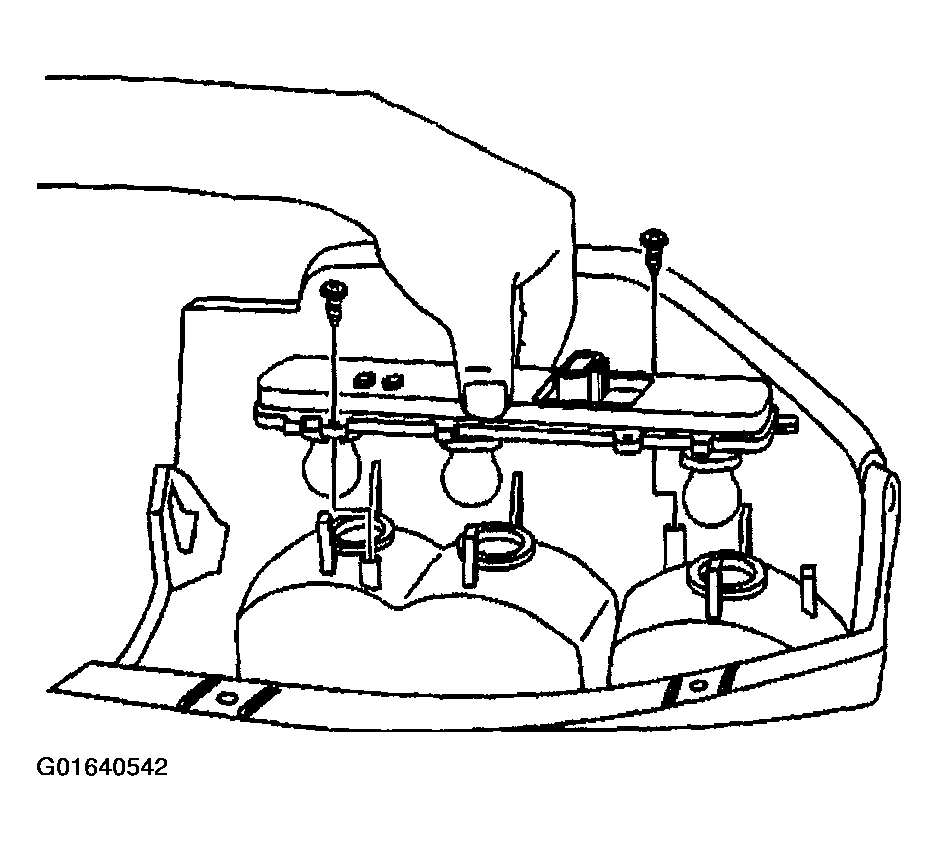

    Fig 2: Removing Socket Assembly From Tail Lamp Assembly
    G01640542Courtesy of GENERAL MOTORS CORP.
