Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tail lamp assembly. Refer to TAIL LAMP REPLACEMENT   .
  2. Place the tail lamp assembly onto a clean prepared surface.
  3. Pull the bulb straight out in order to remove the tail lamp bulb from the socket assembly.

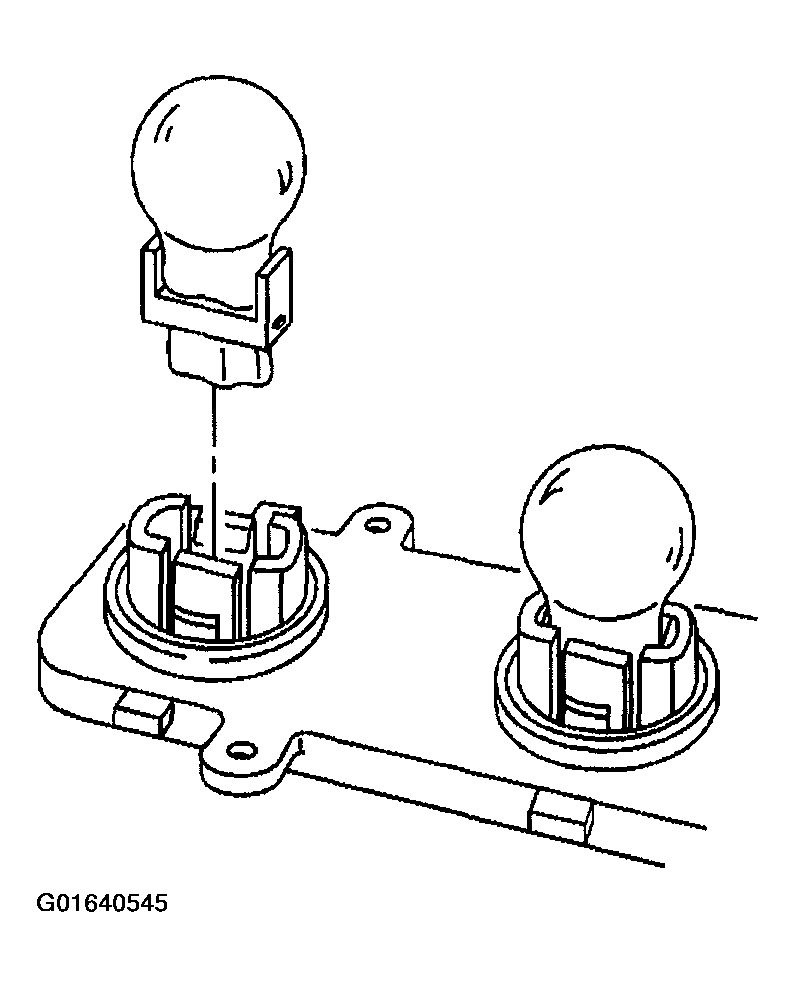

    Fig 1: Removing Tail Lamp Bulb From Socket Assembly
    G01640545Courtesy of GENERAL MOTORS CORP.
