Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side marker (2) and cornering lamp (1) sockets from the side marker.

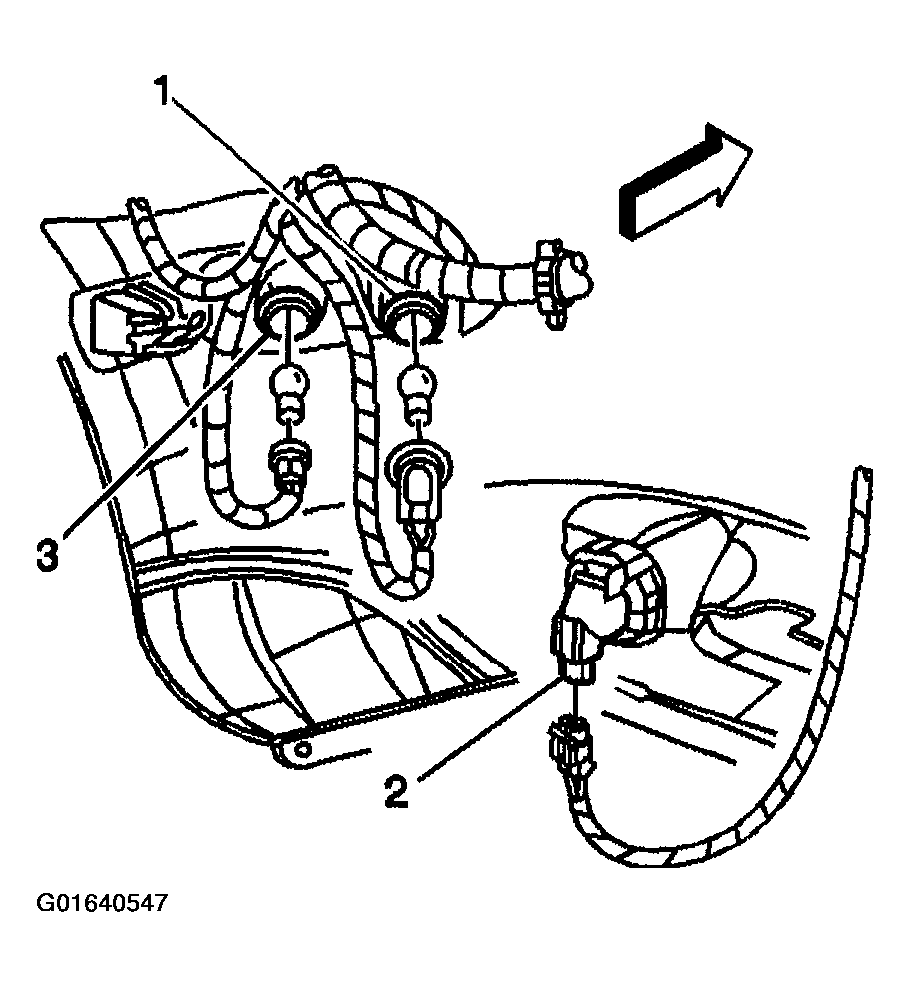

    Fig 1: Removing Side Marker & Cornering Lamp Sockets From Side Marker
    G01640547Courtesy of GENERAL MOTORS CORP.
  2. Release the side marker retaining ear (1) from the fascia.
  3. Remove the side marker retaining stem (2) from the fascia.
  4. Remove the side marker from the fascia.
    Fig 2: Removing Side Marker From Fascia
    G01640548Courtesy of GENERAL MOTORS CORP.
