Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side marker to the fascia.
  2. Install the side marker retaining stem (2) to the fascia.
  3. Seat the side marker retaining ear (1) to the fascia.
    Fig 1: Installing Side Marker To Fascia
    G01640549Courtesy of GENERAL MOTORS CORP.

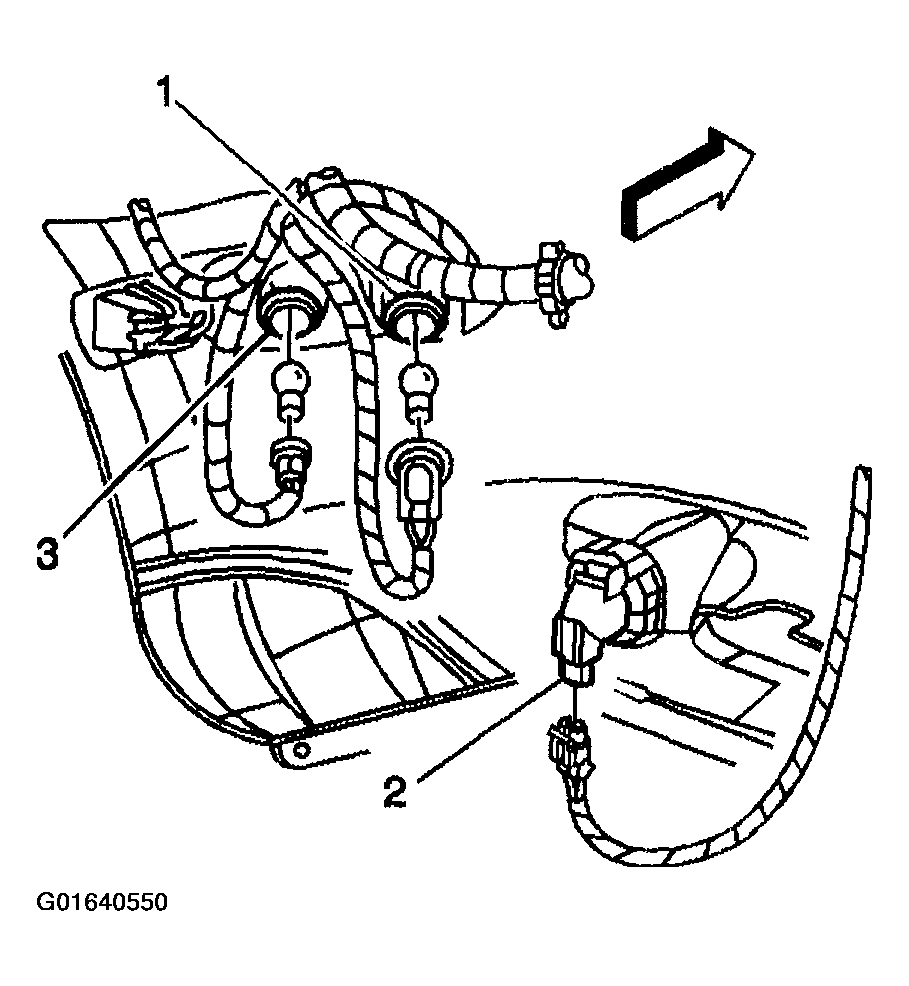

  4. Install the side marker (2) and cornering lamp (1) sockets to the side marker.
    Fig 2: Installing Side Marker & Cornering Lamp Sockets To Side Marker
    G01640550Courtesy of GENERAL MOTORS CORP.
