Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the 2 screws that retain the license lamp lens to the liftgate.

Fig 1: Removing Screws That Retain License Lamp Lens To Liftgate
Courtesy of GENERAL MOTORS CORP.
Remove the license lamp lens from the liftgate.
Remove the bulb (1) from the socket.

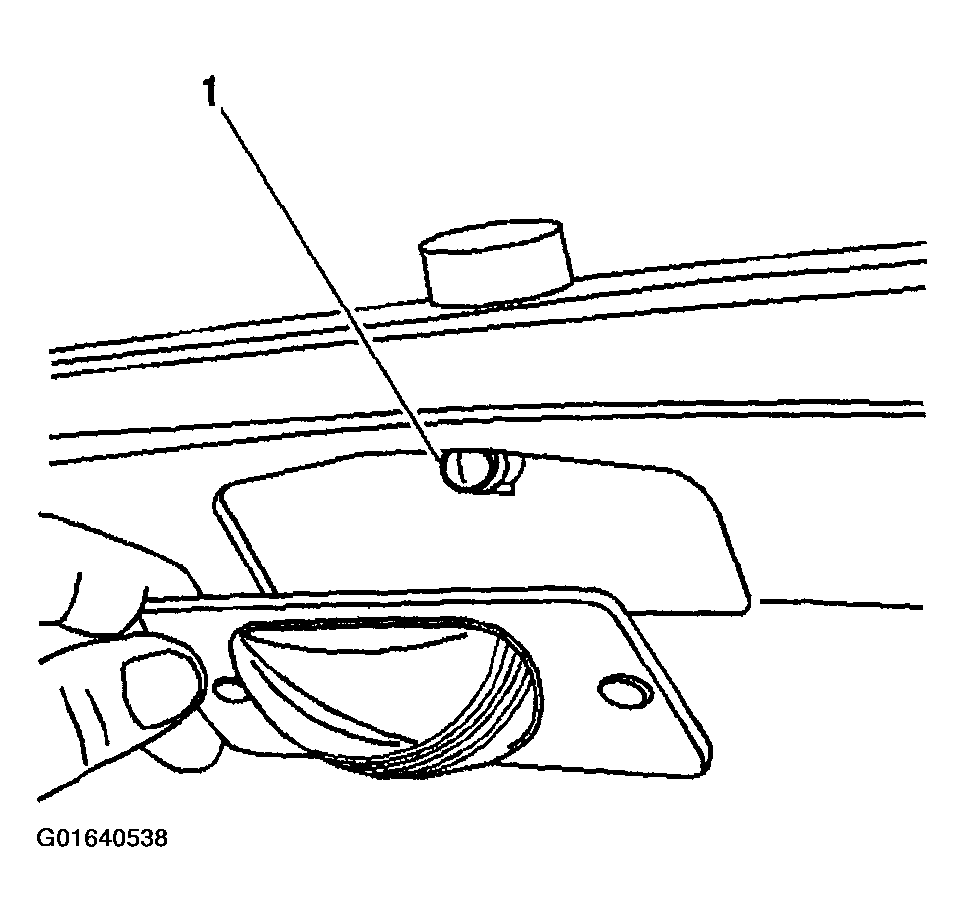

Fig 2: Removing License Lamp Bulb From Socket
Courtesy of GENERAL MOTORS CORP.
