Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Lower the rear portion of the headliner by releasing the 2 headliner retaining pins.
  3. Disconnect the high mount stoplamp electrical connector (2).
  4. Remove the grommet (1) from the body
    NOTE: Do NOT raise the liftgate while the liftgate glass is open. This can result in damage to the high-mounted stoplamp, the liftgate hinges, or the liftgate glass.
  5. Close the liftgate.
  6. Open the liftgate window.

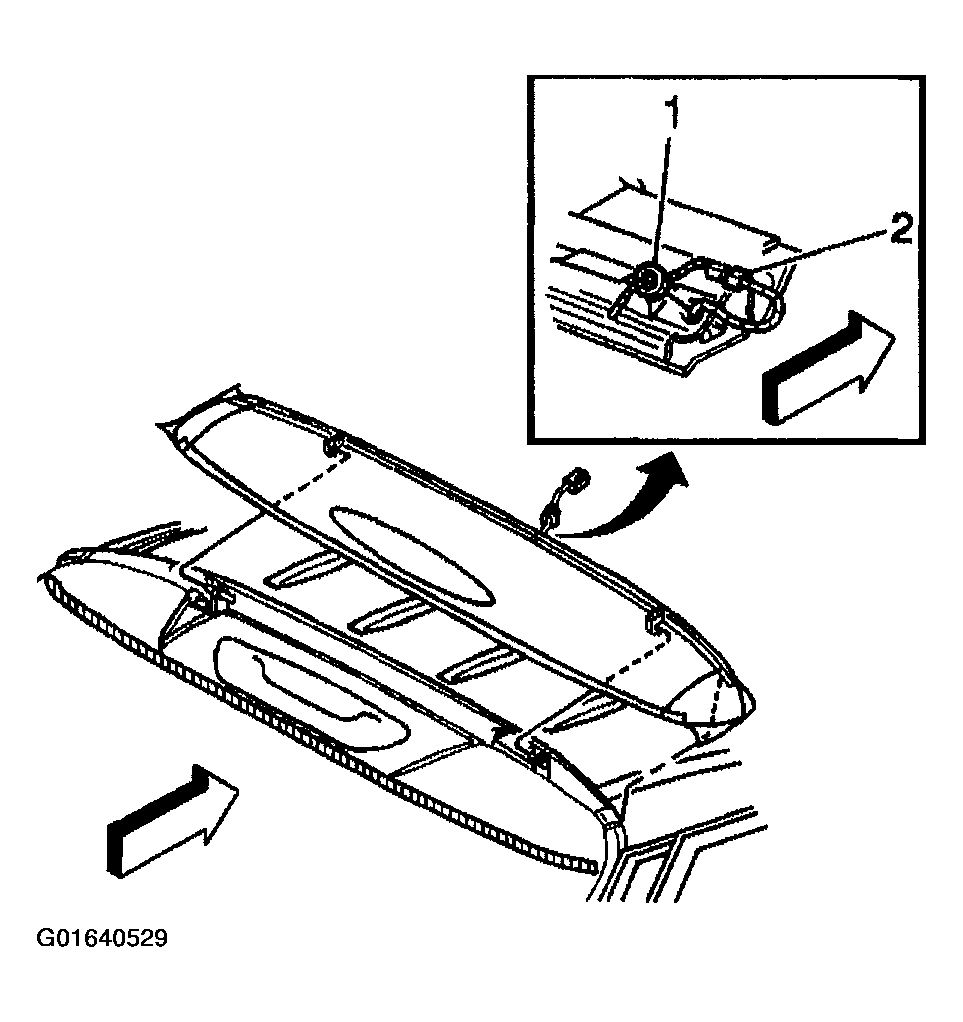

    Fig 1: Removing Grommet From Body
    G01640529Courtesy of GENERAL MOTORS CORP.
  7. Remove the 2 screws that retain the high mount stoplamp to the lift gate window reveal molding.
  8. Remove the high mount stoplamp from the vehicle.

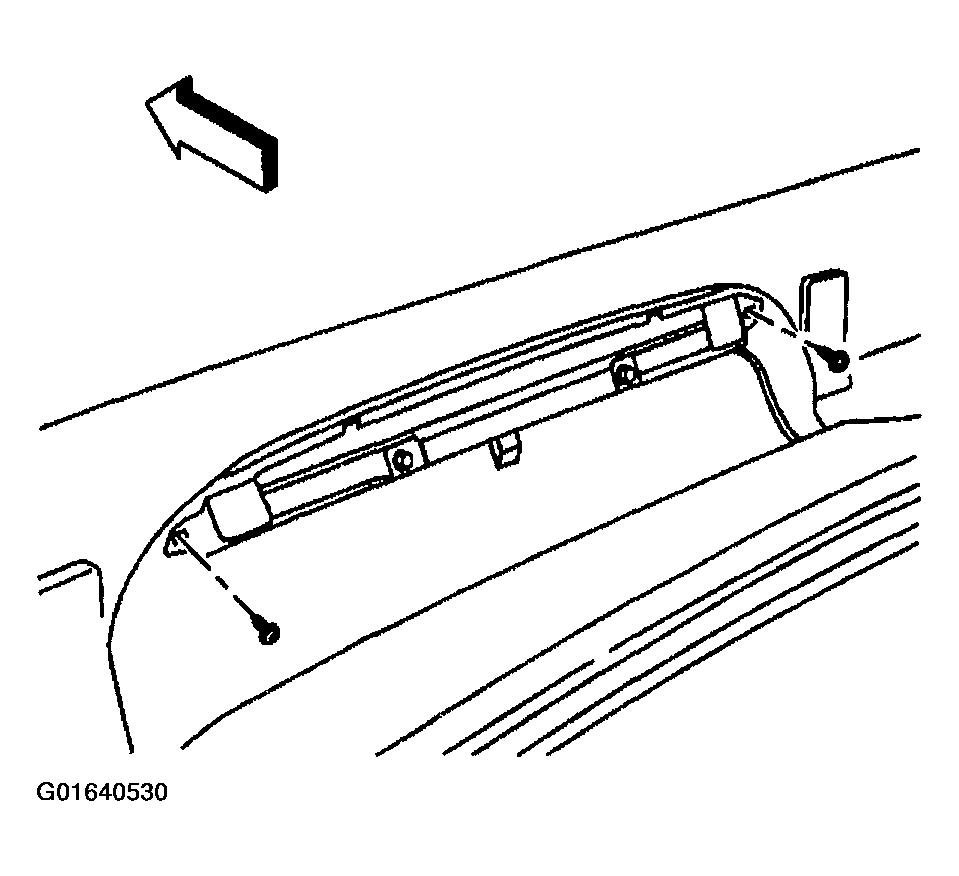

    Fig 2: Removing High Mount Stoplamp From Vehicle
    G01640530Courtesy of GENERAL MOTORS CORP.
