Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the grille. Refer to GRILLE REPLACEMENT (GMC)  or GRILLE REPLACEMENT (OLDSMOBILE)  or GRILLE REPLACEMENT (CHEVROLET)  in Exterior Trim.
  3. Pull up on the retaining tabs (1) in order to remove the headlamp assembly from the headlamp panel.
  4. Disconnect the headlamp leveling electrical connector from the motor/actuator if equipped.
  5. Disconnect the headlamp electrical connector (2) from the headlamp assembly.
  6. Remove the side marker socket (4) from the headlamp assembly.
  7. Remove the park/turn socket (3) from the headlamp assembly.
  8. Remove the headlamp assembly from the headlamp panel.

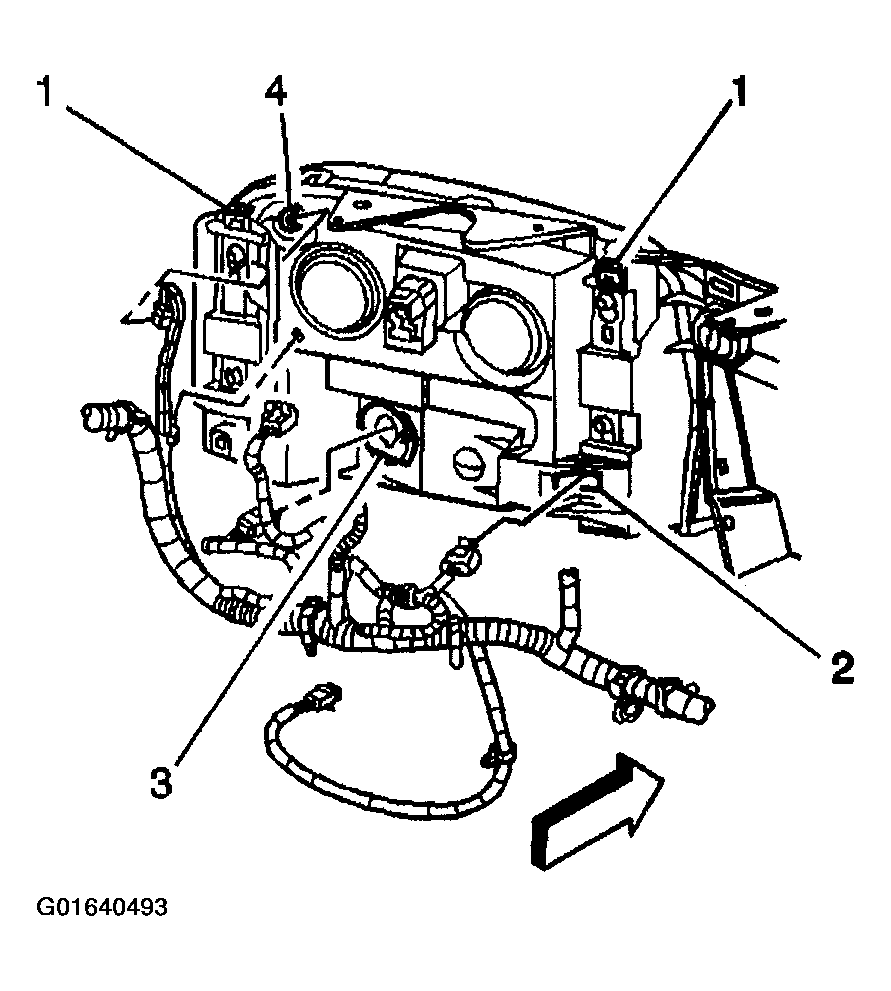

    Fig 1: Removing Headlamp Assembly From Headlamp Panel
    G01640493Courtesy of GENERAL MOTORS CORP.
