Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the flasher to the insulator panel.
  2. Connect the electrical connector to the flasher.
  3. Install the flasher retaining bracket to the insulator panel.
  4. Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT  in Instrument Panel, Gages and Console.

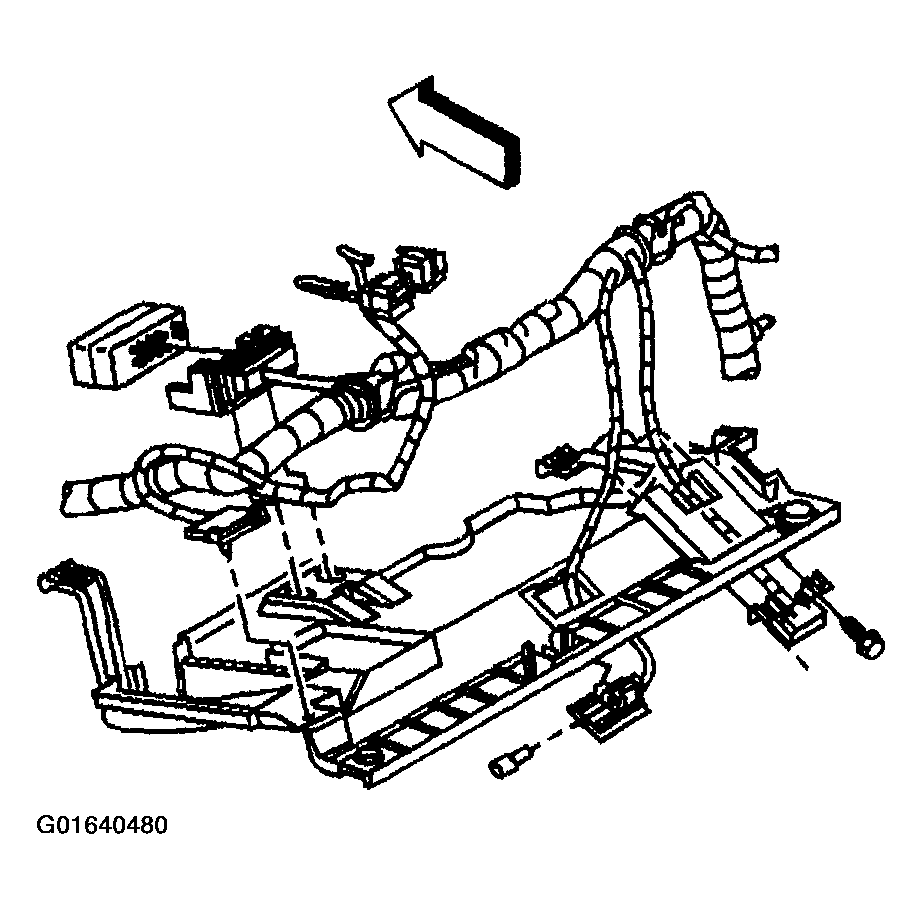

    Fig 1: Installing Flasher To Insulator Panel
    G01640480Courtesy of GENERAL MOTORS CORP.
