Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fog lamp bulb and socket. Refer to FOG LAMP BULB REPLACEMENT - FRONT   .

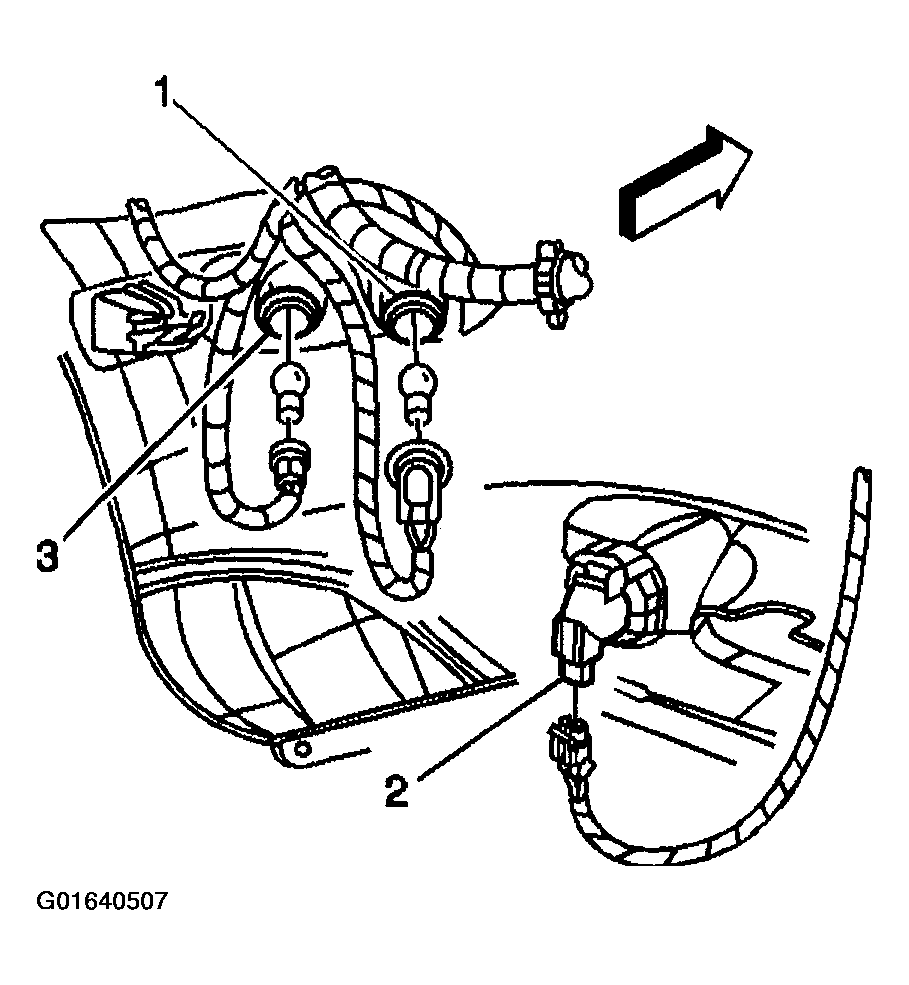

    Fig 1: Removing Fog Lamp Bulb & Socket
    G01640507Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The fog lamp bracket is permanently attached to the fascia. Do not remove the fog lamp bracket from the fascia, replace only the fog lamp.
  2. Remove the 2 push pins (1) that retain the fog lamp to the fog lamp bracket.
  3. Remove the aim adjustment screw (2) from the fog lamp.
  4. Remove the fog lamp from the fog lamp bracket.

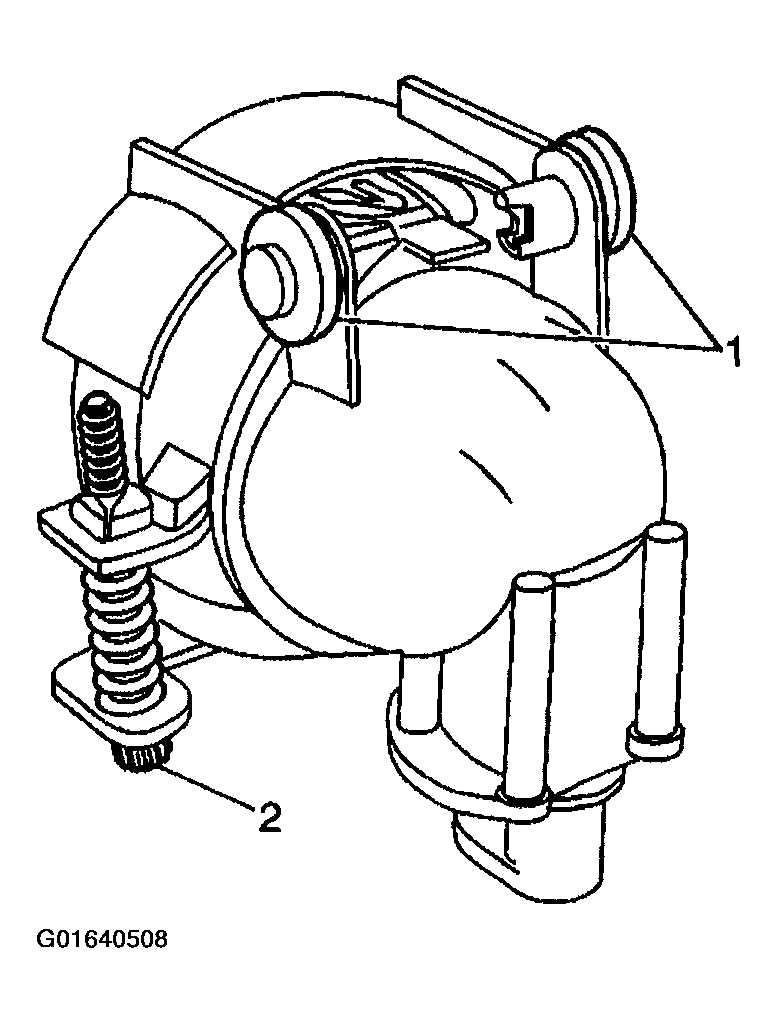

    Fig 2: Removing Fog Lamp From Fog Lamp Bracket
    G01640508Courtesy of GENERAL MOTORS CORP.
