Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Position the fog lamp to the fog lamp bracket.
Install the 2 push pins (1) that retain the fog lamp to the fog lamp bracket.
Install the aim adjustment screw (2) to the fog lamp.

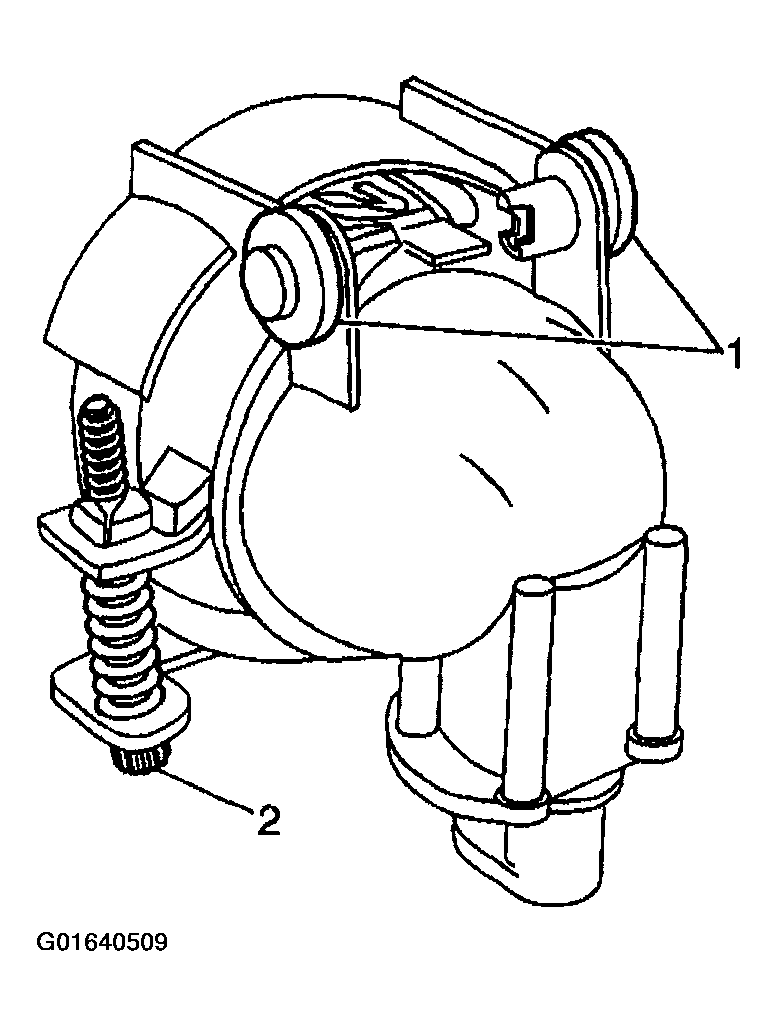

Fig 1: Installing Fog Lamp To Fog Lamp Bracket
Courtesy of GENERAL MOTORS CORP.
Install the fog lamp bulb and socket. Refer to FOG LAMP BULB REPLACEMENT - FRONT .
Aim the fog lamp(s). Refer to FOG LAMP AIMING PROCEDURE

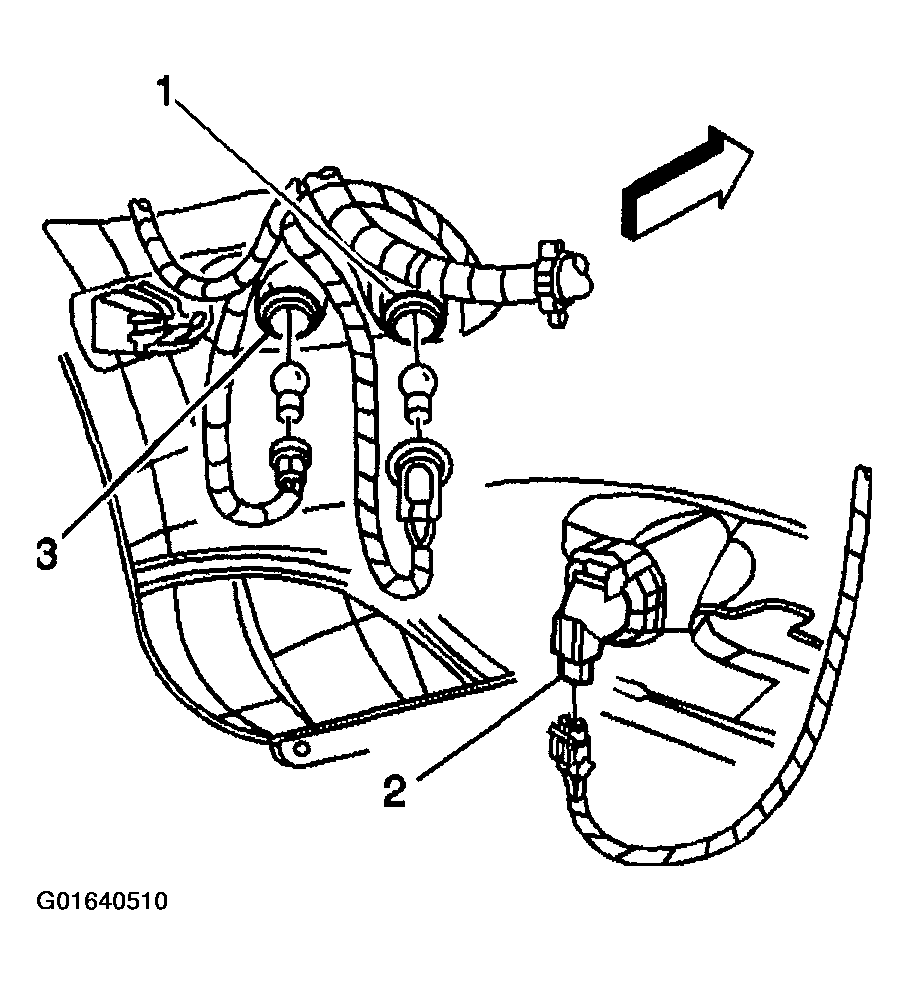

Fig 2: Installing Fog Lamp Bulb & Socket
Courtesy of GENERAL MOTORS CORP.
