Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fog lamp bulb and socket. Refer to FOG LAMP BULB REPLACEMENT - FRONT   .
  2. Remove the 3 nuts that retain the fog lamp to the fascia (2).
  3. Remove the fog lamp from the fascia.

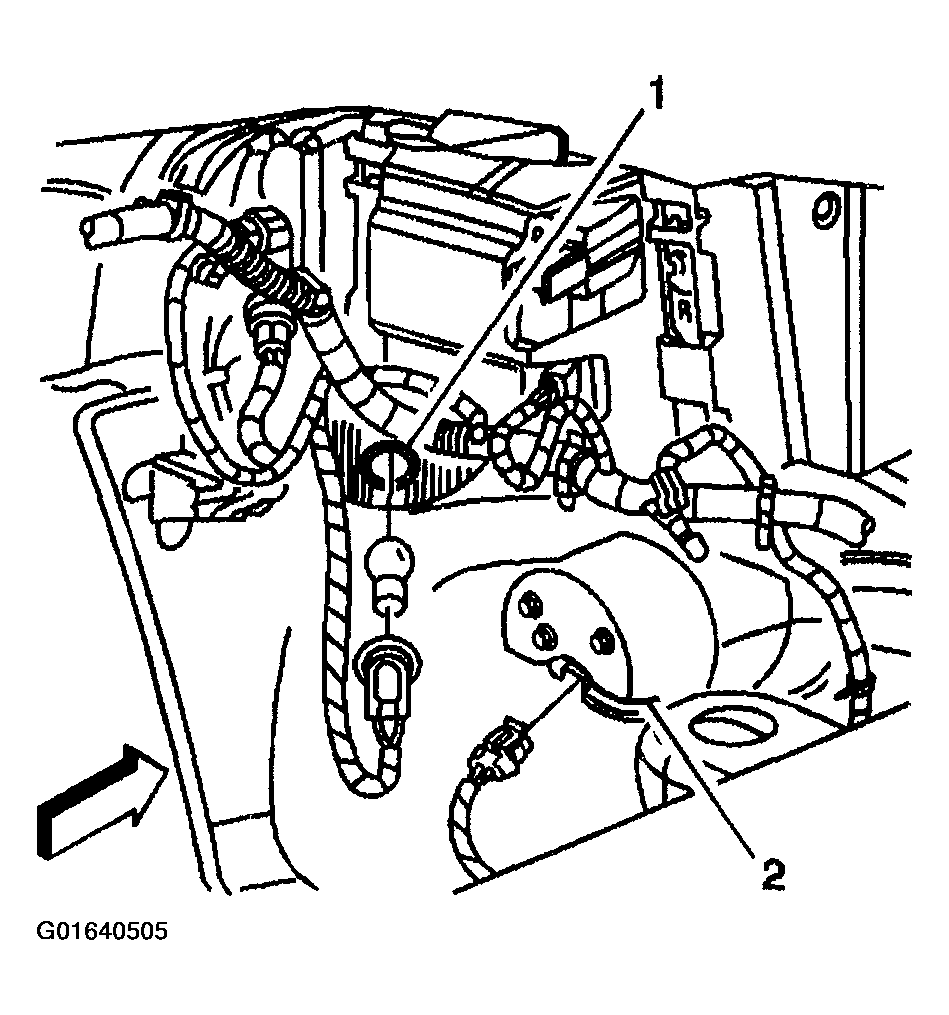

    Fig 1: Removing Fog Lamp From Fascia
    G01640505Courtesy of GENERAL MOTORS CORP.
