Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the fog lamp to the fascia (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 3 fog lamp retaining nuts.

    Tighten

    Tighten the nuts to 10.0 N.m (88 lb in).

  3. Install the fog lamp bulb and socket. Refer to FOG LAMP BULB REPLACEMENT - FRONT   .
  4. Aim the fog lamp(s). Refer to FOG LAMP AIMING PROCEDURE   .

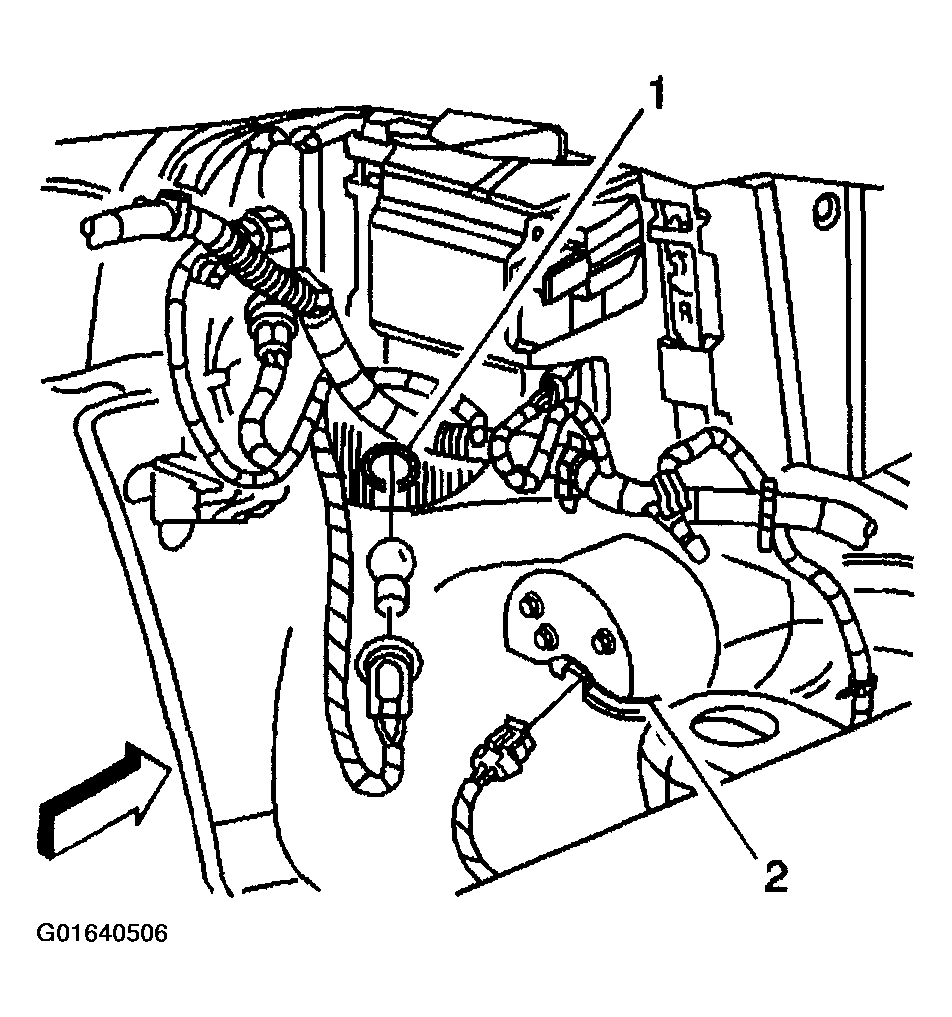

    Fig 1: Installing Fog Lamp To Fascia
    G01640506Courtesy of GENERAL MOTORS CORP.
