Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the fog lamp switch to the OFF position.
  2. Rotate the bulb socket counter clockwise in order to release the socket from the fog lamp housing.
  3. Remove the socket from the fog lamp housing (2).
  4. Remove the bulb from the socket.

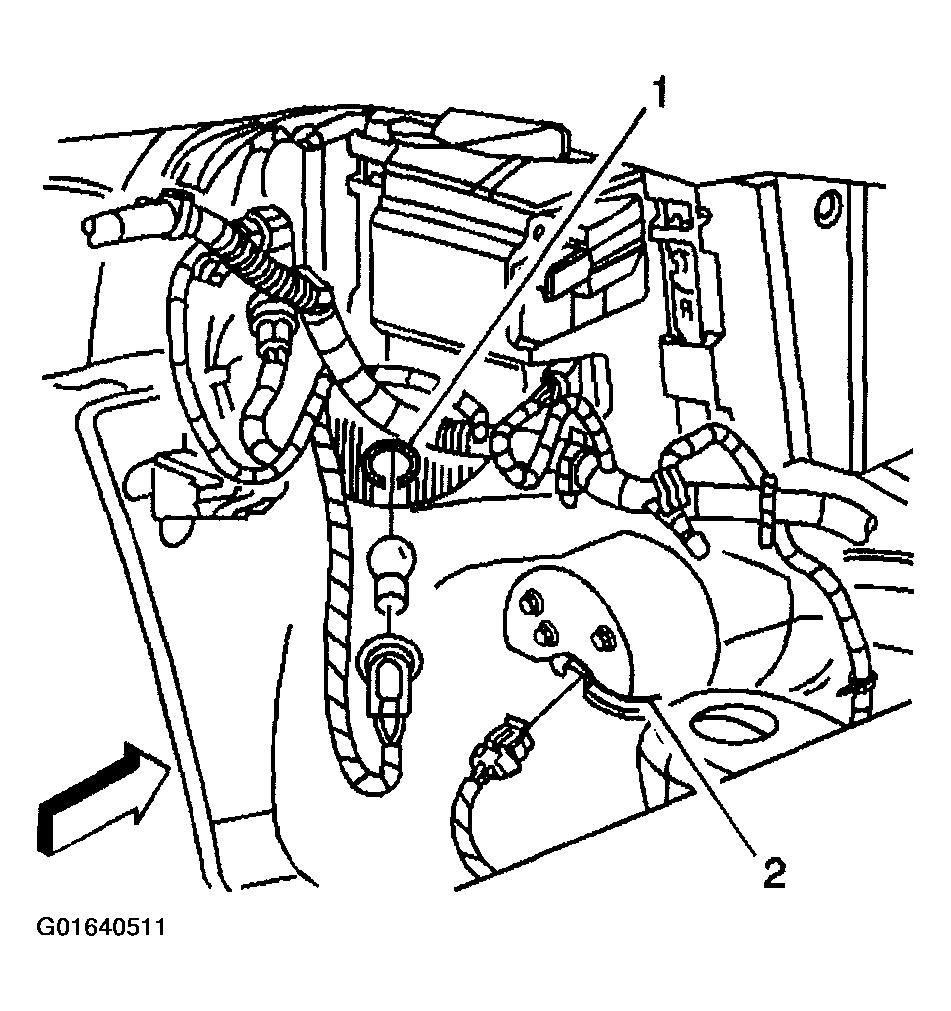

    Fig 1: Removing Bulb From Socket
    G01640511Courtesy of GENERAL MOTORS CORP.
