Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
  2. Index the tabs on the bulb socket to the slots in the fog lamp housing.
  3. Install the socket to the fog lamp housing (2).
  4. Rotate the socket clockwise until fully seated.

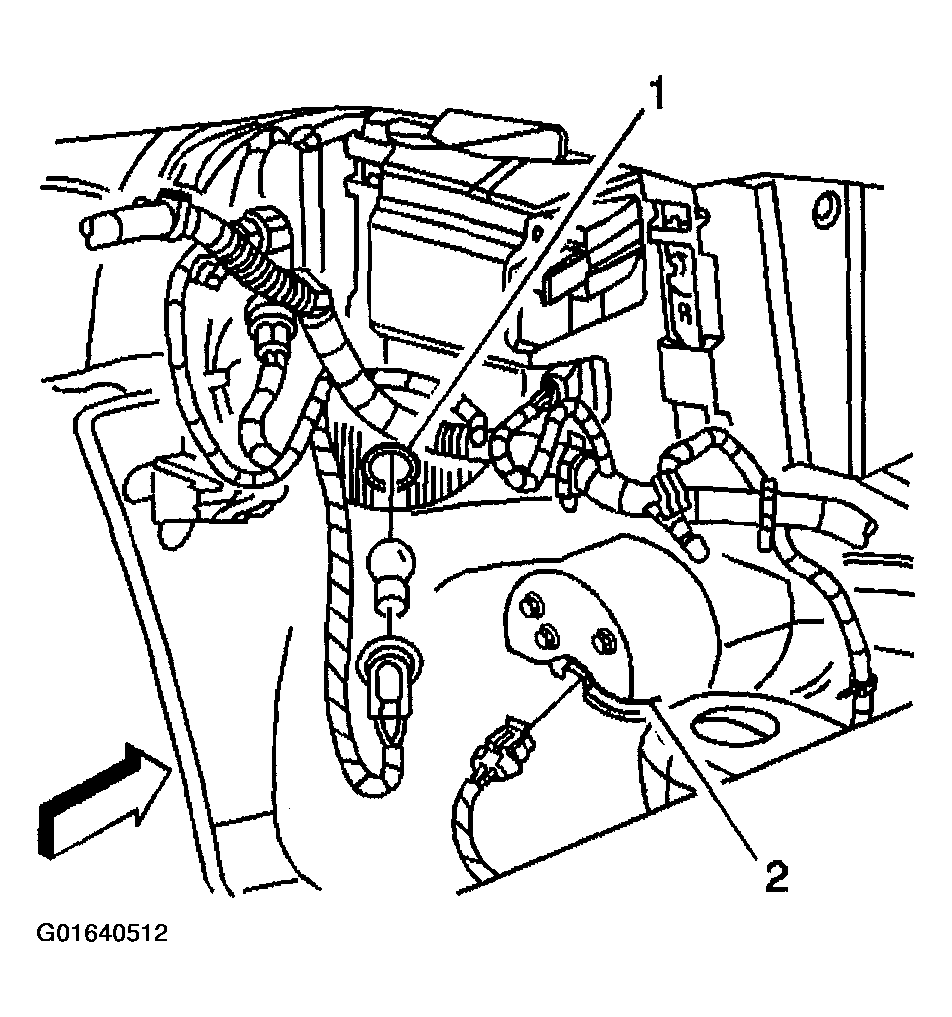

    Fig 1: Installing Bulb To Socket
    G01640512Courtesy of GENERAL MOTORS CORP.
