Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dome lamp lens. Refer to DOME AND READING LAMP BULB REPLACEMENT   in Lighting Systems.
  2. Carefully grasp the sides of dome lamp and move forward 15 mm (1/2 in) in order to release the rear retaining tab.
  3. Lower the dome lamp from the headliner.
  4. Disconnect the electrical connector.
  5. Remove the dome lamp from the headliner.

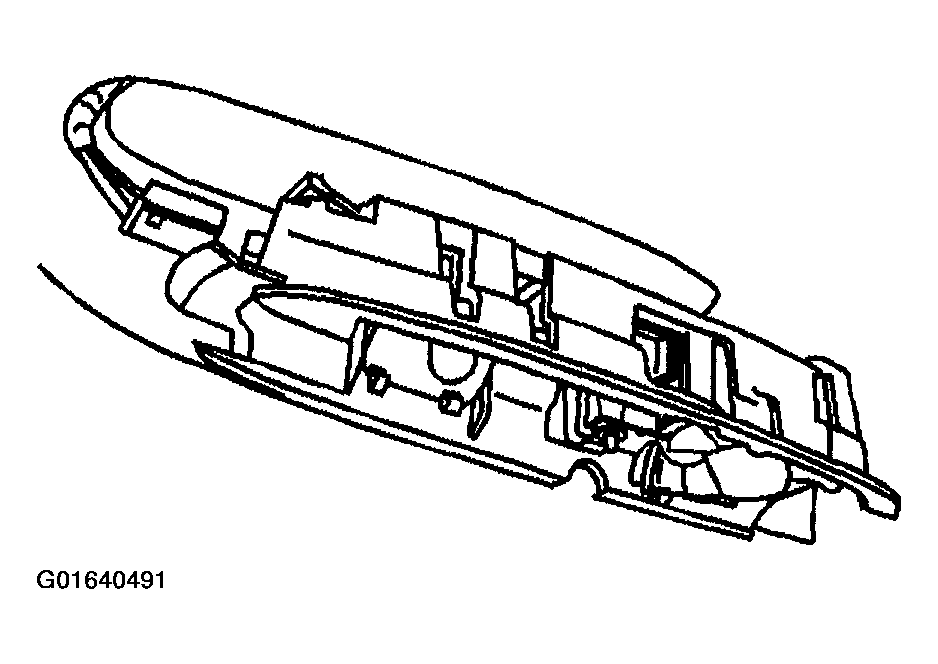

    Fig 1: Removing Dome Lamp From Headliner
    G01640491Courtesy of GENERAL MOTORS CORP.
