Memory/Heated Seat Switch Backlighting Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

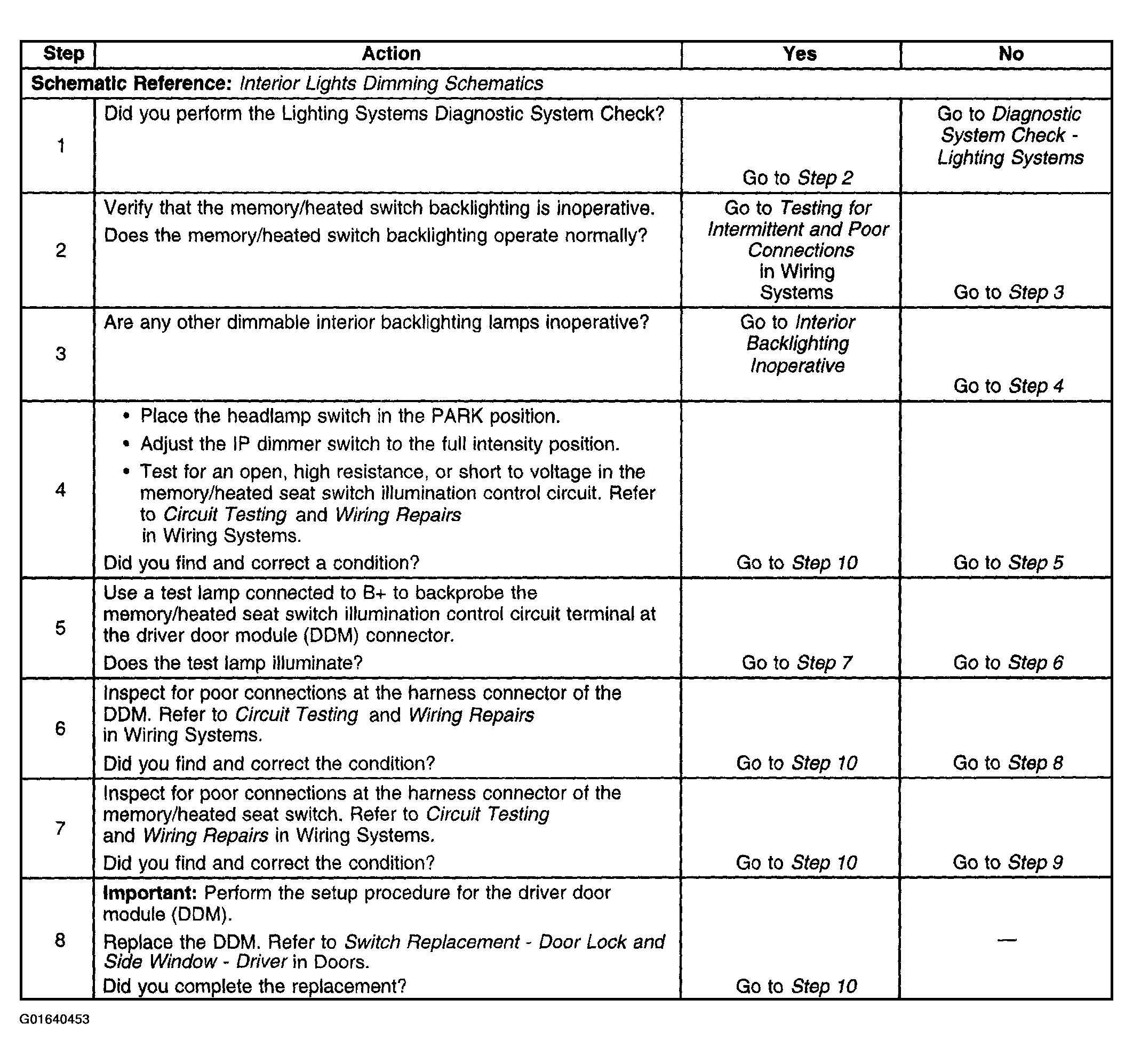

Fig 1: Memory/Heated Seat Switch Backlighting Inoperative - Diagnostic Chart (1 Of 2)
G01640453Courtesy of GENERAL MOTORS CORP.

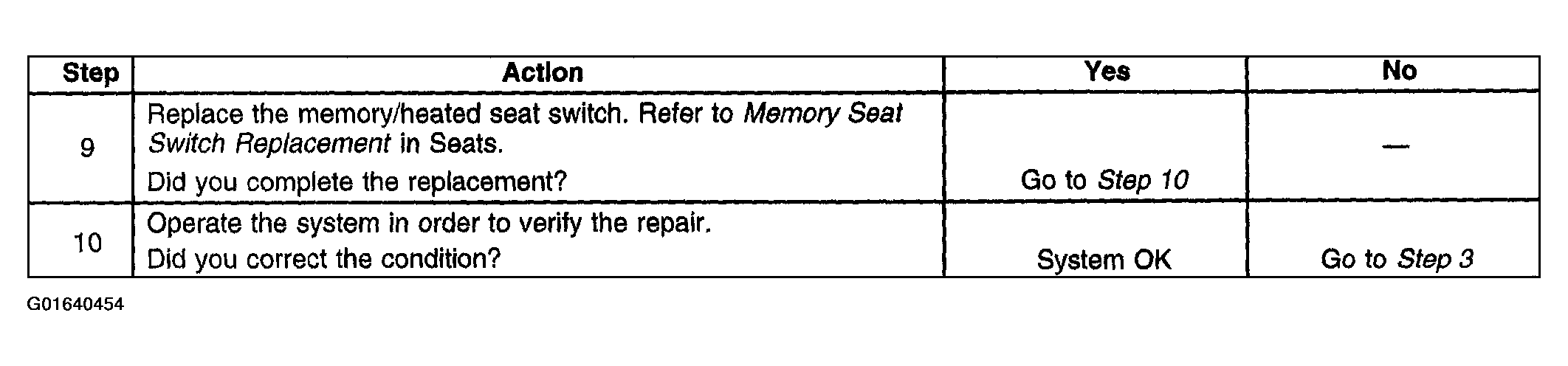

Fig 2: Memory/Heated Seat Switch Backlighting Inoperative - Diagnostic Chart (2 Of 2)
G01640454Courtesy of GENERAL MOTORS CORP.
