Interior Backlighting Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

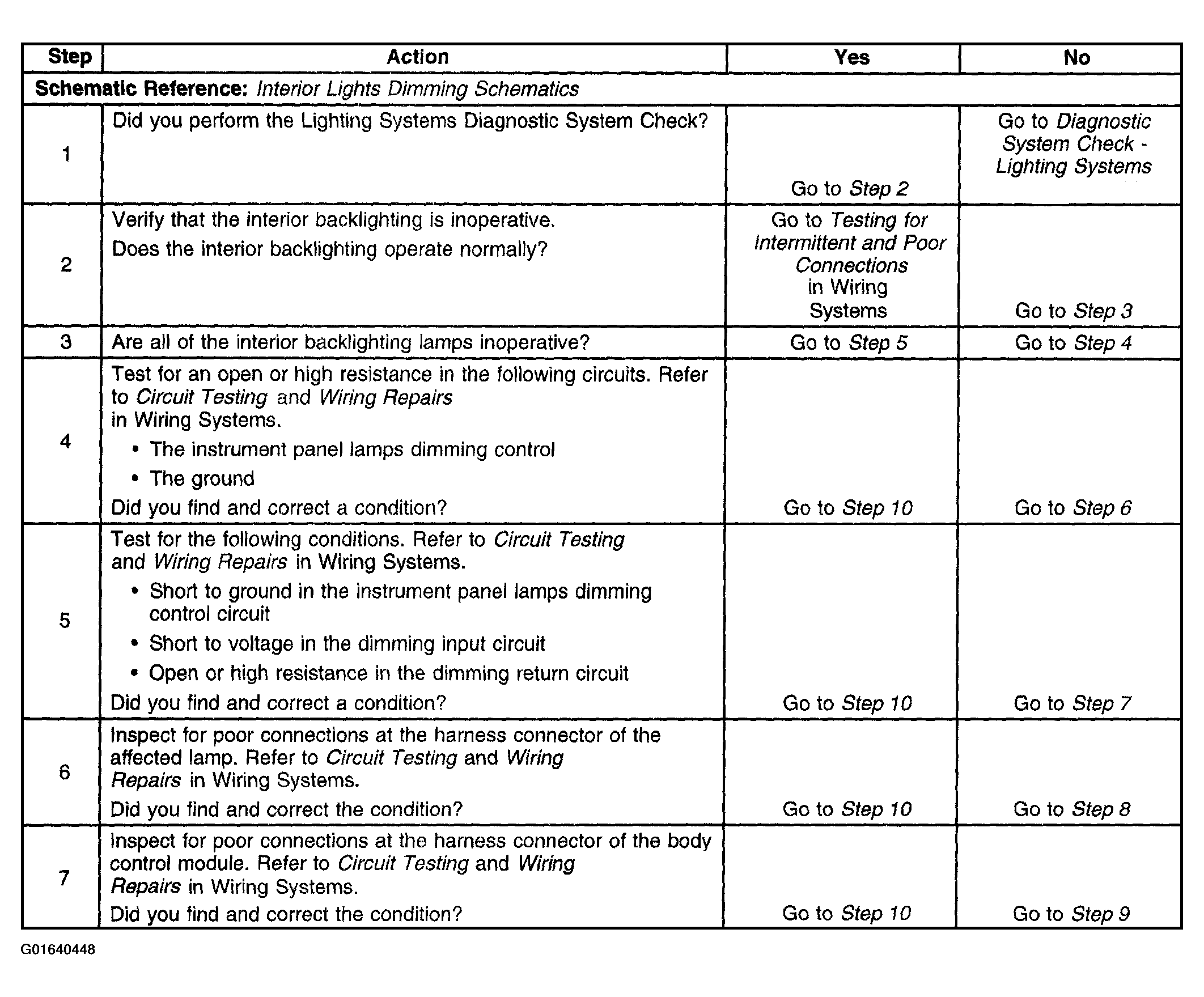

Fig 1: Interior Backlighting Inoperative - Diagnostic Chart (1 Of 2)
G01640448Courtesy of GENERAL MOTORS CORP.

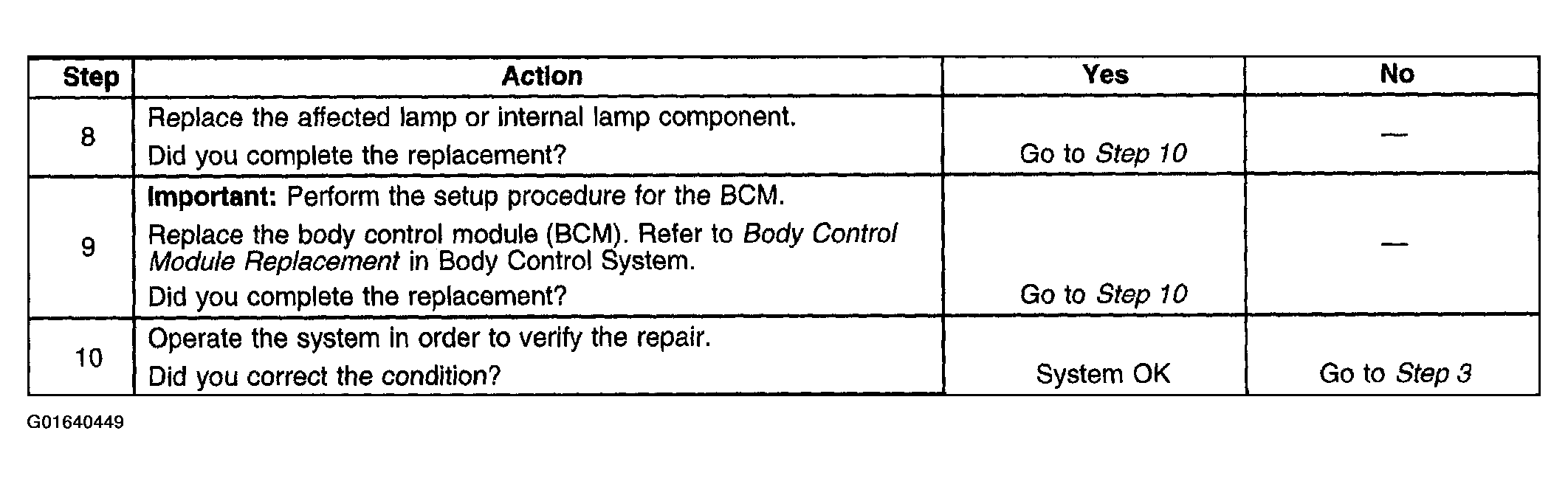

Fig 2: Interior Backlighting Inoperative - Diagnostic Chart (2 Of 2)
G01640449Courtesy of GENERAL MOTORS CORP.
