Headlight Leveling Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

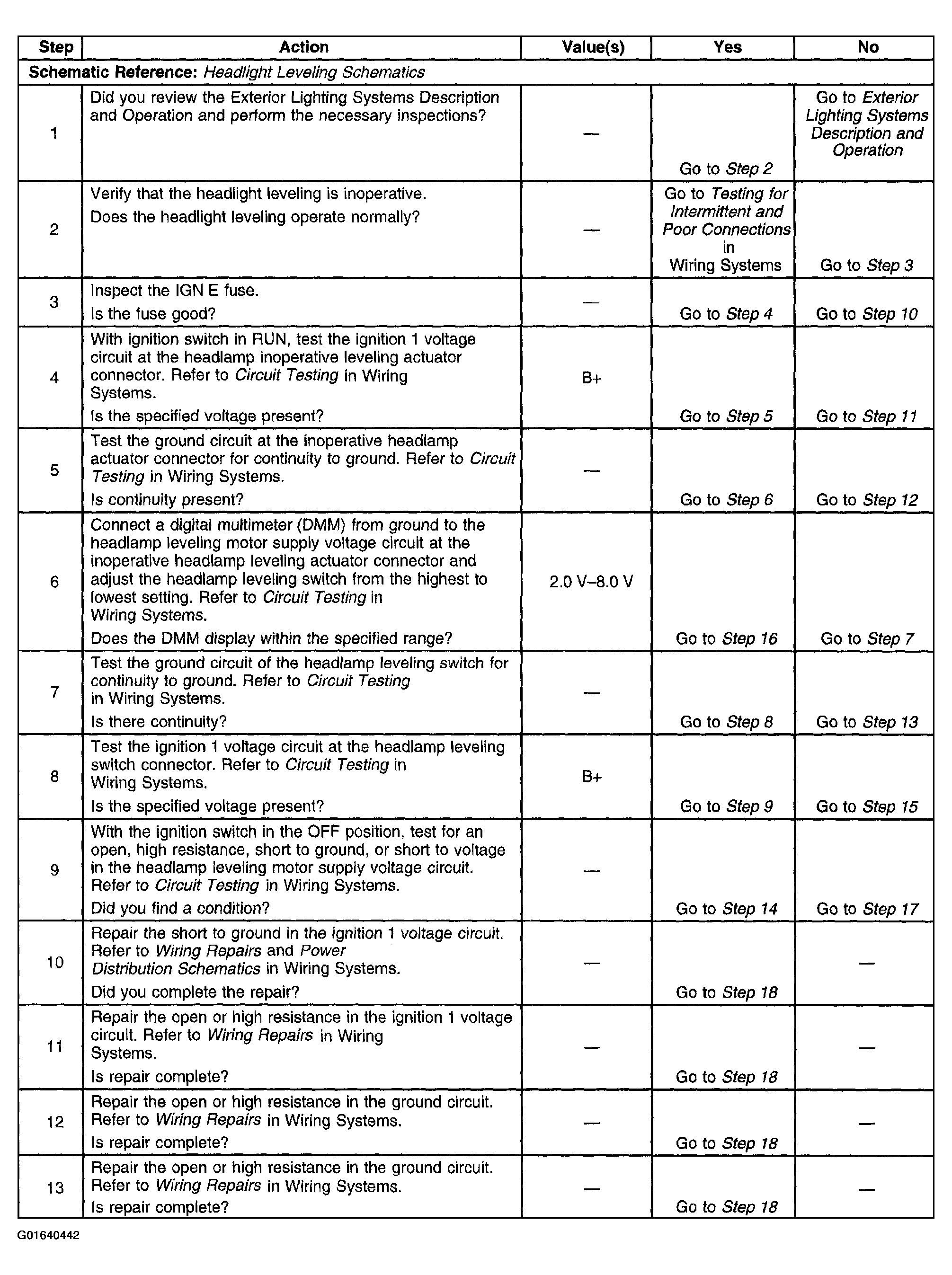

Fig 1: Headlight Leveling Inoperative - Diagnostic Chart (1 Of 2)
G01640442Courtesy of GENERAL MOTORS CORP.

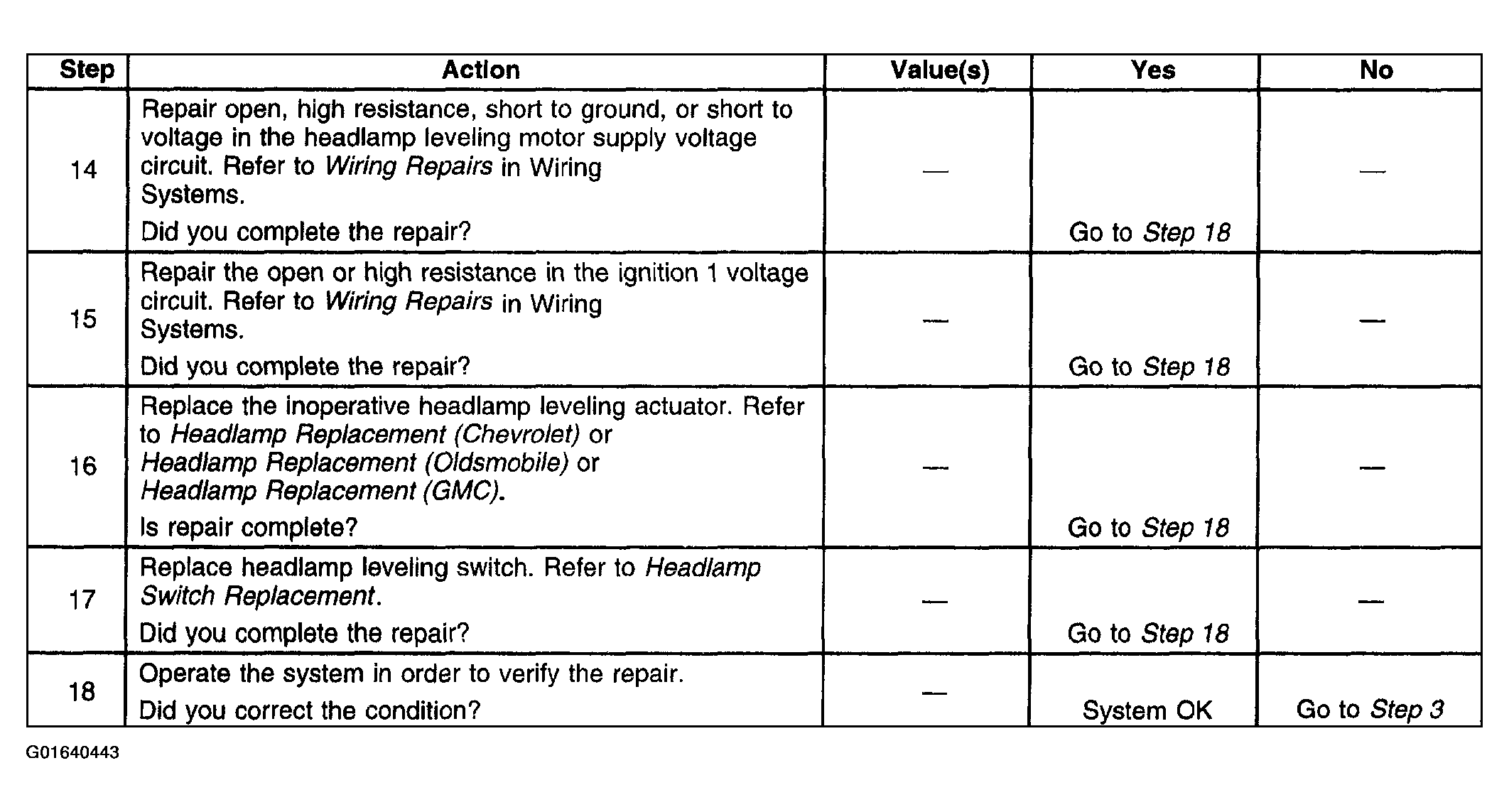

Fig 2: Headlight Leveling Inoperative - Diagnostic Chart (2 Of 2)
G01640443Courtesy of GENERAL MOTORS CORP.
