Fog Lamp Indicator Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

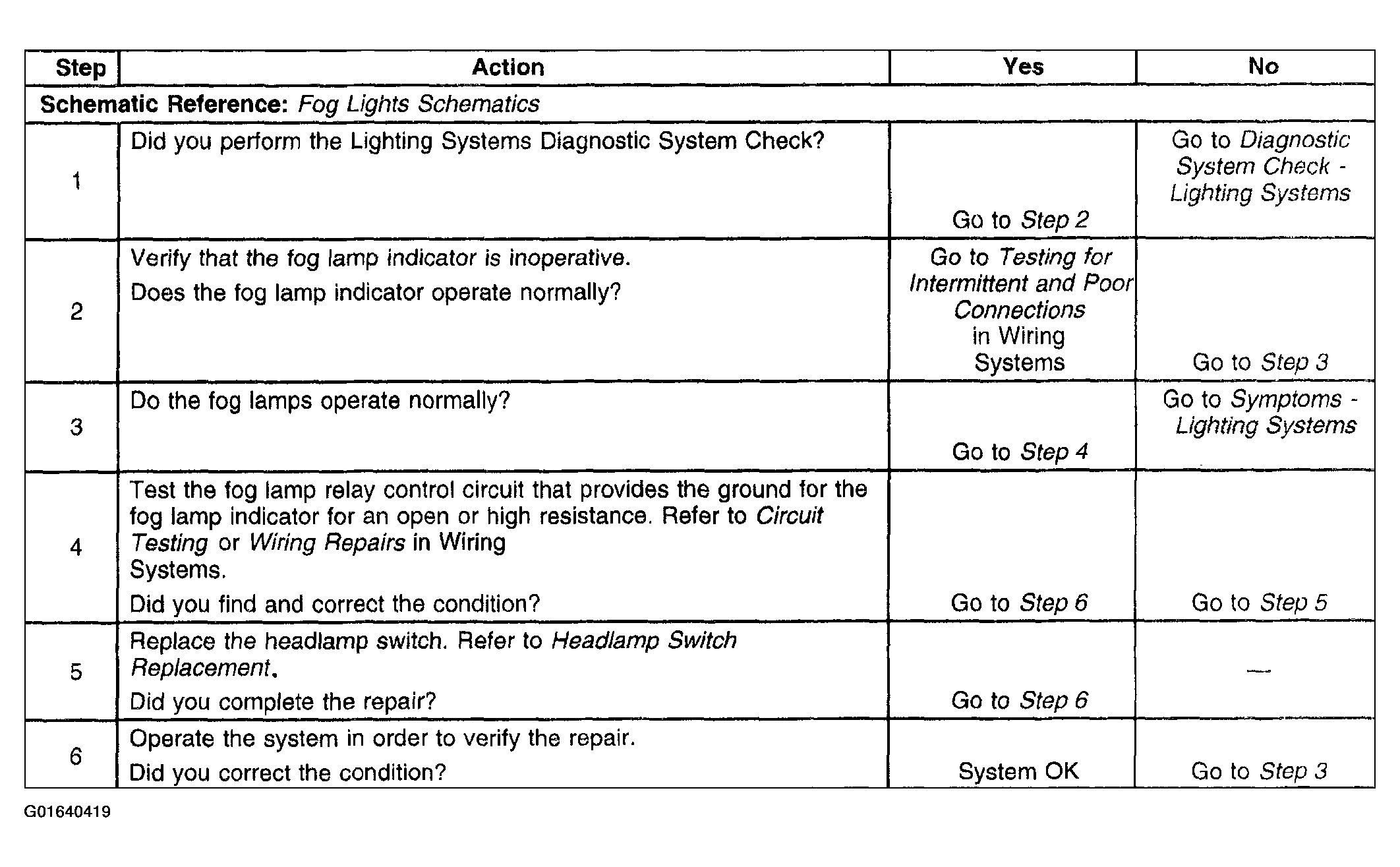

Fig 1: Fog Lamp Indicator Inoperative - Diagnostic Chart
G01640419Courtesy of GENERAL MOTORS CORP.
