Daytime Running Lamps (DRL) Defeat Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

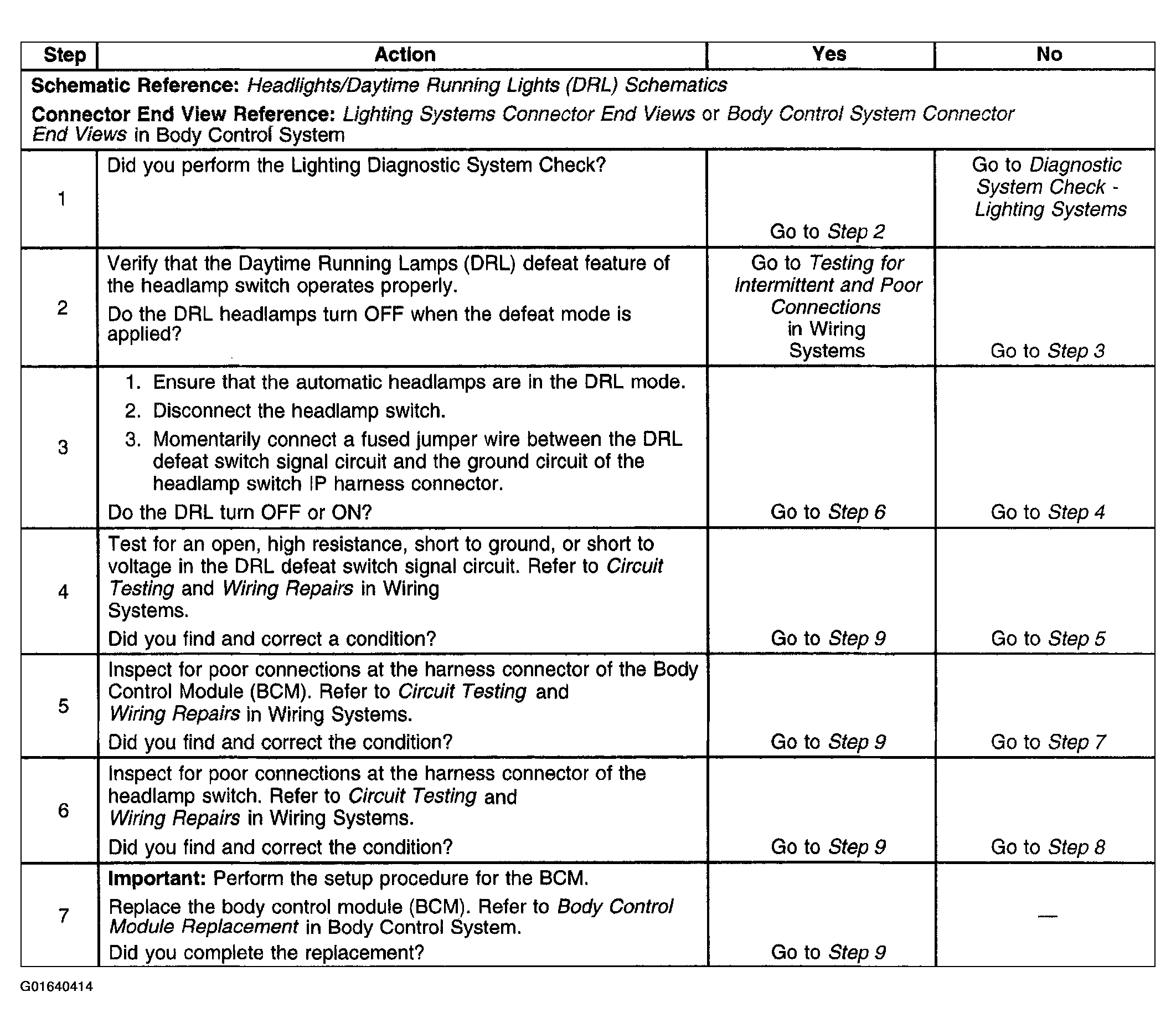

Fig 1: Daytime Running Lamps (Defeat Inoperative) - Diagnostic Chart (1 Of 2)
G01640414Courtesy of GENERAL MOTORS CORP.

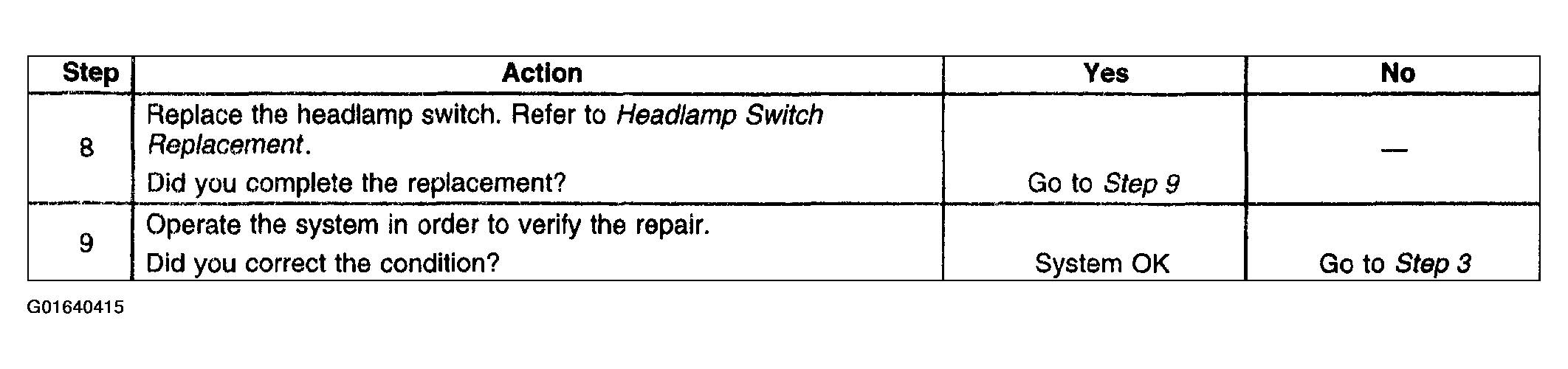

Fig 2: Daytime Running Lamps (Defeat Inoperative) - Diagnostic Chart (2 Of 2)
G01640415Courtesy of GENERAL MOTORS CORP.
