Cornering Lamps Inoperative

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

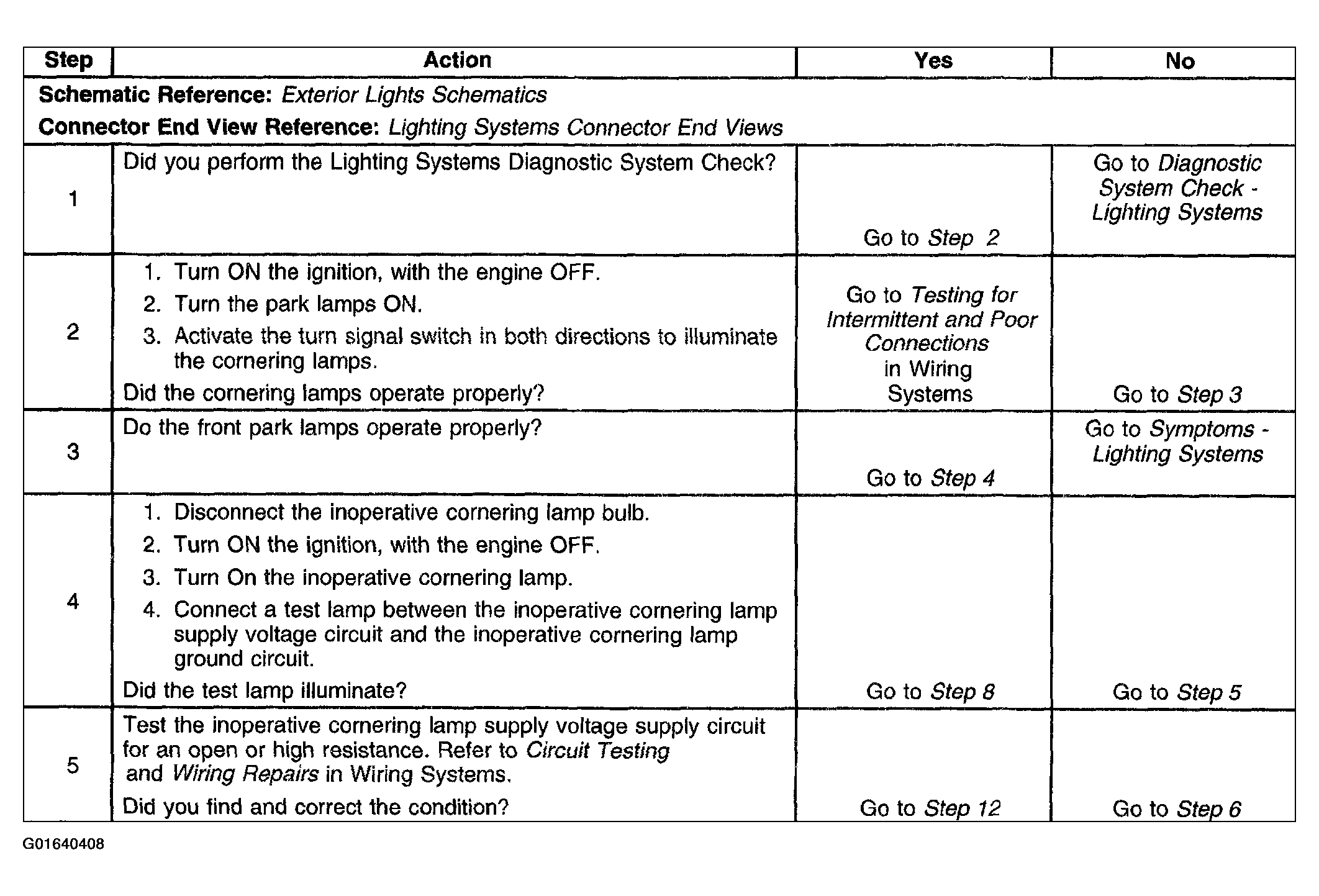

Fig 1: Cornering Lamps Inoperative - Diagnostic Chart (1 Of 2)
G01640408Courtesy of GENERAL MOTORS CORP.

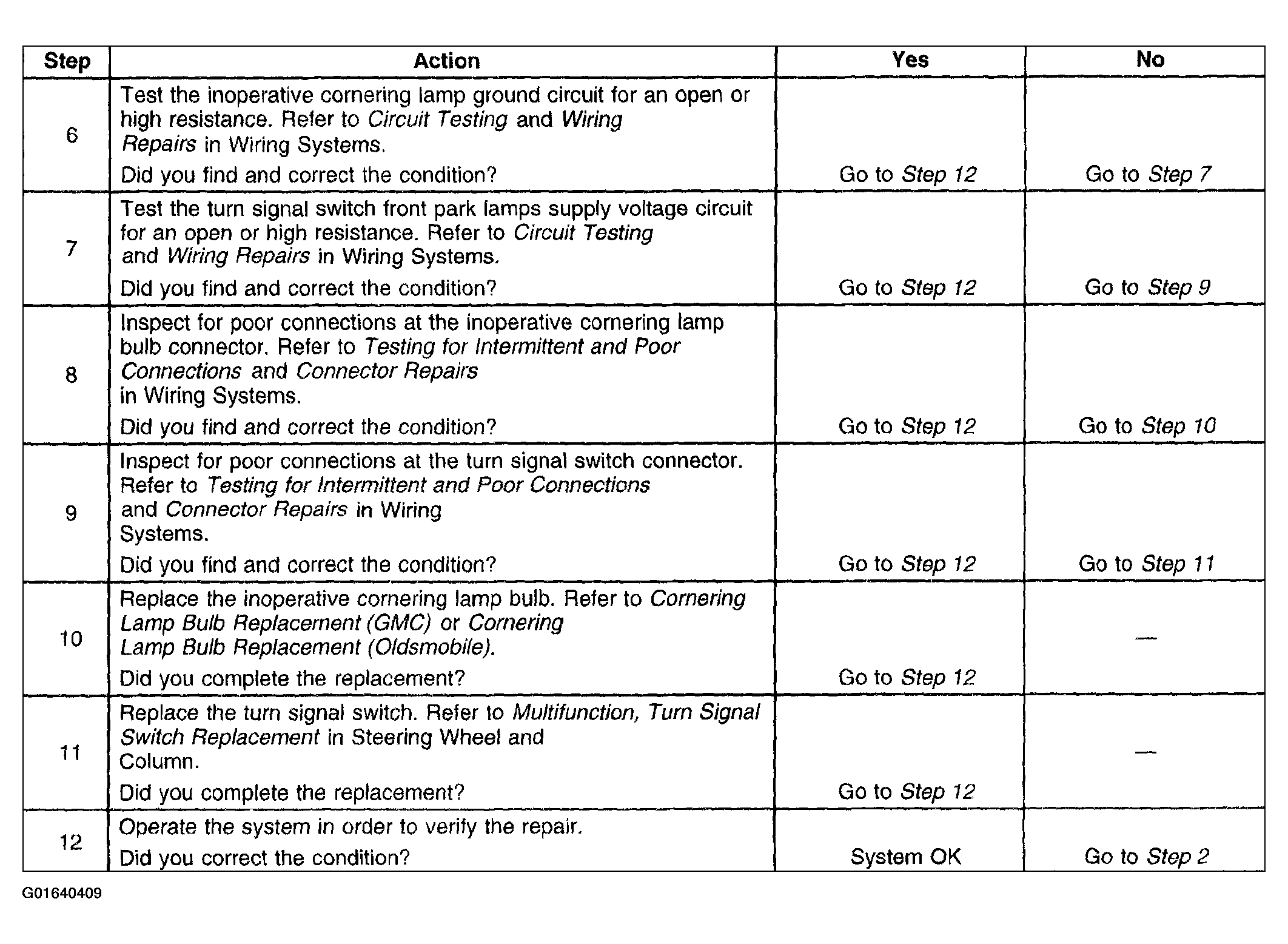

Fig 2: Cornering Lamps Inoperative - Diagnostic Chart (2 Of 2)
G01640409Courtesy of GENERAL MOTORS CORP.
