Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the relay (1) to the wire harness connector (2).
  2. Install any connector position assurance (CPA) devices or secondary locks.
  3. Install the relay using any fasteners or tape that originally held the relay in place.

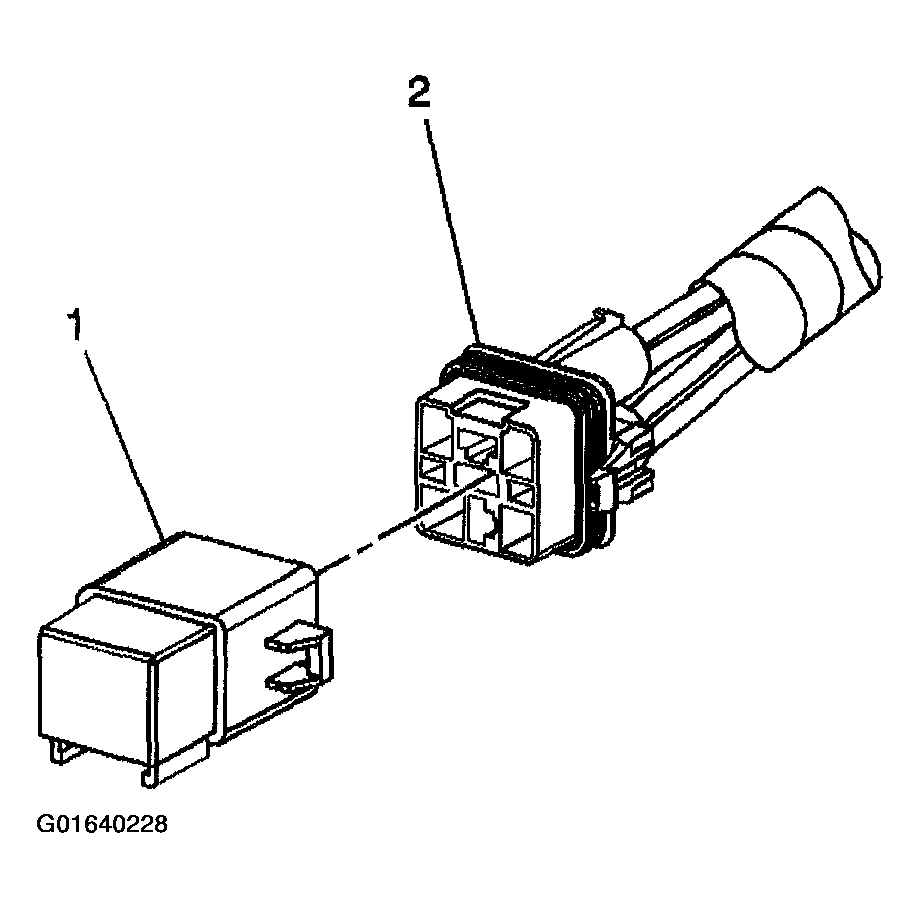

    Fig 1: Connecting Relay To Wire Harness Connector
    G01640228Courtesy of GENERAL MOTORS CORP.
