Utility/Van Zoning: Notes

WARNING: This page is about a different car, the 2003 Oldsmobile Bravada, 2003 GMC Envoy XL, 2003 GMC Envoy, and 2003 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond to where they are located in the vehicle.

The following table explains the numbering system.

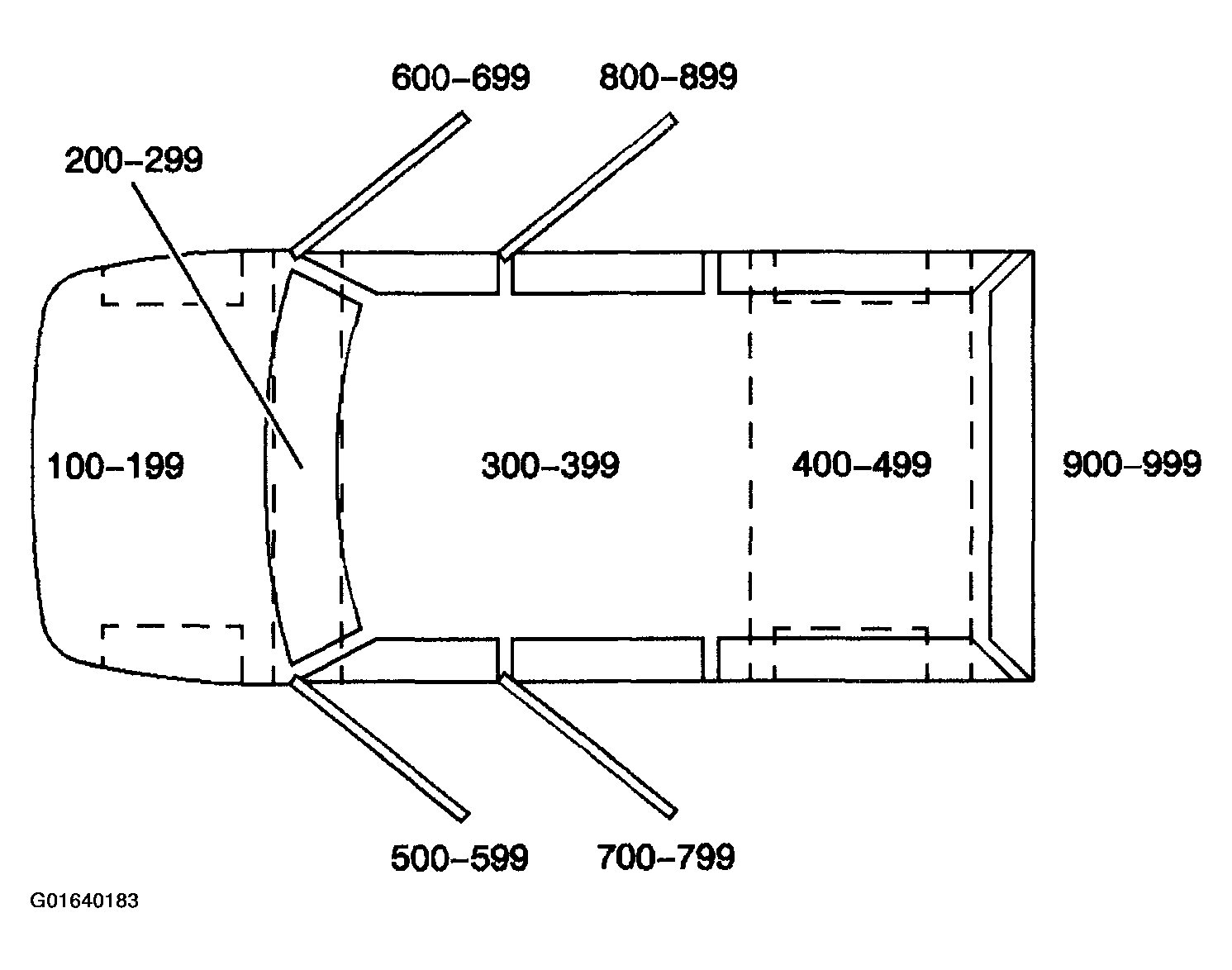

Fig 1: Identifying Utility/Van Zoning Callout Numbers

Courtesy of GENERAL MOTORS CORP.
