Power Seats Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

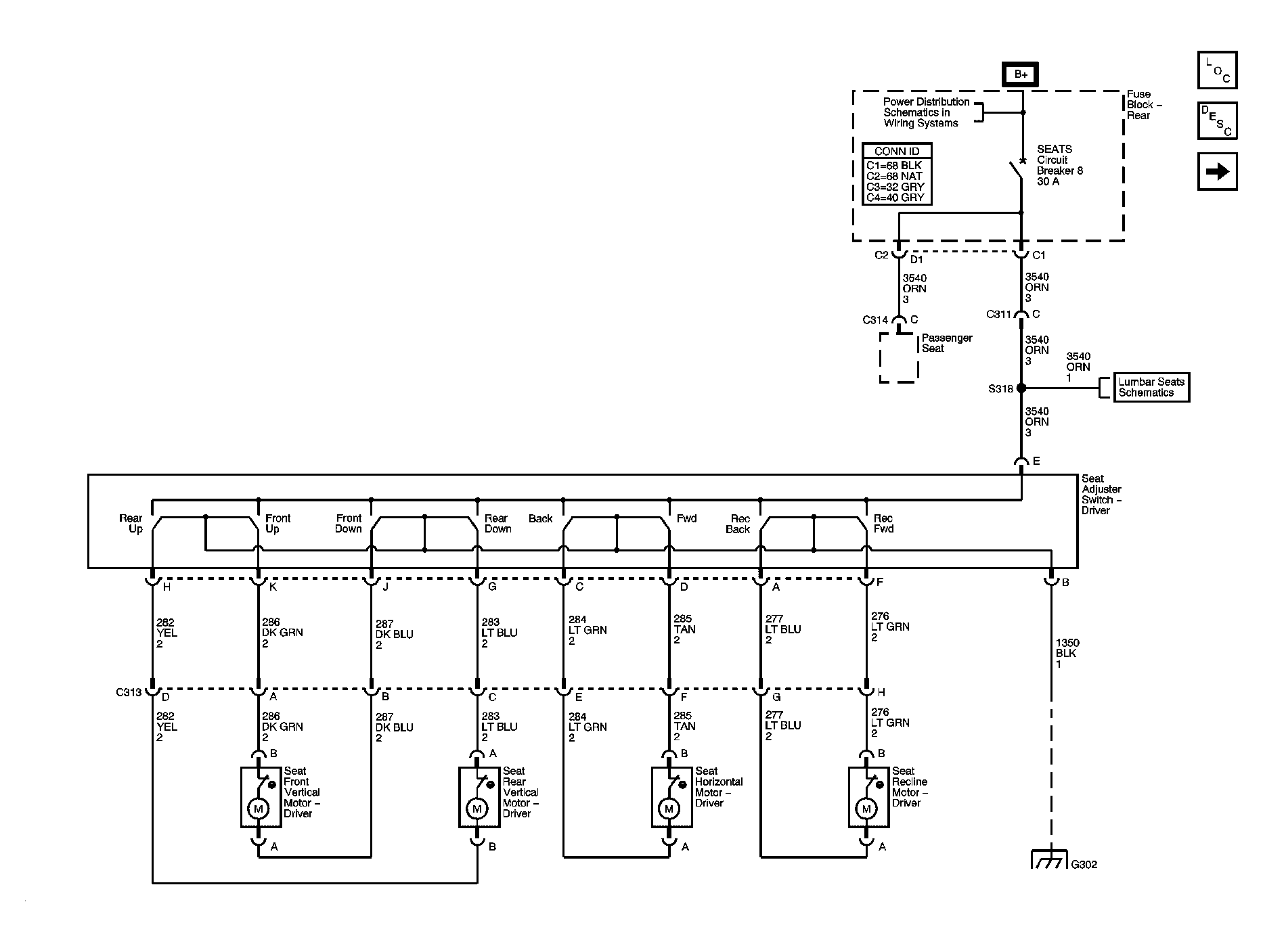

Fig 1: Driver Seat Schematic - W/O Memory

Courtesy of GENERAL MOTORS CORP.

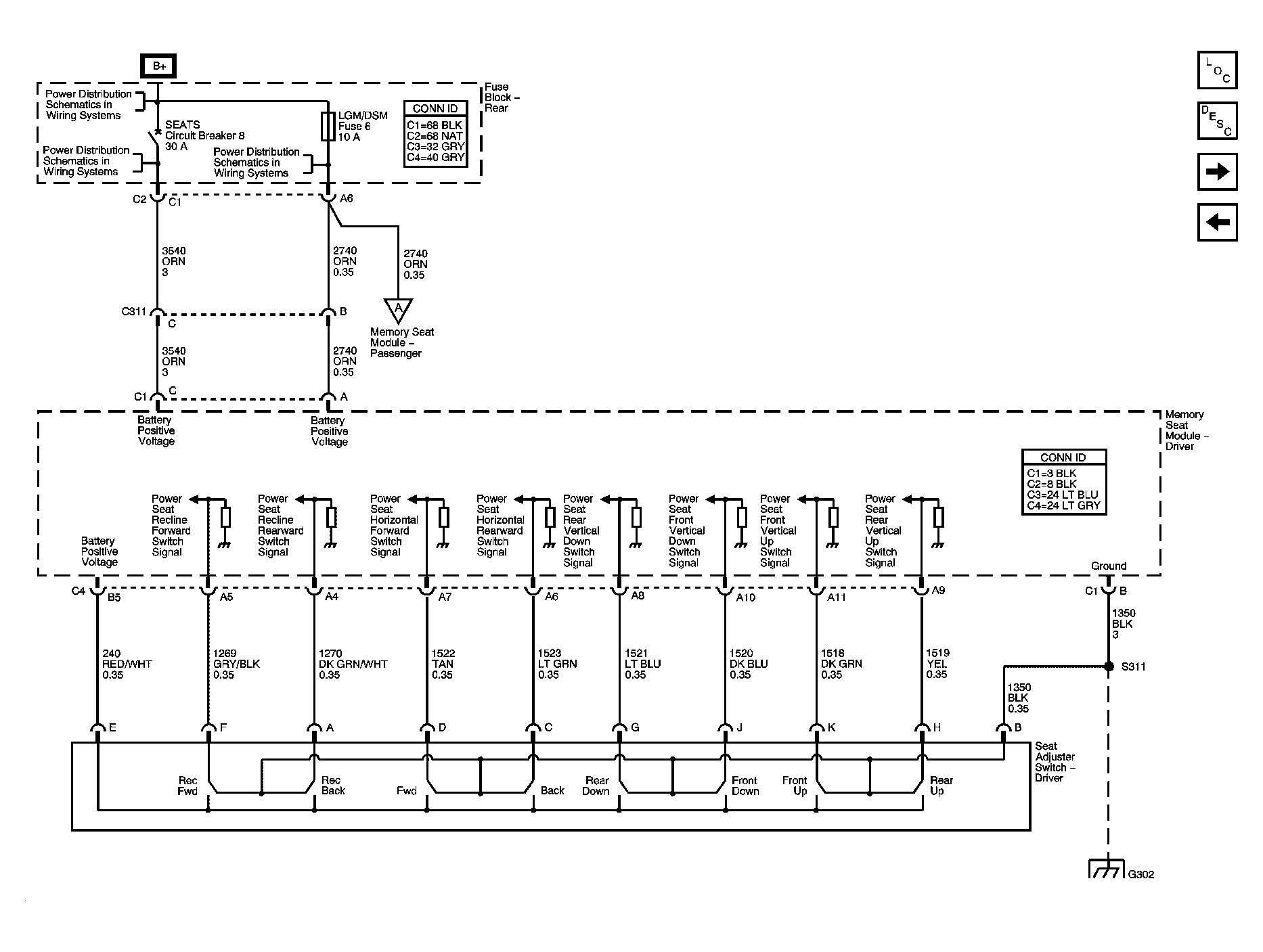

Fig 2: Driver Seat Schematic - W/Memory - Power, Ground & Controls

Courtesy of GENERAL MOTORS CORP.

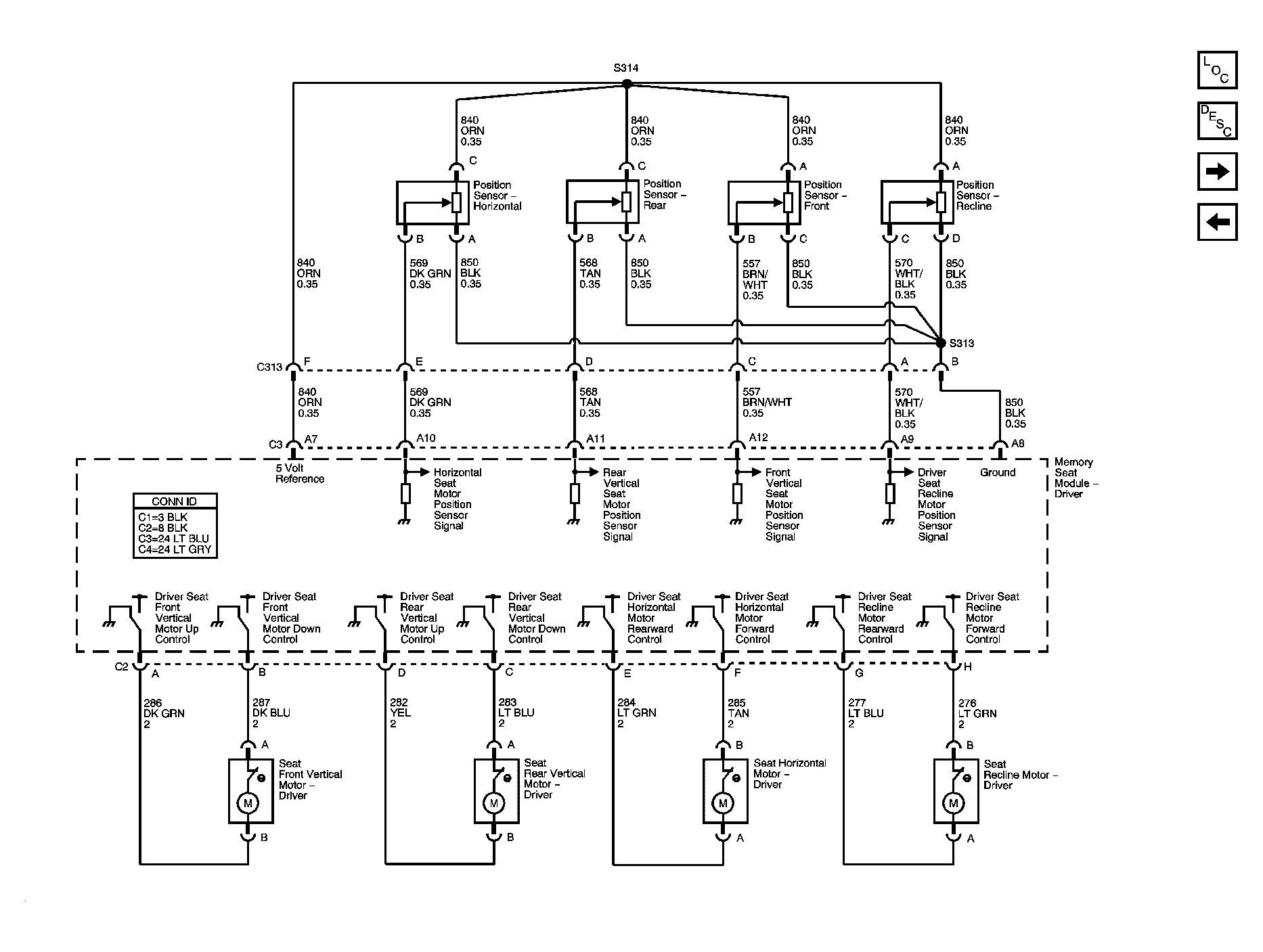

Fig 3: Driver Seat Schematic - W/Memory - Motors & Position Sensors

Courtesy of GENERAL MOTORS CORP.

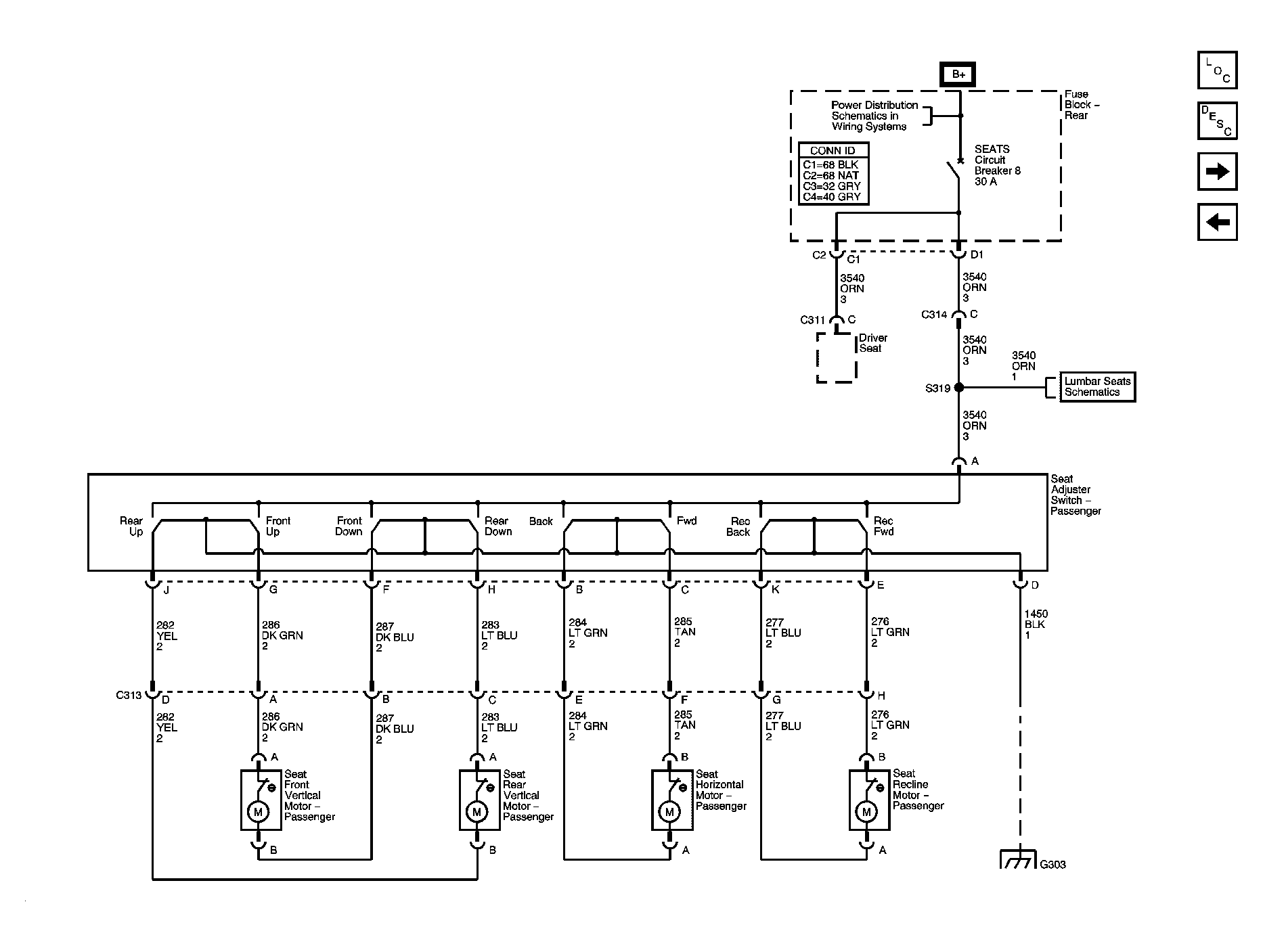

Fig 4: Passenger Seat Schematic - W/O Heat

Courtesy of GENERAL MOTORS CORP.

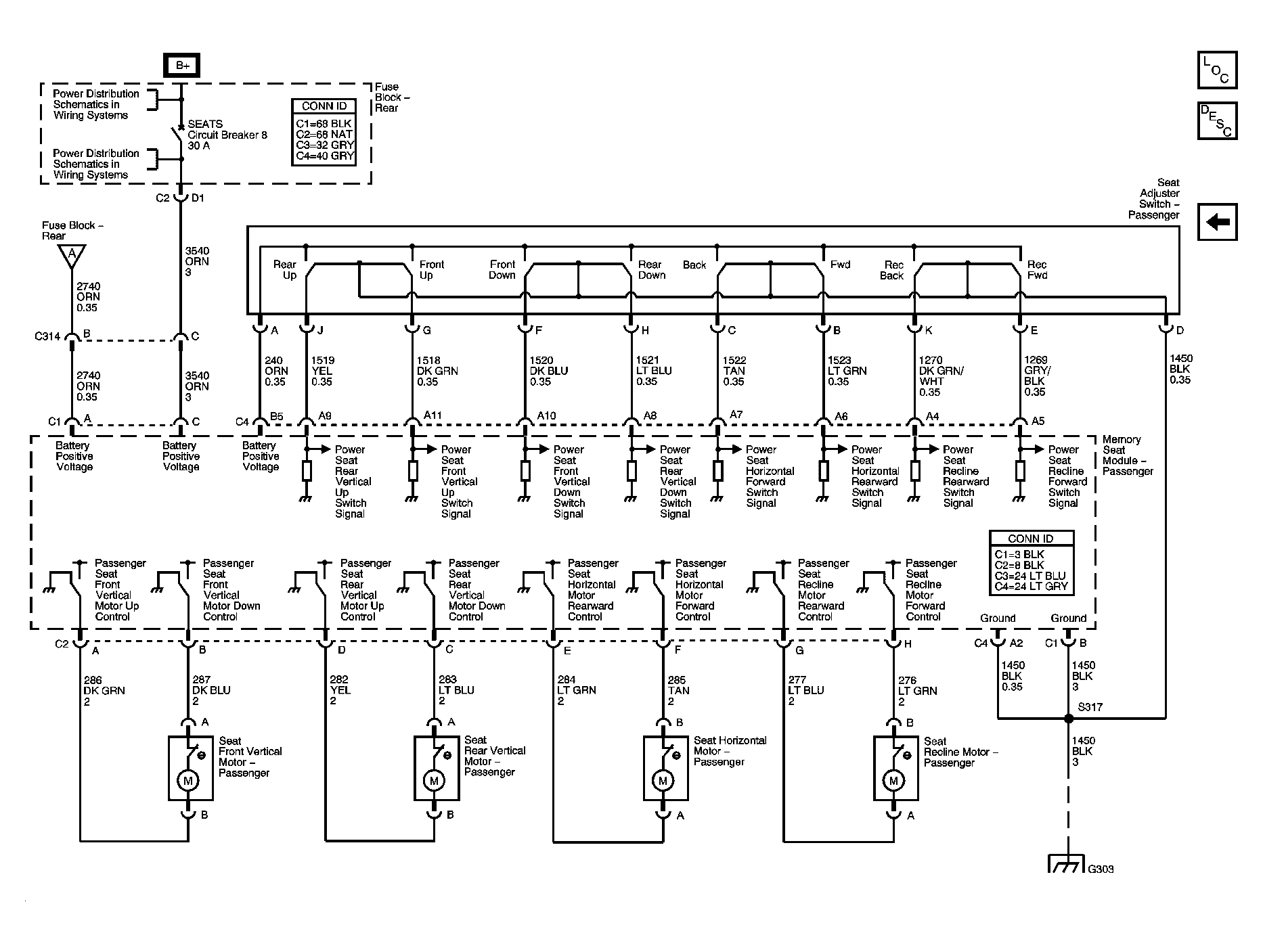

Fig 5: Passenger Seat Schematic - W/Heat

Courtesy of GENERAL MOTORS CORP.
