Lumbar Support Schematics

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Seat Controls Schematic - W/O Memory

Courtesy of GENERAL MOTORS CORP.

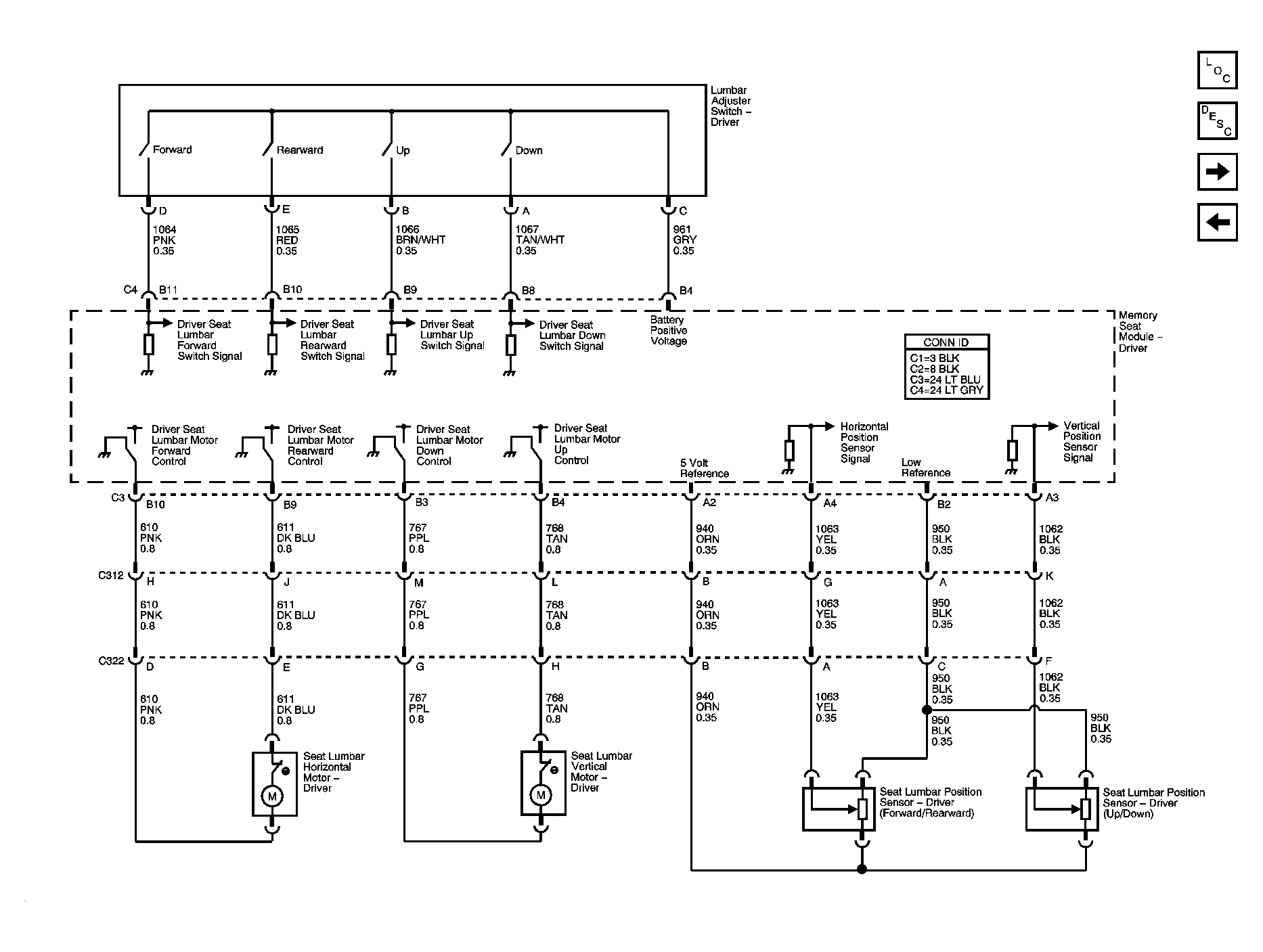

Fig 2: Driver Seat Controls Schematic - W/Memory

Courtesy of GENERAL MOTORS CORP.

Fig 3: Passenger Controls W/O Heat Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 4: Passenger Seat Controls Schematic - W/Heat

Courtesy of GENERAL MOTORS CORP.
