Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

If the right seat back was removed, perform the following:
1. Position the right seat back to the vehicle.
2. Install the navigation control processor bracket, if equipped. Refer to NAVIGATION CONTROL PROCESSOR BRACKET REPLACEMENT (TRAILBLAZER, ENVOY, BRAVADA) or NAVIGATION CONTROL PROCESSOR BRACKET REPLACEMENT (TRAILBLAZER EXT, ENVOY XL) in Cellular Communication.
  NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
3. Install the right front rear seat back mounting nut.
  Tighten: Tighten the rear seat back mounting nut to 45 N.m (33 lb ft).

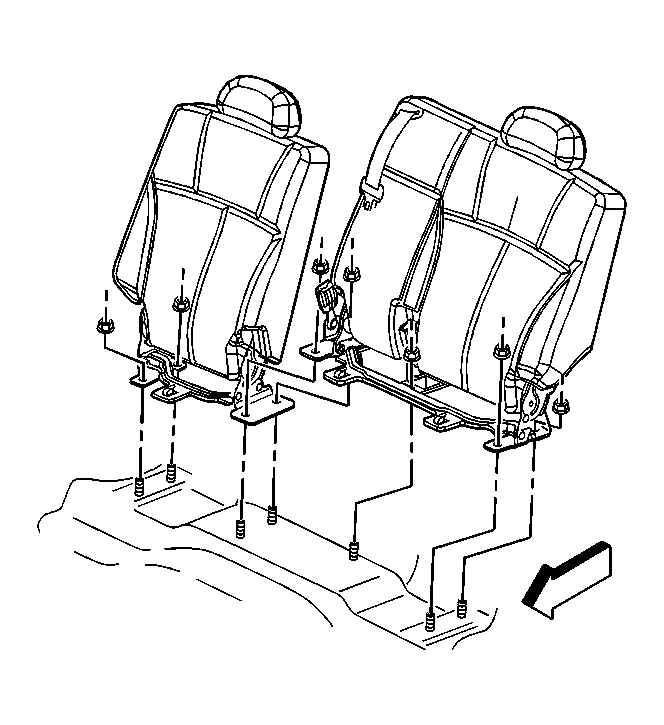

  Fig 1: Removing/Installing Rear Seat Mounting Nuts
  Courtesy of GENERAL MOTORS CORP.
4. Tumble the right seat back in order to gain access to the right rear seat stud.
5. Install the right rear seat back mounting nut.
  Tighten: Tighten the rear seat back mounting nut to 45 N.m (33 lb ft).
6. Return the right seat back to the upright position.
Position the left seat back to the vehicle.
Install the left 3 front seat back mounting nuts.
Tighten: Tighten the rear seat back mounting nuts to 45 N.m (33 lb ft).
Tumble the left seat back in order to gain access to the left rear seat studs.
Install the left 2 rear seat back mounting nuts.
Tighten: Tighten the nuts to 45 N.m (33 lb ft).
Return the left seat back to the upright position.
