Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bucket seat assembly from the vehicle. Refer to Seat Replacement - Front Bucket .
  2. Remove the seat cushion trim panel. Refer to Seat Cushion Outer Trim Panel Replacement .
  3. Remove the lumbar support cable from the seat adjuster. Refer to Lumbar Support Cable Replacement .
  4. Remove the SIR harness connector (1) from the seat adjuster bracket.

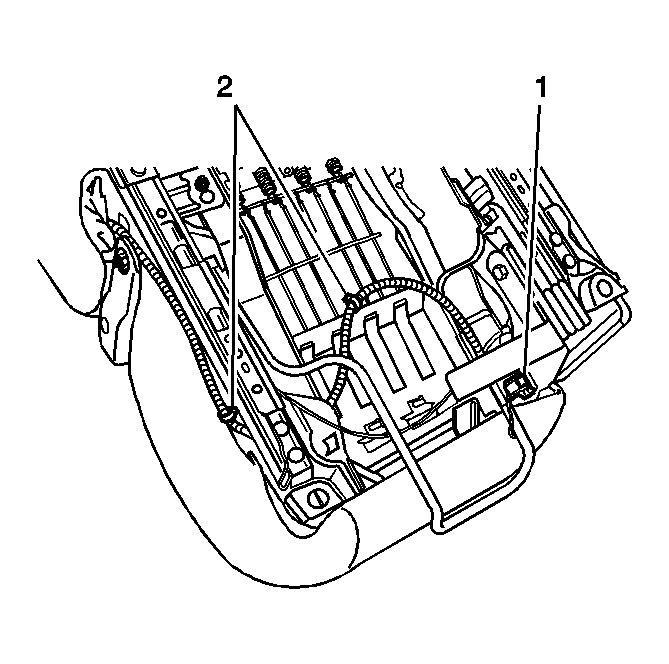

    Fig 1: View Of SIR Wiring Harness Connector & Retaining Clips
    GM755831Courtesy of GENERAL MOTORS CORP.
  5. Remove the SIR harness from the harness clips (2) and remove the SIR harness from the seat adjuster.
  6. Remove the seat back from the seat adjuster. Refer to Seat Back Replacement - Front .
  7. Remove the seat belt buckle nut (1).
    Fig 2: Removing/Installing Seat Belt Buckle Nut
    GM755837Courtesy of GENERAL MOTORS CORP.
  8. Remove the 4 nuts that secure the seat pan to the power seat adjuster frame.
    Fig 3: Removing/Installing Power Seat Adjuster Frame Mounting Nuts
    GM755845Courtesy of GENERAL MOTORS CORP.
  9. Remove the seat back. Refer to Seat Back Replacement - Front .
