Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If installing a new trim plate, perform the following steps:
    1. If equipped, install the cigar lighter or 12-volt power supply outlets. Refer to Cigar Lighter Housing or 12 Volt Accessory Power Receptacle Replacement .
    2. Install the rear windshield wiper switch. Refer to WIPER/WASHER SWITCH REPLACEMENT - REAR in Wiper/Washer Systems.
  2. Connect the electrical connectors as necessary.
  3. Install the trim plate to the IP. Ensure that all of the retaining clips are properly seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the lower trim plate retaining screws.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

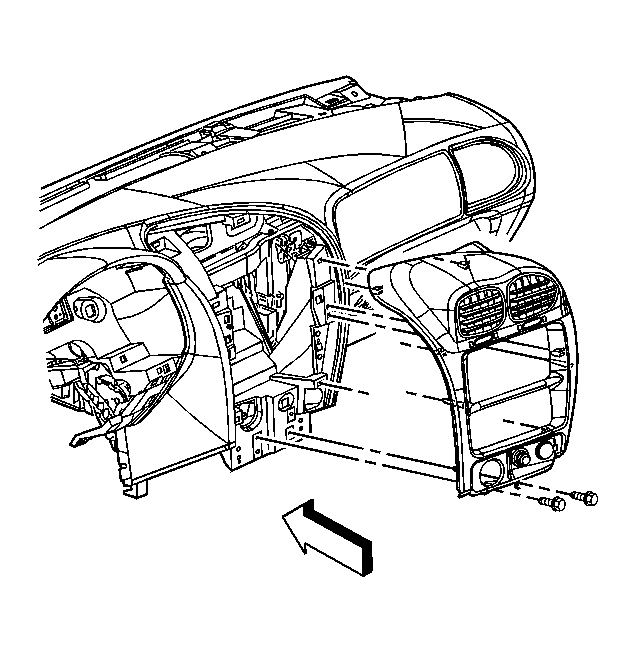

    Fig 1: Removing/Installing Instrument Panel (I/P) Accessory Trim Plate & Retaining Screws
    GM1208994Courtesy of GENERAL MOTORS CORP.
  5. Install the console shift lever bezel. Refer to Console Shift Lever Bezel Replacement (Oldsmobile) .
