Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left .
  2. Remove the 4 trim panel retaining screws.

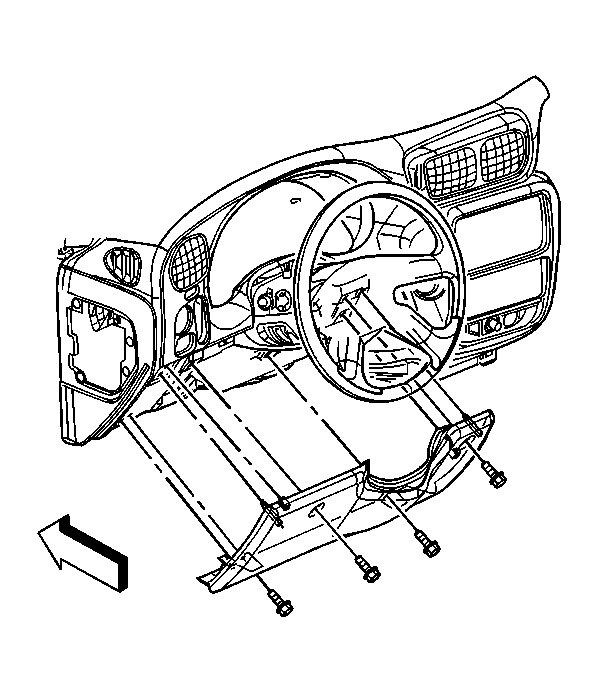

    Fig 1: Locating Knee Bolster Trim Panel & Screws
    GM712827Courtesy of GENERAL MOTORS CORP.
  3. Release the clips that retain the trim panel to the IP.
  4. Remove the trim panel from the IP.
