Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knee bolster to the steering column support bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the 4 knee bolster retaining nuts.

    Tighten:  Tighten the nuts to 10 N.m (88 lb in).

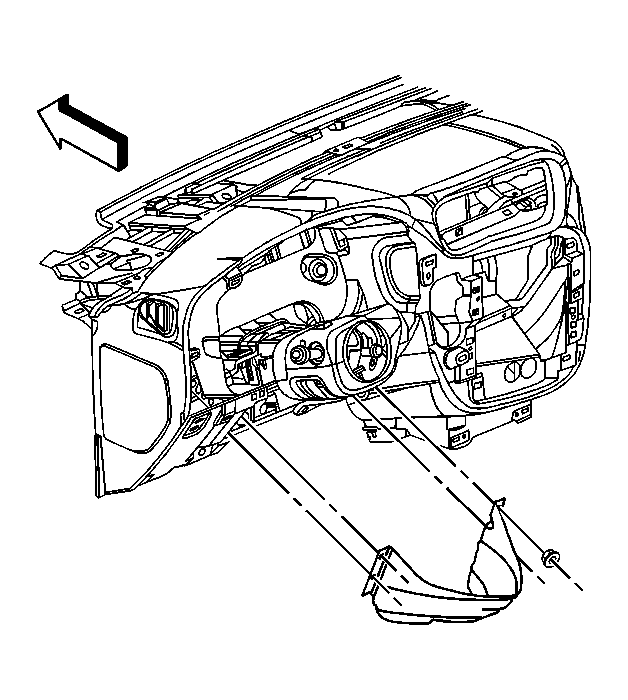

    Fig 1: Removing/Installing Knee Bolster & Retaining Nuts
    GM712844Courtesy of GENERAL MOTORS CORP.
  3. Install the knee bolster trim panel. Refer to Trim Panel Replacement - Knee Bolster .
  4. Install the left closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left .
