Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Block the wheels to prevent the vehicle from moving.
  2. Remove the rubber ash tray inserts and rubber mat from the console.
  3. Remove the floor shift control knob. Refer to FLOOR SHIFT KNOB .
  4. Remove the center console shift lever bezel, Oldsmobile only. Refer to Console Shift Lever Bezel Replacement (Oldsmobile) .
  5. Remove the console storage compartment. Refer to Console Storage Bin Replacement .
  6. Remove the center console retaining screws.

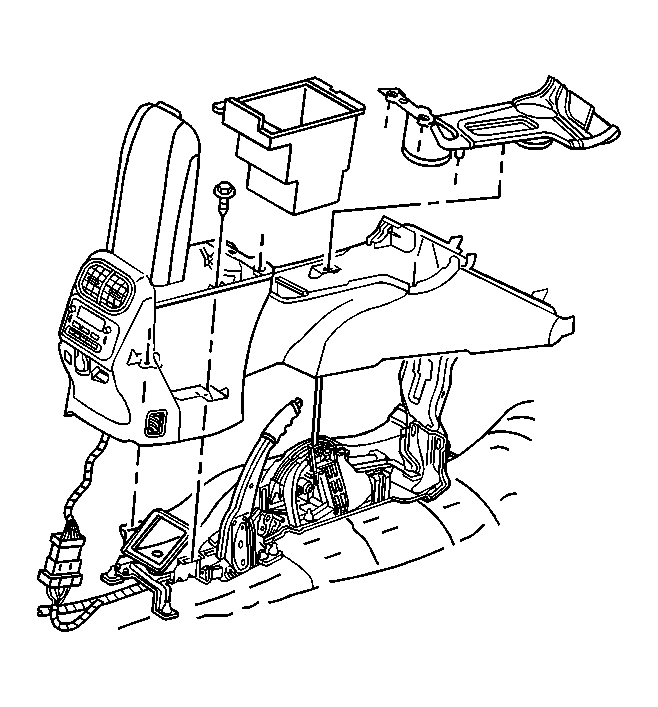

    Fig 1: Removing/Installing Center Console Assembly & Retaining Screws
    GM741613Courtesy of GENERAL MOTORS CORP.
  7. Adjust the parking brake to the full-up, or fully engaged position.
  8. Release the 2 forward trim extensions ears attached to the lower IP-Oldsmobile only.
  9. Slide the console rearward and raise the rear of the console in order to expose the electrical connectors.
  10. Disconnect the electrical connectors as necessary.
  11. Adjust the parking brake to approximately the halfway position.
  12. Remove the center console from the vehicle.
  13. If replacing the floor console base, remove the following and retain for transfer:
    1. Remove the HVAC control module (if equipped).
    2. Remove the armrest.
    3. Remove the HVAC module and duct assembly.
    4. Remove the cupholder.
    5. Remove the HVAC upper duct.
