Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 screws that retain the insulator panel to the instrument panel (IP).

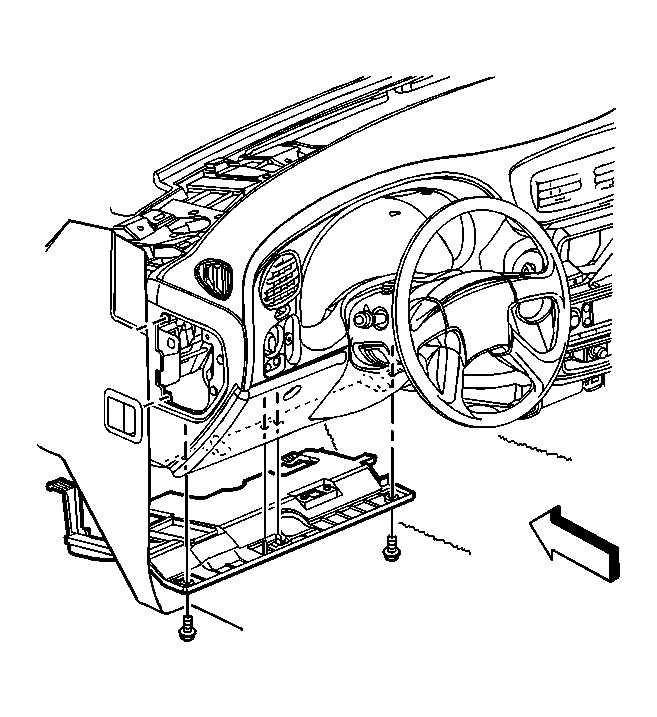

    Fig 1: Removing/Installing Closeout/Insulator Panel - Left
    GM712800Courtesy of GENERAL MOTORS CORP.
  2. Release the insulator panel retaining clip from the IP substrate.
  3. Lower the insulator panel.
  4. Remove the 2 data link connector (DLC) retaining screws.
    Fig 2: View Of Data Link Connector (DLC) & Retaining Screws
    GM763321Courtesy of GENERAL MOTORS CORP.
  5. Remove the DLC from the insulator panel.
  6. Remove the courtesy lamp from the insulator panel. Refer to COURTESY LAMP REPLACEMENT - INSTRUMENT PANEL in Lighting Systems.
  7. Remove the splice pack from the insulator panel.
  8. Remove the hazard and turn signal flasher from the insulator panel. Refer to HAZARD AND TURN SIGNAL FLASHER REPLACEMENT in Lighting Systems.
  9. Remove the insulator panel from the IP.
