Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console. Refer to Console Replacement .
  2. Remove the 4 screws that retain the closeout panel to the instrument panel (IP) substrate.
  3. Remove the closeout panel from the vehicle.

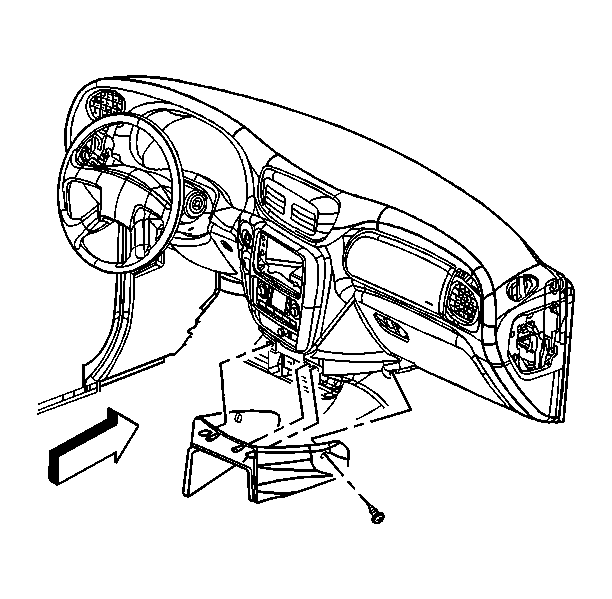

    Fig 1: Removing/Installing Closeout Panel & Retaining Screws
    GM718760Courtesy of GENERAL MOTORS CORP.
