Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the floor shift control. Refer to FLOOR SHIFT CONTROL ASSEMBLY .
  2. Install the console bracket to the vehicle.

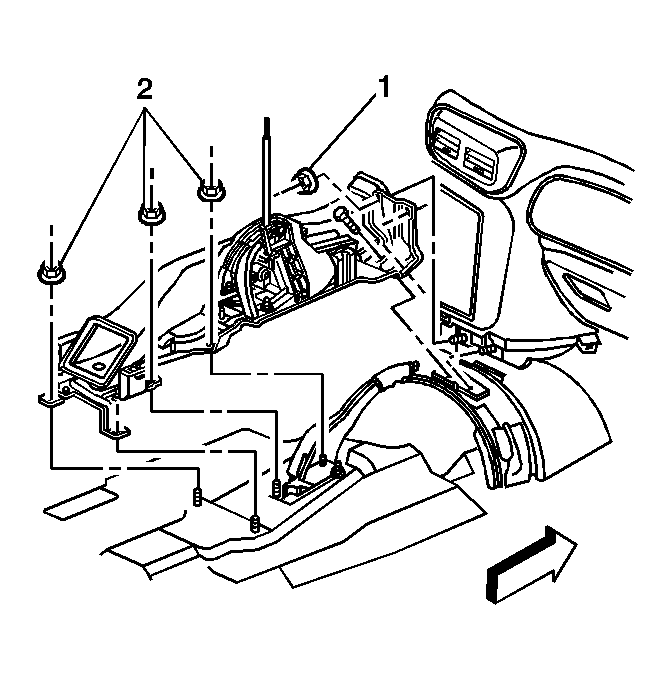

    3. Fig 1: Identifying Console Floor Bracket
    GM741605Courtesy of GENERAL MOTORS CORP.
  3. Loosely install all the fasteners that retain the console bracket to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the retaining nuts (1) to the center IP bracket.

    Tighten:  Tighten nuts to 10 N.m (88 lb in).

  5. Install the remaining fasteners that retain the console bracket to the vehicle.

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

  6. Connect the electrical connector to the park brake.
  7. Connect the electrical connector to the automatic transmission shift interlock solenoid.
  8. Connect the automatic transmission range selector cable. Refer to FLOOR SHIFT CONTROL CABLE .
  9. Install the center console. Refer to Console Replacement .
  10. Install the floor shift control knob. Refer to FLOOR SHIFT KNOB .
  11. Remove the wheel blocks from the vehicle.
