Instrument Panel, Gages, and Console Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

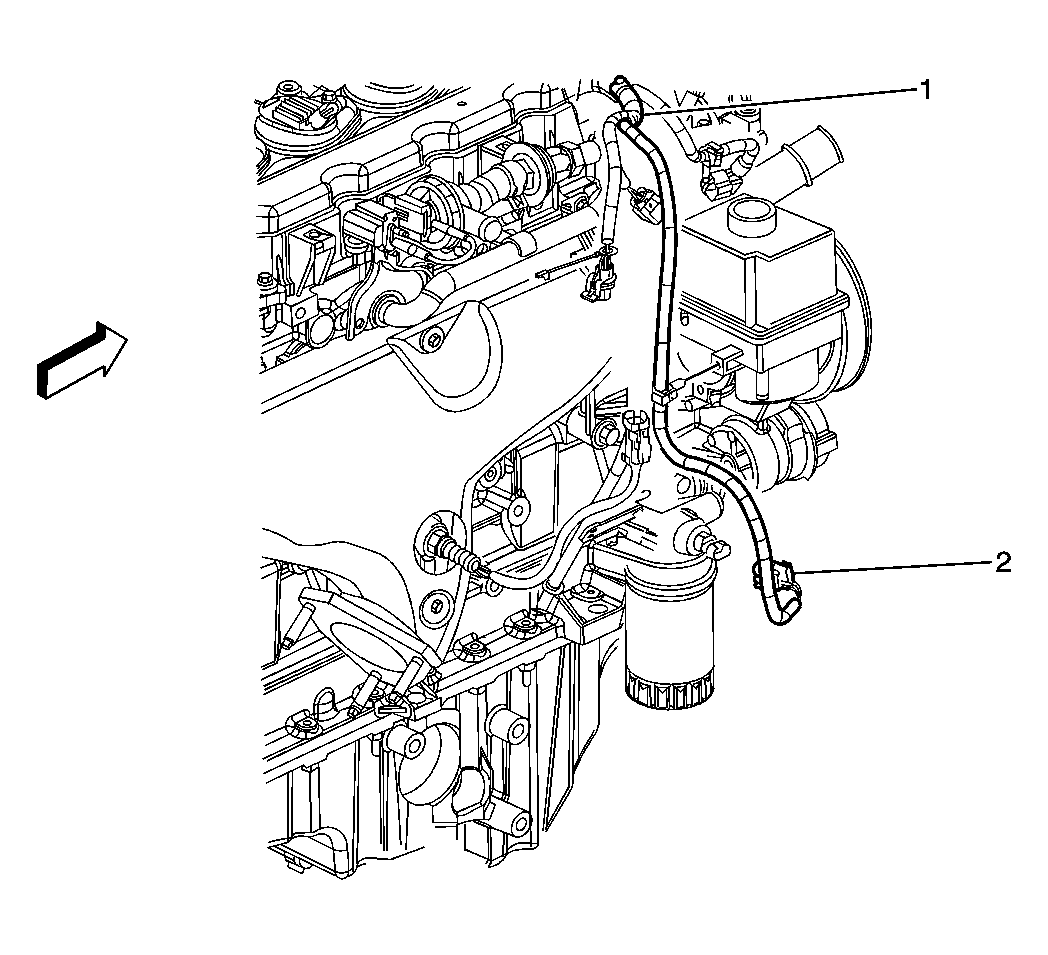

Fig 1: Engine Component View, Right Front
GM748826Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness, Right Front
2 Engine Oil Pressure (EOP) Sensor Connector
3 Engine Oil Level and Temperature Sensor Connector

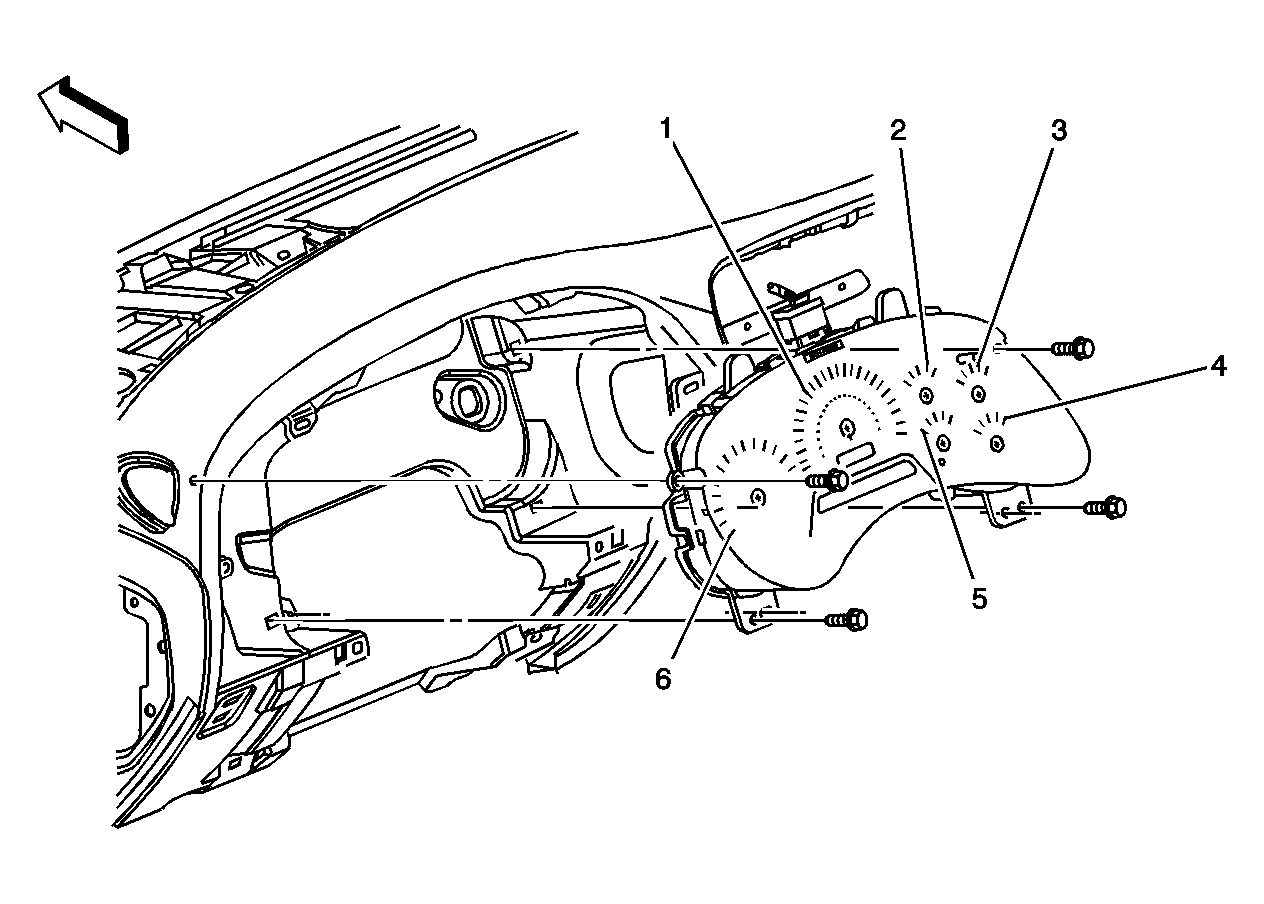

Fig 2: I/P Cluster Component View
GM749891Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speedometer
2 Engine Oil Pressure Gage
3 Voltmeter
4 Coolant Temperature Gage
5 Fuel Gage
6 Tachometer

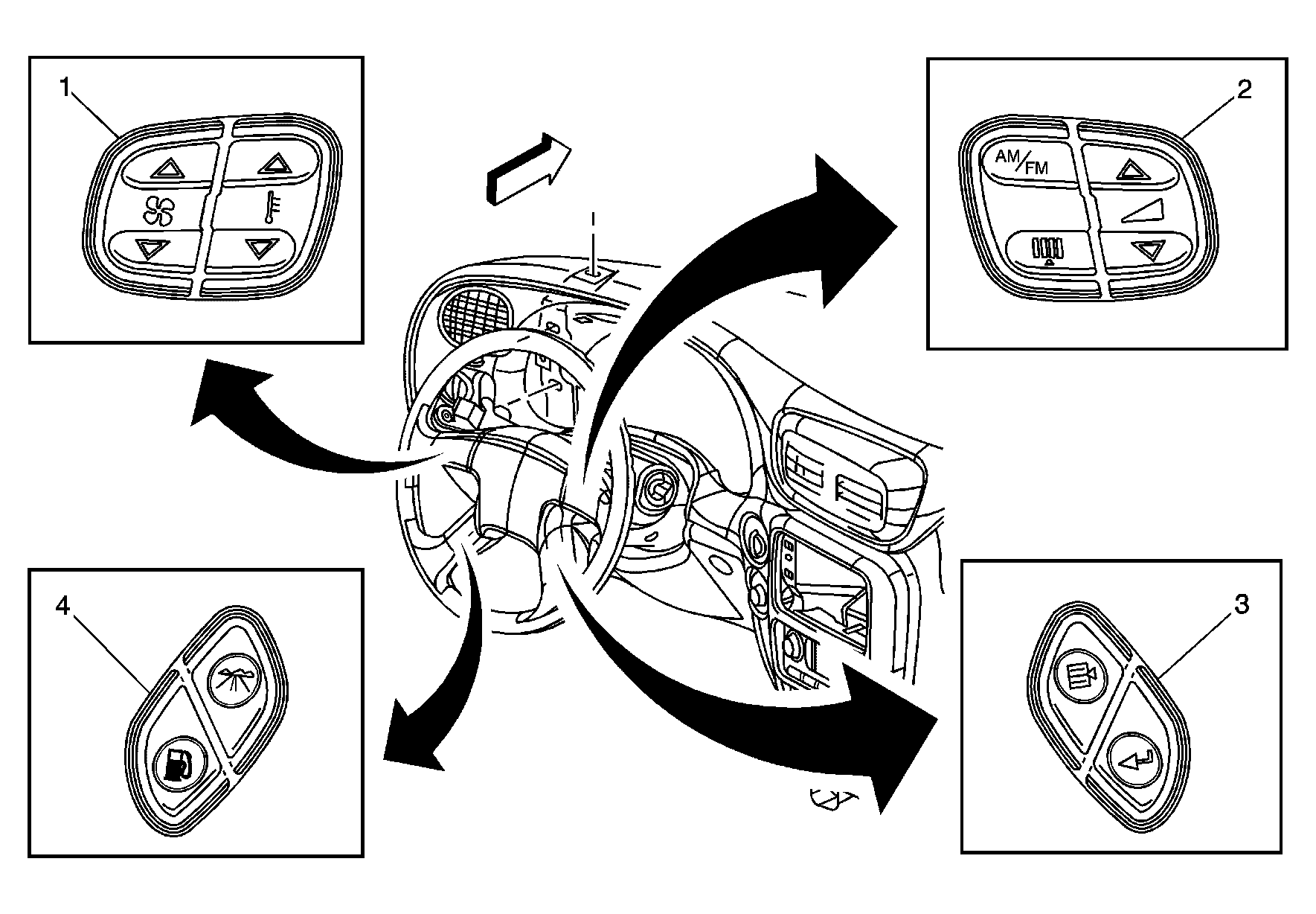

Fig 3: Steering Wheel Controls Component View
GM894975Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fan/Temperature Switch
2 Volume/AM/FM Switch
3 Select/Personalization Switch
4 Fuel/Trip Switch
