Exhaust Manifold Installation - Right

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Exhaust Manifold Gasket & Exhaust Manifold
    GM639833Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:
    • Tighten the exhaust manifold bolts as specified in the service procedure. Improperly installed and/or leaking exhaust manifold gaskets may effect vehicle emissions and/or On-Board Diagnostics (OBD) II system performance.
    • The cylinder head exhaust manifold bolt hole threads must be clean and free of debris or threadlocking material.
  1. Apply a 5 mm (0.2 in) wide band of threadlock GM P/N 12345493 (Canadian P/N 10953488) or equivalent to the threads of the exhaust manifold bolts.
  2. Install the exhaust manifold gasket and exhaust manifold.
  3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the exhaust manifold bolts.

    Tighten:

    1. Tighten the exhaust manifold bolts first pass to 15 N.m (11 lb ft). Tighten the exhaust manifold bolts beginning with the center 2 bolts. Alternate from side-to-side, and work toward the outside bolts.
    2. Tighten the exhaust manifold bolts final pass to 25 N.m (18 lb ft). Tighten the exhaust manifold bolts beginning with the center 2 bolts. Alternate from side-to-side, and work toward the outside bolts.

  5. Using a flat punch, bend over the exposed edge of the exhaust manifold gasket at the front of the right cylinder head.
  6. Install the exhaust manifold heat shield and bolts, if required.

    Tighten:  Tighten the heat shield bolts to 9 N.m (80 lb in).

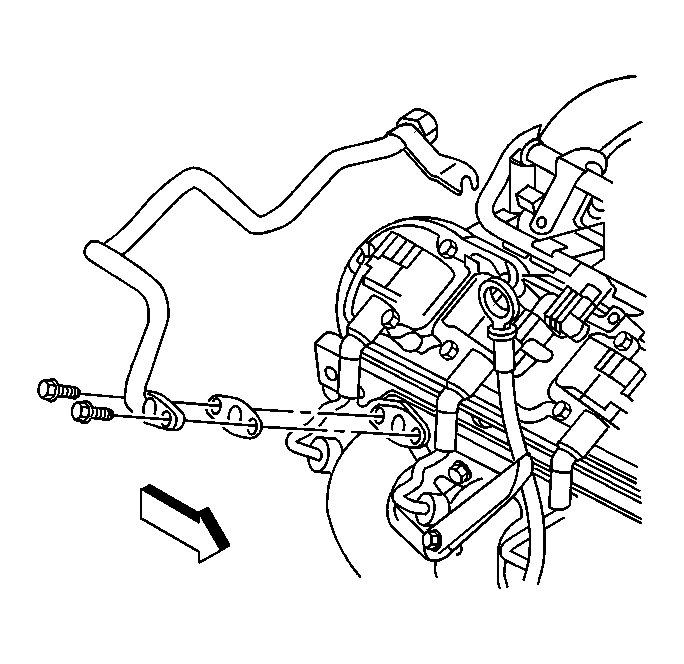

  7. Fig 2: Air Pipe, Check Valve, Gasket & Bolts
    GM363591Courtesy of GENERAL MOTORS CORP.
  8. Install the air injection reaction (AIR) pipe, with check valve, NEW gasket, and bolts.
  9. Fig 3: AIR Tube Bolt To Left Rear Cylinder Head
    GM63229Courtesy of GENERAL MOTORS CORP.
  10. Install the AIR tube bolt to the left rear cylinder head.

    Tighten:

    1. Tighten the AIR pipe to exhaust manifold bolts to 20 N.m (15 lb ft).
    2. Tighten the AIR pipe to left cylinder head bolt to 20 N.m (15 lb ft).

  11. Install the oxygen sensor into the intake manifold.

    Tighten:  Tighten the oxygen sensor to 42 N.m (30 lb ft).
