Clutch Pilot Bearing Installation

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 38836 Pilot Bushing Installer/Clutch

Fig 1: 5/8 Inch Washer, Pilot Bearing & J 38836

Courtesy of GENERAL MOTORS CORP.

Install a 5/8 inch washer (1) onto the J 38836 or equivalent.
The washer serves as a stop against the crankshaft face and will assist in installing the bearing to the proper depth.
Install the new pilot bearing (2) onto the tool.

Fig 2: J 38836 & Pilot Bearing

Courtesy of GENERAL MOTORS CORP.

Install the new pilot bearing into the crankshaft using the J 38836 .

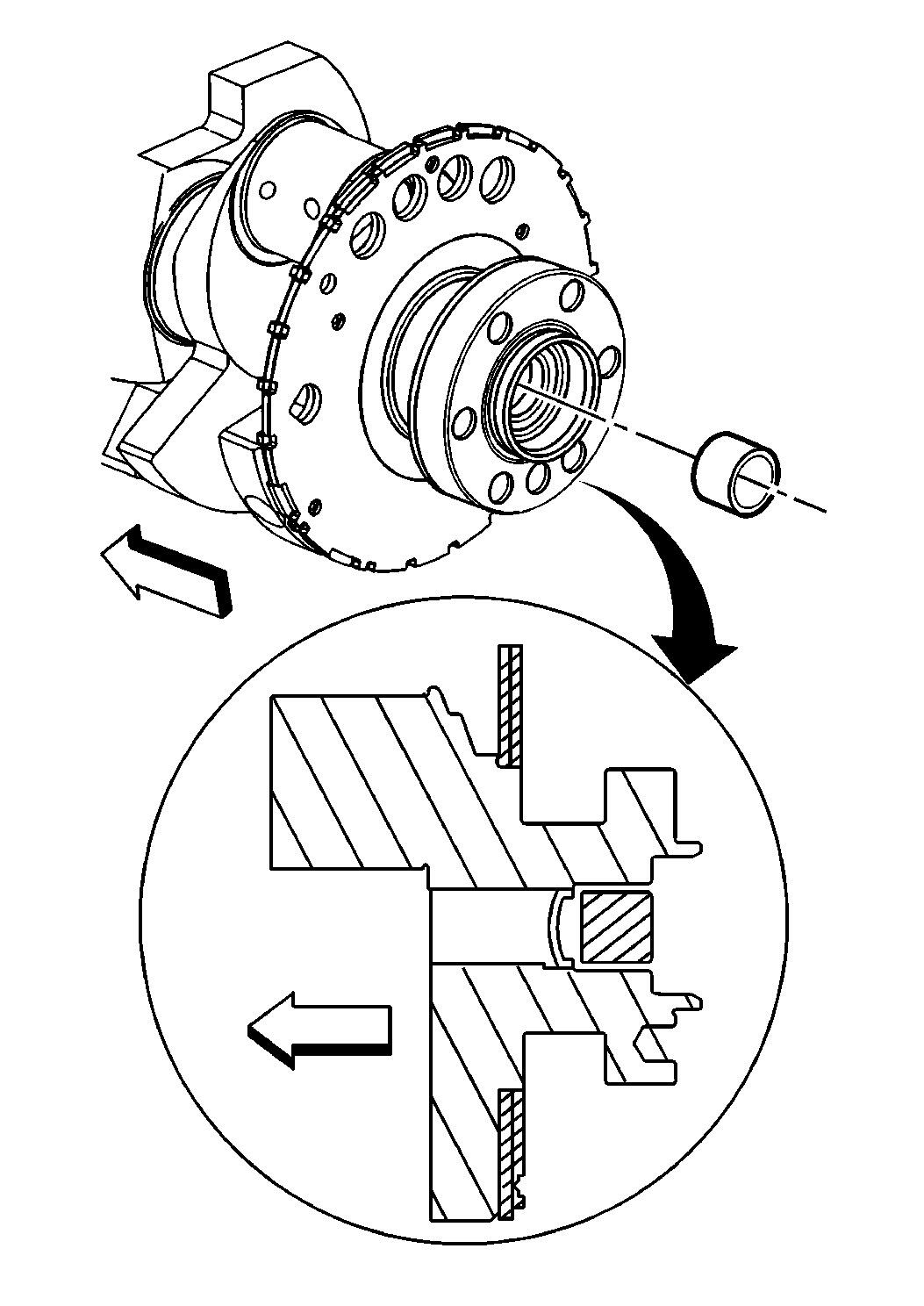

Fig 3: Clutch Pilot Bearing & Rear Face Of Crankshaft

Courtesy of GENERAL MOTORS CORP.

Inspect the clutch pilot bearing for proper installation.
A properly installed clutch pilot bearing will be installed until flush to the rear face of the crankshaft.
