Removal Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

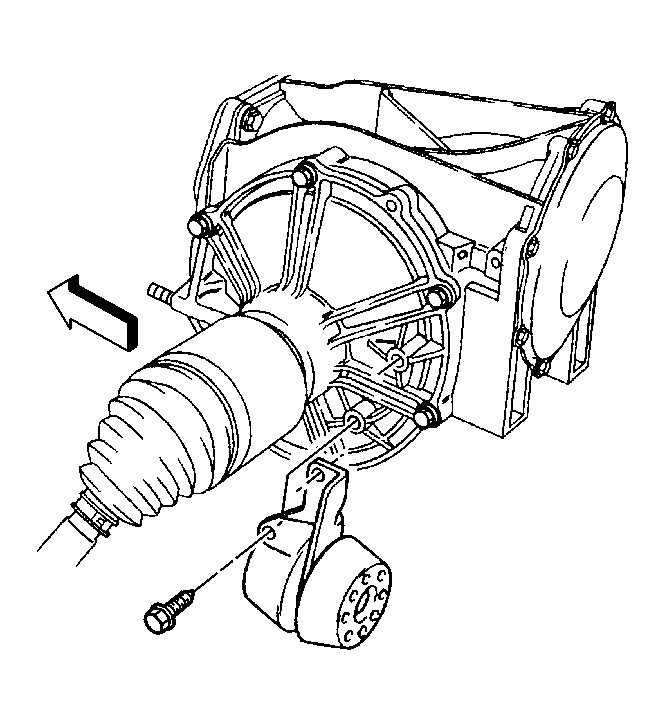

    Fig 1: Differential Cover, Damper/Tuned Absorber & Bolts
    GM71503Courtesy of GENERAL MOTORS CORP.
  1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the LH rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  3. Remove the damper/tuned absorber mounting bolts.
  4. Remove the damper/tuned absorber.
