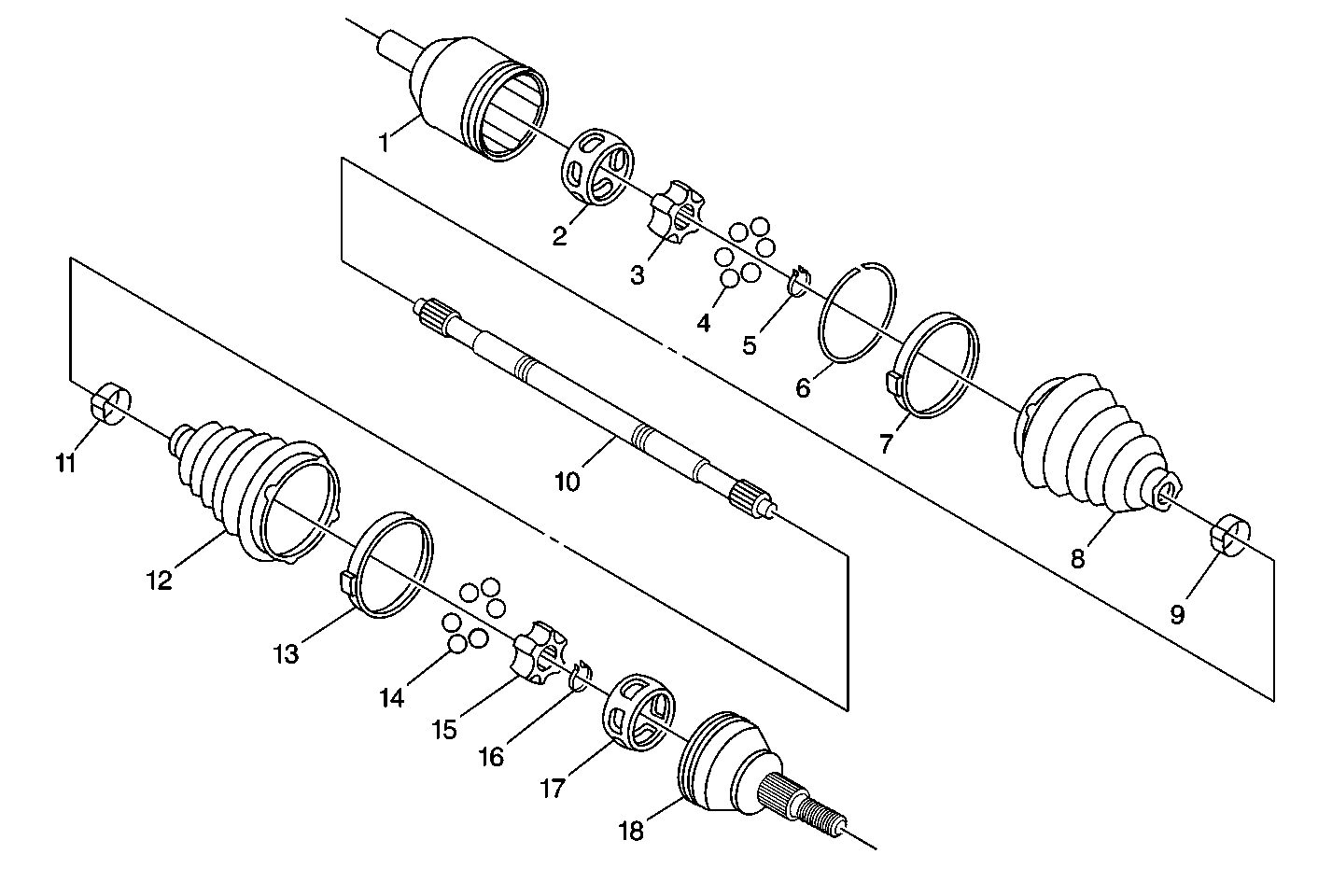

Wheel Drive Shafts Disassembled Views
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Inner Joint Outer Race |
| 2 | Inner Joint Cage |
| 3 | Inner Joint Inner Race |
| 4 | Ball Bearings |
| 5 | Inner Joint Inner Race Retaining Snap Ring |
| 6 | Inner Joint Outer Race Retaining Ring |
| 7 | Inner Joint Large Seal Clamp |
| 8 | Inner Joint Seal |
| 9 | Inner Joint Small Seal Clamp |
| 10 | Axle Shaft |
| 11 | Outer Joint Small Seal Clamp |
| 12 | Outer Joint Seal |
| 13 | Outer Joint Large Seal Clamp |
| 14 | Ball Bearings |
| 15 | Outer Joint Inner Race |
| 16 | Outer Joint Retaining Ring |
| 17 | Outer Joint Cage |
| 18 | Outer Joint Outer Race |
