Disassembly Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

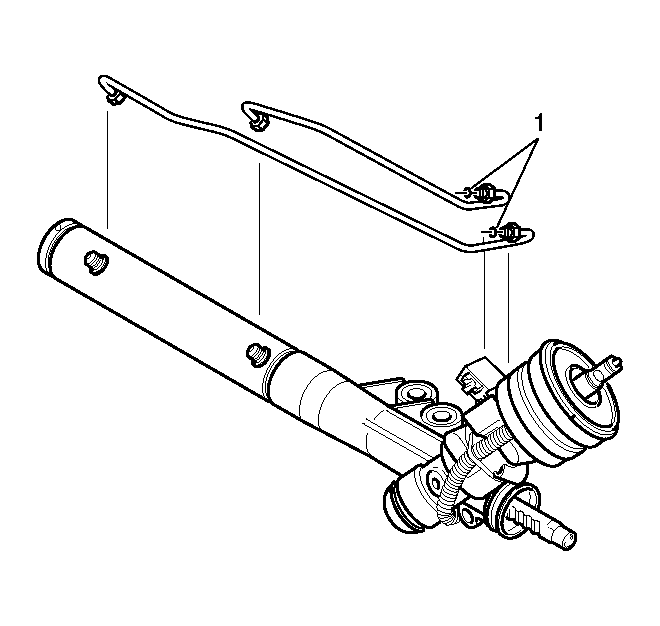

Fig 1: Cylinder Line Fittings & Gear Assembly

Courtesy of GENERAL MOTORS CORP.

Loosen both cylinder line fittings (1) on the cylinder end of the gear assembly.
Loosen both fittings on the cylinder line assemblies (3) at the valve end of the gear assembly.

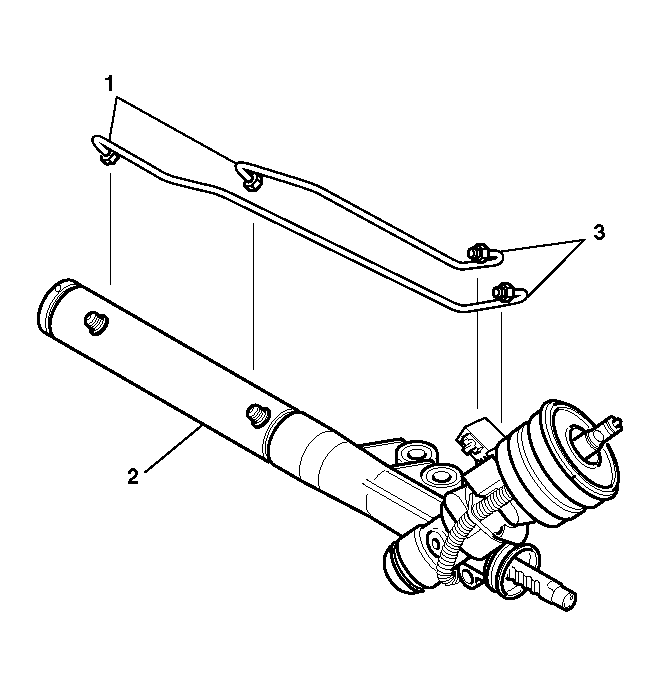

Fig 2: View Of Cylinder Line Assemblies & Rack & Pinion Gear Assembly

Courtesy of GENERAL MOTORS CORP.

Remove both cylinder line assemblies (1) from the rack and pinion gear assembly (2).

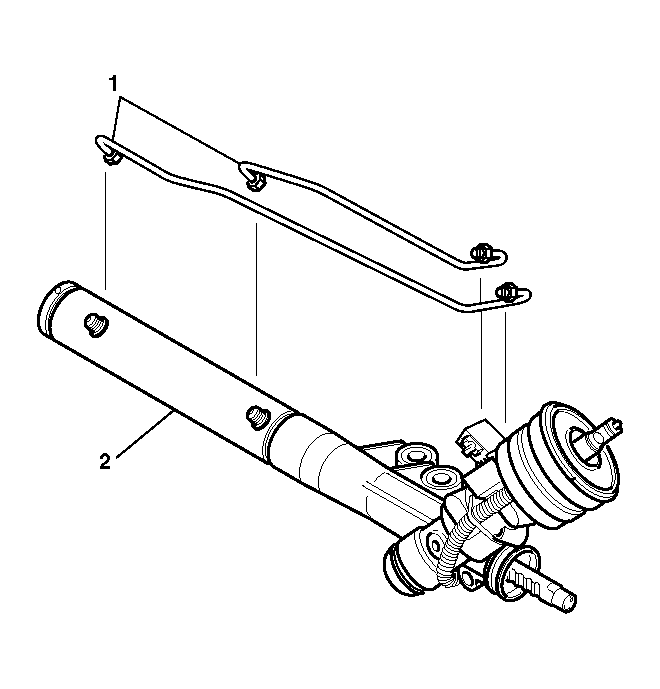

Fig 3: View Of Steering Fittings At Rack

Courtesy of GENERAL MOTORS CORP.

Remove the O-ring seals (1) from the valve end of line.
Discard the O-ring seals (1).
