Disassembly Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Inner Tie Rod Assembly Jam Nut

Courtesy of GENERAL MOTORS CORP.

To remove the outer tie rod; refer to Rack and Pinion Outer Tie Rod End Replacement .
Remove the hex jam nut (2) from the inner tie rod assembly (1).

Fig 2: View Of Tie Rod End Clamp, Rack & Pinion Boot

Courtesy of GENERAL MOTORS CORP.

Remove the tie rod end clamp (2) from the rack and pinion boot (1).

Fig 3: View Of Inner Tie Rod Boot Clamp

Courtesy of GENERAL MOTORS CORP.

Remove the boot clamp (1) from the rack and pinion boot with side cutters.
Discard the boot clamp (1).

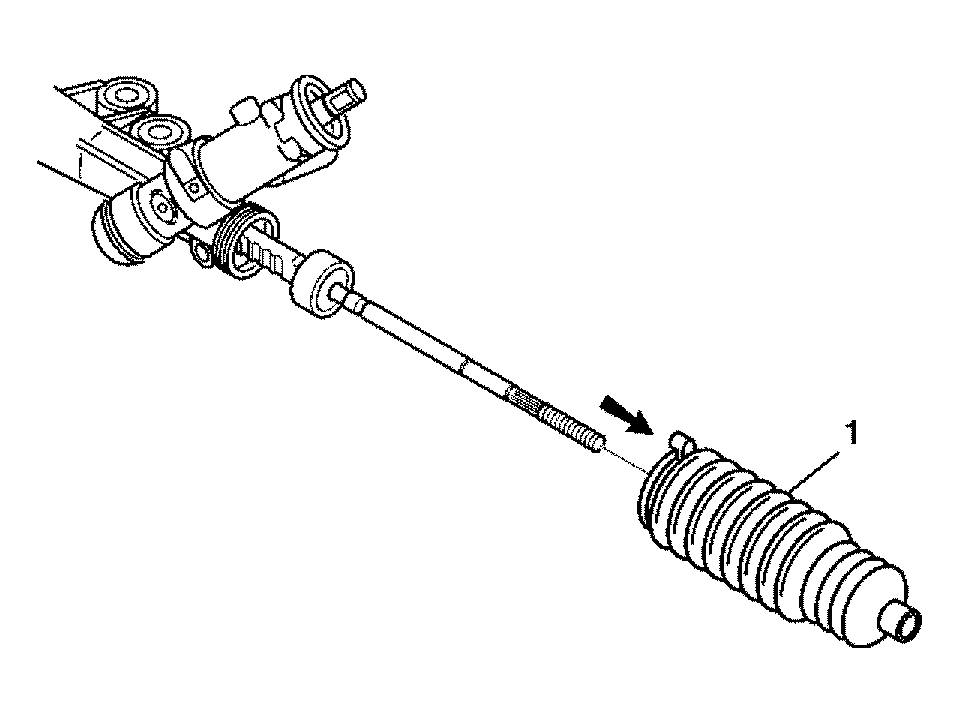

Fig 4: Pinion Gear Assembly, Rack & Pinion Boot

Courtesy of GENERAL MOTORS CORP.

Remove the rack and pinion boot (1) from the rack and pinion gear assembly.
